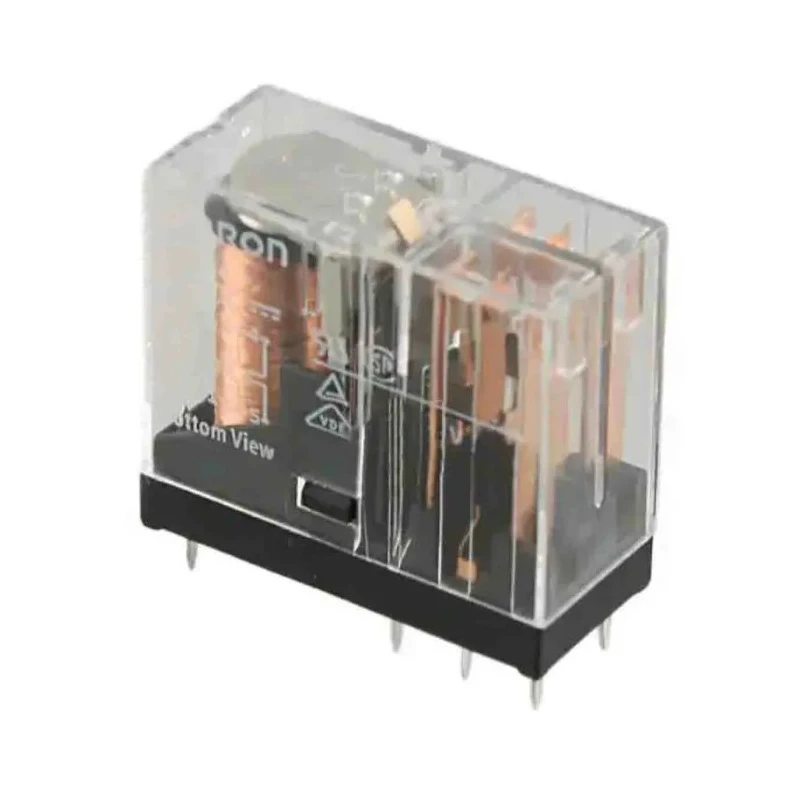

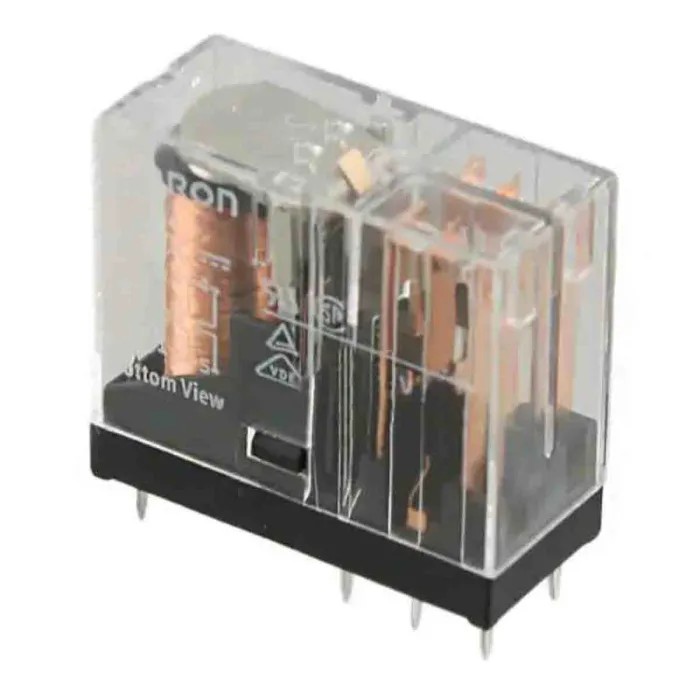

Omron PCB Power Relay, 12V AC Coil, 5A Switching Current, DPDT, PCB Mount, Silver Alloy Contact G2R-2 AC12
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Omron |
| Height | 29.5mm |
| Length | 29mm |
| Model | G2R-2 AC12 |
| Width | 13mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G2R |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 5A |
| Terminal type | PCB Pin |
| Contact Resistance | 50mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 65Ω |
| Coil Voltage | 12V ac |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 380V ac |
| Coil Power | 900mW |
Key Features
- Designed for PCB mounting with PCB pin terminals for easy installation.
- Supports switching voltages up to 380V AC and 125V DC for versatile applications.
- Durable silver alloy contacts provide reliable conductivity and long service life.
- Operates reliably between -40°C and 70°C operating temperature range.
- Compact dimensions of 29.5mm height, 29mm length, and 13mm width enable space-efficient PCB designs.
- Coil resistance is 65Ω with low coil power consumption of 900mW.
- Contact resistance remains low at 50mΩ ensuring minimal signal loss.
- Complies with RoHS standards ensuring environmentally friendly manufacture.
Product Description
Omron G2R-2 AC12 PCB Power Relay is a high-quality power relay designed for printed circuit board mounting applications. Featuring a 12V AC coil and double-pole double-throw (DPDT) contact configuration, it supports switching currents up to 5A and switching voltages up to 380V AC and 125V DC. The relay is engineered to operate reliably within a temperature range from -40°C to 70°C, making it suitable for varied industrial environments.
Its compact form factor with dimensions of 29.5mm in height, 29mm length, and 13mm width fits efficiently into space-constrained PCB assemblies. The silver alloy contacts provide excellent conductivity and durability, paired with low contact resistance at 50mΩ to ensure effective electrical performance. The relay’s coil resistance of 65Ω and low coil power consumption of 900mW reduce energy usage while maintaining strong actuation capability.
Designed to meet RoHS compliance, this relay is environmentally conscious and manufactured in Indonesia under strict quality protocols. It is ideally suited for applications in industrial automation, electrical control systems, HVAC, manufacturing equipment, and other commercial uses requiring reliable contact switching and long operational life.
Durable silver alloy contacts minimize wear and signal loss. PCB mounting with pin terminals allows integration into automated circuit boards. Wide temperature tolerance enhances operational flexibility. Low coil power consumption supports energy-efficient designs.
Compact size suits high-density PCB layouts. RoHS compliant for eco-friendly manufacturing and disposal.
Choose the Omron G2R-2 AC12 PCB Power Relay for dependable switching performance in demanding electrical and automation applications. Browse EnvMart’s Electronics & Electricals Relays category for more high-quality components and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current for this model is 5A.
This relay has dimensions of 29.5mm in height, 29mm in length, and 13mm in width.
The coil voltage for this relay is 12V AC.
The contact configuration of this relay is double-pole double-throw (DPDT).
It operates reliably within a temperature range of -40°C to 70°C.
This relay is designed for PCB mounting and features PCB pin terminals for easy installation.
The contacts are made of silver alloy, which provides reliable conductivity.
It supports maximum switching voltages of 380V AC and 125V DC.
The coil resistance of this relay is 65Ω.
The contact resistance is low at 50mΩ, ensuring minimal signal loss.
The coil power consumption is 900mW, which helps reduce energy usage.
Yes, the G2R-2 AC12 relay complies with RoHS standards, ensuring environmentally friendly manufacture.
