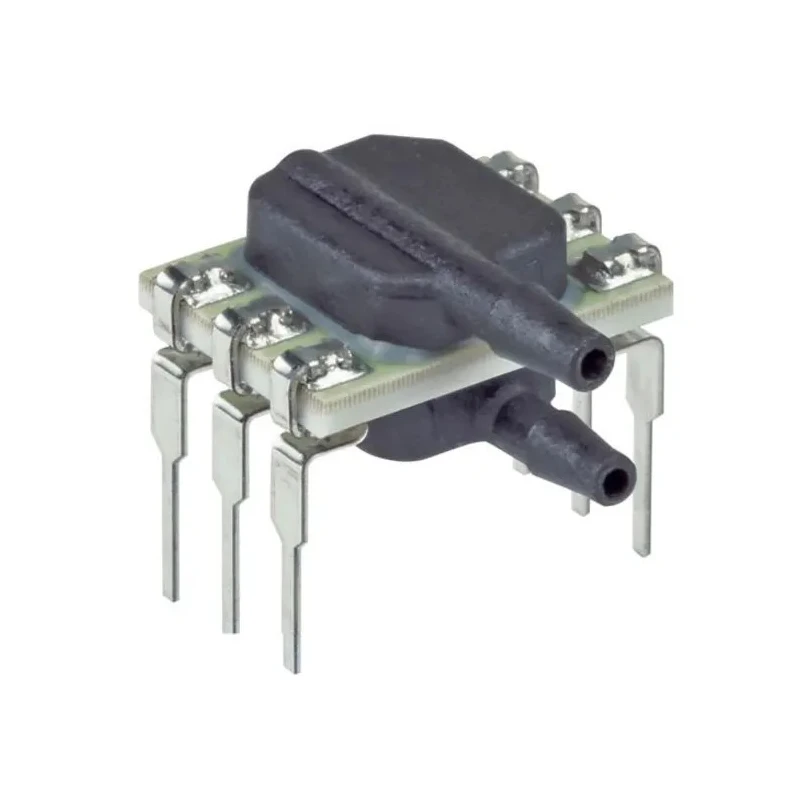

Honeywell Technologies Piezoresistive Pressure Sensor Board SMT 6-Pin Dual Radial Barbed ±0.25% Accuracy 5V ABPMRRV001PD2A3
Specifications
| Country of Origin | China |
|---|---|
| Accuracy | ±0.25 % |
| Brand | Honeywell |
| Maximum Operating Pressure | 6.9 kPa |
| Height | 10.63mm |
| Length | 7.3mm |
| Model | ABPMRRV001PD2A3 |
| Sensor Type | Piezoresistive Pressure Sensor |
| Width | 6.3mm |
| Mount Type | Board |
| Series | ABP |
| Maximum Operating Temperature | +85°C |
| Port Type | Dual Radial Barbed |
| Package Type | SMT |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | BPA Free, LFGB, NSF-169 |
| Pin Count | 6 |
| Automotive Standard | ISO 9001 |
| Maximum Supply Voltage | 5V |
| Minimum Supply Voltage | -0.3V |
| Minimum Operating Pressure | 1psi |
| Maximum Overload Pressure | 206kPa |
Key Features
- The sensor is board mounted with a 6-pin SMT package.
- Dual radial barbed ports enable reliable pressure input connections.
- Maximum operating temperature up to 85°C ensures stable performance in various environments.
- The sensor has a maximum overload pressure rating of 206 kPa for durability.
- Ideal for medical ventilators, HVAC air-pressure monitoring, and pneumatic controls.
- Offers ratiometric analogue or 12-bit digital output with update rates up to 2 kHz.
- Supports use with dry gases or non-corrosive liquids with optional gel coating.
- Includes on-board compensation and calibration for accurate reading over temperature ranges.
Product Description
Honeywell Technologies ABPMRRV001PD2A3 is a high-precision piezoresistive pressure sensor board designed for electronic systems requiring accurate differential pressure measurement up to 6.9 kPa with a maximum overload pressure of 206 kPa. This SMT-mounted device features a 6-pin configuration and dual radial barbed ports for secure connection of pressure media. It operates on a maximum supply voltage of 5V and maintains ±0.25% accuracy, delivering reliable measurements critical in industrial, laboratory, HVAC, medical, and pneumatic control applications.
The sensor supports ratiometric analogue or 12-bit digital outputs with high-speed update rates reaching 2 kHz for responsive monitoring. It offers onboard temperature compensation and calibration, ensuring stable performance across a temperature range from -40°C to +85°C. The device is suitable for dry gases and, with an optional gel coating, non-corrosive liquids, broadening its practical usability including medical ventilators, CPAP machines, HVAC air pressure systems, coffee makers, and washing machine controls.
Compact board dimensions of 10.63mm height, 7.3mm length, and 6.3mm width facilitate integration into various circuit designs. Manufactured in China, the product meets recognized standards including BPA Free, LFGB, NSF-169, and ISO 9001 automotive quality standards.
The sensor is board mounted with a 6-pin SMT package. Offers ±0.25% accuracy for high-resolution measurements. Maximum operating temperature is +85°C. Dual radial barbed port configuration. Maximum pressure rating of 6.9 kPa and overload of 206 kPa.
Supports analogue and digital outputs including I2C and SPI. Temperature compensation and calibration onboard. Applications include medical ventilators, HVAC systems, and pneumatic control. Complies with BPA Free, LFGB, NSF-169, and ISO 9001 standards.
Compact package supports PCB integration.
This Honeywell ABPMRRV001PD2A3 pressure sensor board is a robust choice for precise pressure sensing in demanding industrial, medical, HVAC, and laboratory environments. Explore more electronic sensors and components in the Electronics & Electricals category at EnvMart.
Explore more products in our Pressure Sensor IC category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Honeywell ABPMRRV001PD2A3 pressure sensor has a measurement range with a maximum operating pressure of 6.9 kPa and a minimum operating pressure of 1 psi.
This model maintains an accuracy of ±0.25%, ensuring reliable measurements in various applications.
It offers both ratiometric analogue and 12-bit digital outputs, including support for I2C and SPI communication protocols.
The maximum operating temperature for this sensor is +85°C, allowing it to function effectively in various environments.
The sensor board has dimensions of 10.63mm in height, 7.3mm in length, and 6.3mm in width, facilitating easy integration into circuit designs.
This sensor utilizes a board mounting type, designed for easy integration into electronic systems.
The sensor operates with a maximum supply voltage of 5V and a minimum supply voltage of -0.3V.
The maximum overload pressure rating for this sensor is 206 kPa, ensuring durability under high pressure conditions.
This sensor is suitable for applications such as medical ventilators, HVAC air-pressure monitoring, and pneumatic controls.
The sensor complies with standards including BPA Free, LFGB, NSF-169, and ISO 9001, ensuring it meets recognized safety and quality criteria.
It supports the use of dry gases and non-corrosive liquids, especially when an optional gel coating is applied.
Yes, this model includes onboard temperature compensation and calibration for accurate readings across its operating temperature range.
