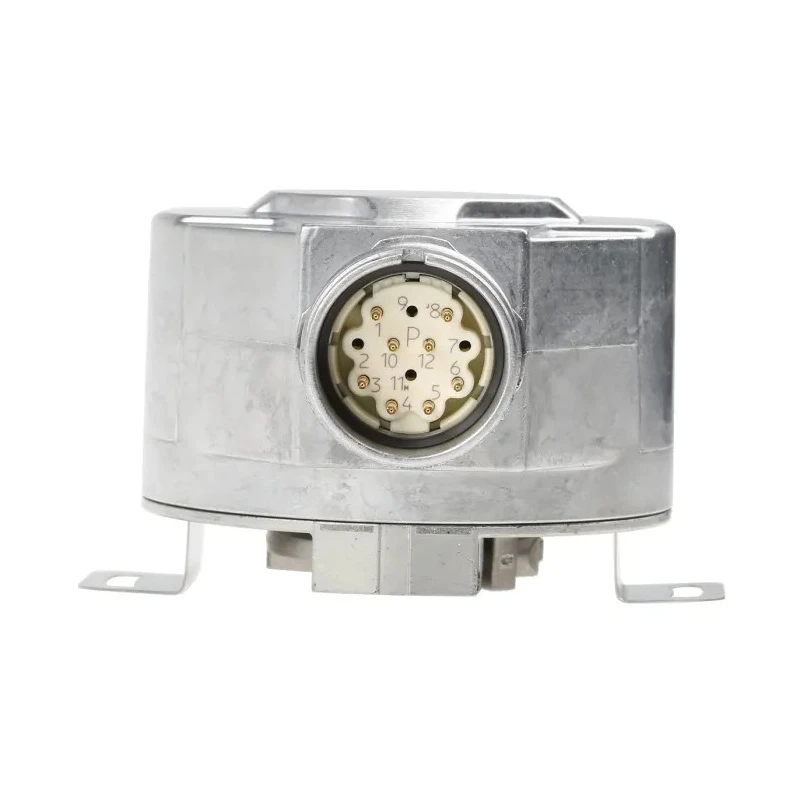

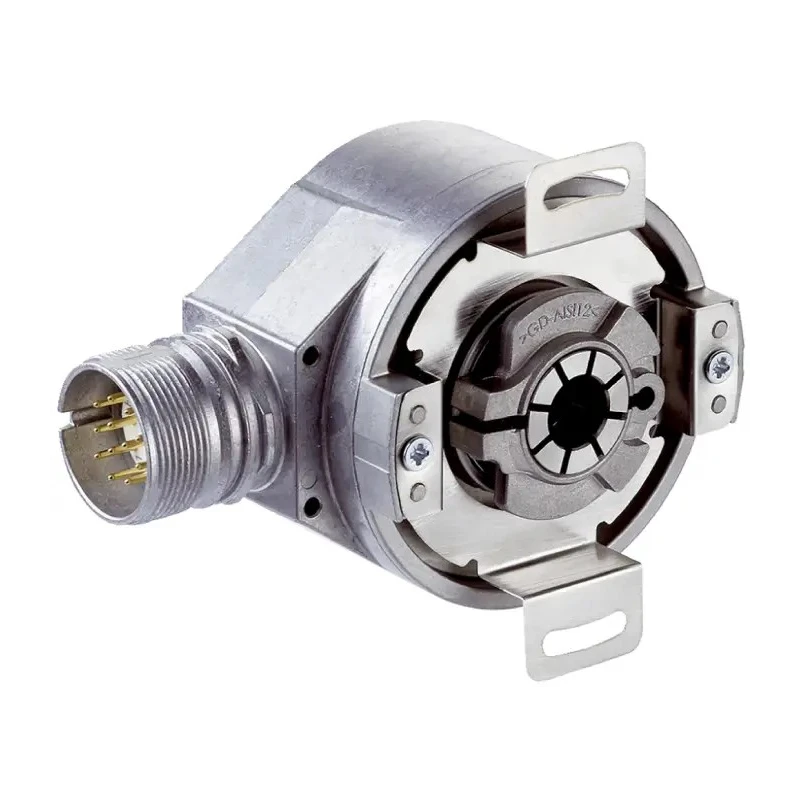

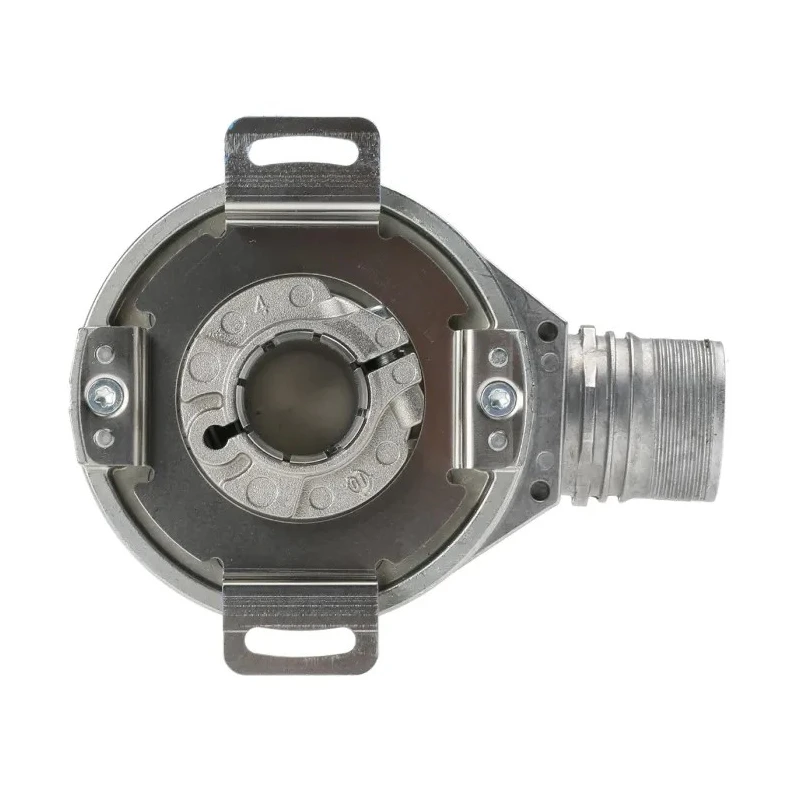

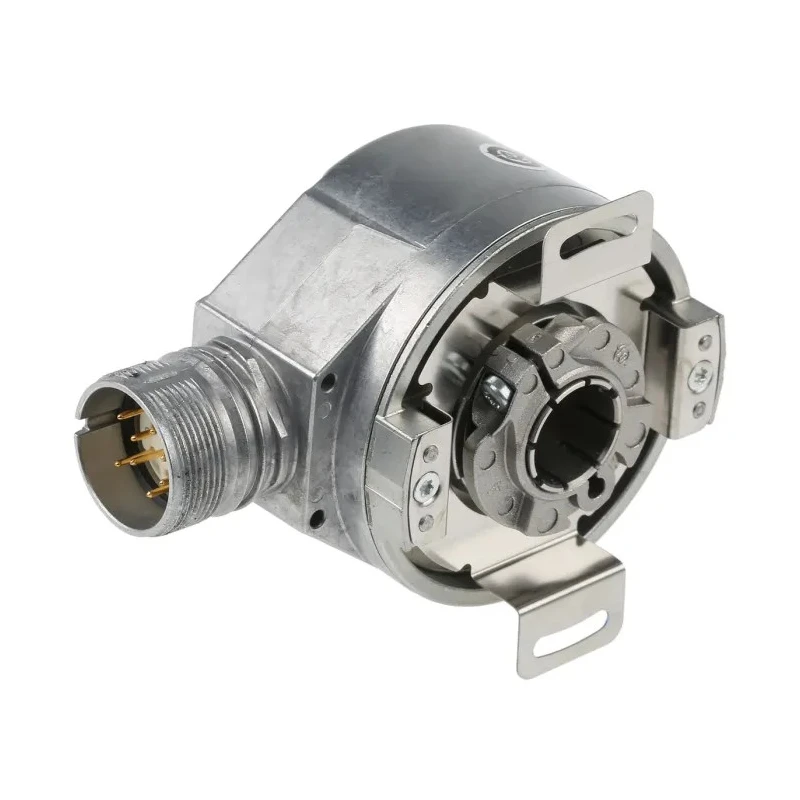

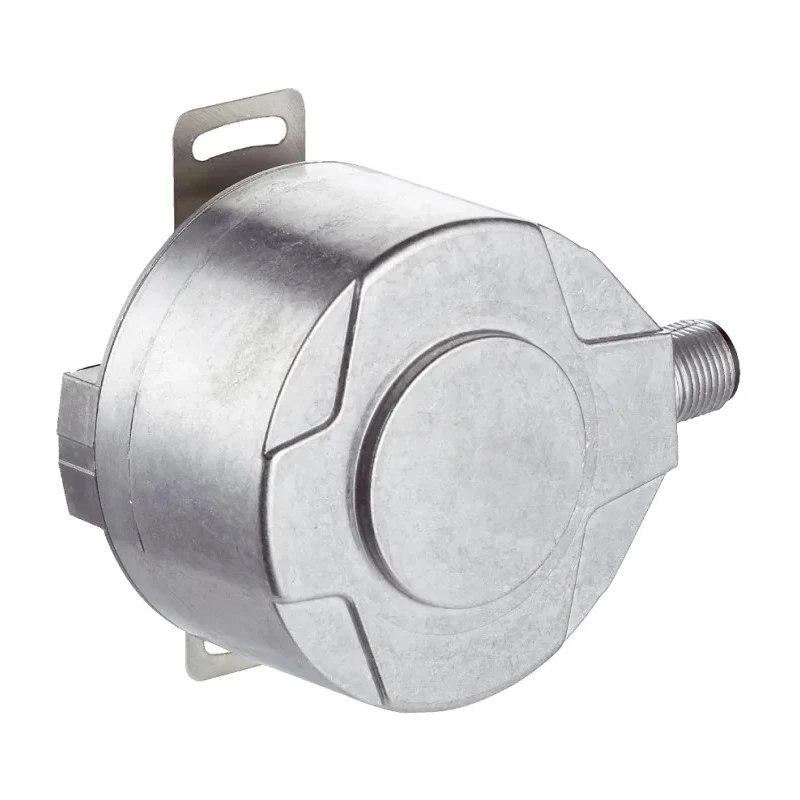

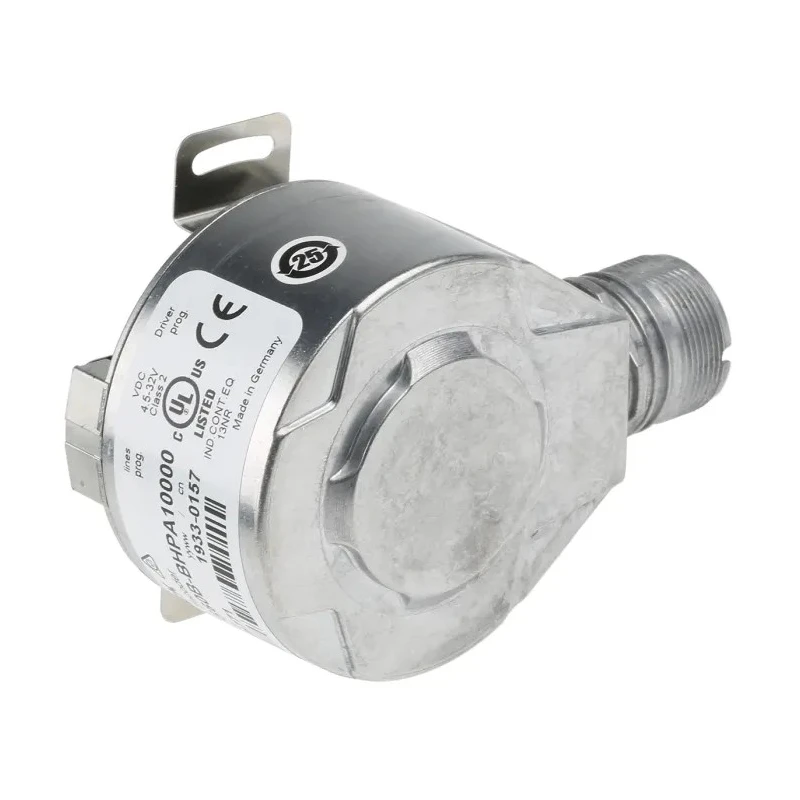

Sick DFS60 Series Incremental Encoder 32V DC, 10000 Pulses Per Revolution, Hollow Shaft 15mm, TTL DFS60B-BHPA10000 / 1036771
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Sick |
| Model | DFS60B-BHPA10000 / 1036771 |
| IP Rating | IP67, IP65 |
| Mount Type | Flange |
| Series | DFS60 |
| Overall Width | 60mm |
| Maximum Operating Temperature | 100°C |
| Minimum Operating Temperature | -40°C |
| Shaft Diameter | 15mm |
| Overall height | 45.5mm |
| Switching Frequency | 600kHz |
| Shaft Type | Hollow |
| Terminal type | 12-Pin |
| Interface Type | TTL, HTL |
| Pulses per Revolution | 10000ppr |
| Standards/Approvals | CE, cULus |
| Maximum Supply Voltage | 32V dc |
| Overall Depth | 72mm |
| Encoder Technology | Incremental |
| Maximum Revolutions | 6000rpm |
| Output Signal Type | TTL, HTL |
| Sick Incremental Encoder, 8192Pulses ppr, Push Pull Signal, Hollow TypeBrand | Sick |
Key Features
- Provides high-resolution position feedback with 10000 pulses per revolution.
- Features a hollow shaft with 15mm diameter for flexible mounting.
- Supports programmable TTL and HTL output signals for compatibility with various control systems.
- Built to operate between -40°C and 100°C temperature range for harsh environments.
- Equipped with a robust 12-pin M23 connector ensuring secure electrical connections.
- IP65 and IP67 rated for dust and water protection in industrial settings.
- Flange mount type ensures stable and reliable installation.
- Maximum rotational speed supported is 6000 RPM with a switching frequency of up to 600 kHz.
Product Description
Sick DFS60B-BHPA10000 is a high-precision incremental encoder designed for accurate position measurement and motion control in industrial automation. Operating at 32V DC, it delivers 10000 pulses per revolution (PPR), enabling fine resolution feedback. The encoder features a hollow shaft of 15mm diameter, making it adaptable for integration with various mechanical systems.
Built to withstand challenging environments, this encoder operates reliably across a wide temperature range from -40°C to +100°C. Its IP65 and IP67 ingress protection ratings seal it against dust and moisture, ensuring dependable function in industrial and manufacturing settings.
The device outputs programmable TTL and HTL signals, enhancing its compatibility with diverse control architectures. A 12-pin M23 male connector provides firm and easy connectivity. The flange mount type facilitates secure and stable installation.
With compact dimensions (45.5mm height, 60mm width, 72mm depth), it supports a maximum rotational speed of 6000 RPM and a switching frequency reaching 600 kHz. Reverse polarity and short-circuit protections add to its operational reliability.
Applications of this Sick DFS60 encoder include robotics for precision movement control, CNC machinery requiring exact feedback, conveyor speed regulation, and manufacturing equipment for precise positioning tasks. Its high pulse count ensures detailed and responsive automation performance.
Provides high-resolution position feedback with 10000 pulses per revolution. Features a hollow shaft with 15mm diameter for flexible mounting. Supports programmable TTL and HTL output signals for compatibility with various control systems.
Designed for industrial environments with IP65 and IP67 protection ratings. Operates over a wide temperature range from -40°C to 100°C. Equipped with a robust 12-pin M23 connector ensuring secure electrical connections. Flange mount type for stable and reliable installation.
Compact dimensions allow easy integration in constrained spaces. Maximum rotational speed of up to 6000 RPM and switching frequency up to 600 kHz. Explore the range of quality industrial sensors and motion control components offered by top brands like Sick in EnvMart's extensive marketplace.
Explore more products in our Motion Control Sensors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum rotational speed supported by this model is 6000 RPM.
It supports programmable TTL and HTL output signals, making it compatible with various control systems.
The encoder has compact dimensions of 45.5mm in height, 60mm in width, and 72mm in depth.
This encoder features a hollow shaft with a diameter of 15mm.
It operates reliably within a temperature range of -40°C to 100°C.
The switching frequency for this encoder can reach up to 600 kHz.
It has IP65 and IP67 ratings, providing protection against dust and water in industrial settings.
The encoder utilizes a flange mount type for stable and reliable installation.
This encoder provides 10000 pulses per revolution (PPR), enabling high-resolution position feedback.
It is equipped with a robust 12-pin M23 connector for secure electrical connections.
The encoder complies with CE and cULus standards, ensuring it meets specific safety and performance criteria.
