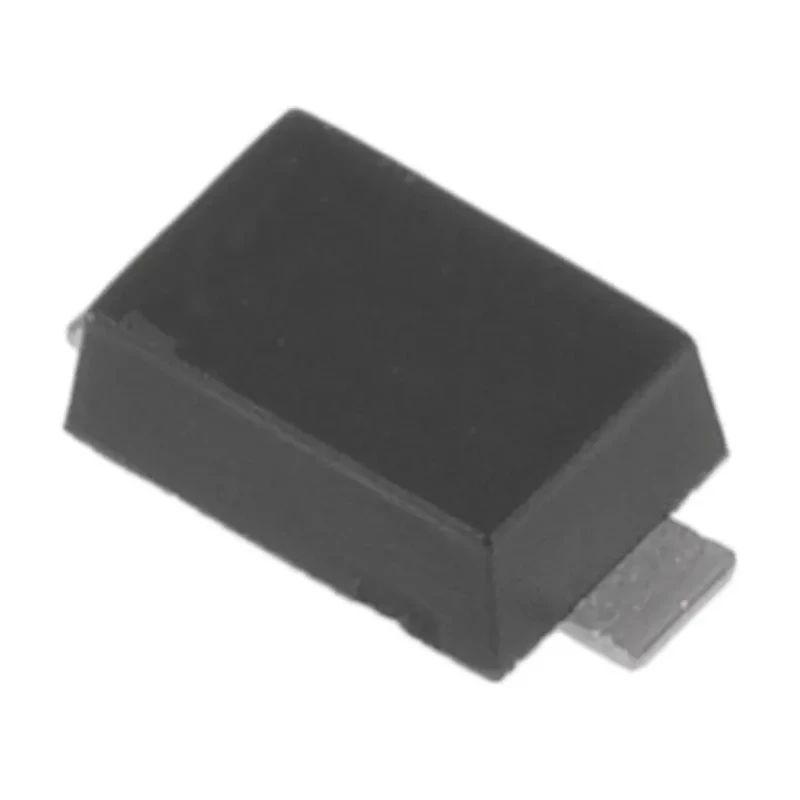

onsemi 4.3 V 500 mW Surface Mount Zener Diode Single Element 2-Pin SOD-123 MMSZ4687T1G

Free Delivery in India | Lowest Global Shipping Charges

onsemi 4.3 V 500 mW Surface Mount Zener Diode Single Element 2-Pin SOD-123 MMSZ4687T1G

Name: onsemi 4.3 V 500 mW Surface Mount Zener Diode Single Element 2-Pin SOD-123 MMSZ4687T1G
Brand: onsemi
SKU: 304000
Price: 0.03 USD
Availability: InStock



Category Zener Diode Brand onsemi Condition New

Specifications

Country of Origin	China
Brand	onsemi
Height	1.35mm
Length	2.84mm
Model	MMSZ4687T1G
Mount Type	Surface
Series	MMSZ4
Maximum Operating Temperature	150°C
Case	Void-free, transfer-molded, therm
Package Type	SOD-123
Minimum Operating Temperature	-55°C
Standards/Approvals	UL 94 V-0, RoHS
Pin Count	2
Number of Elements per Chip	1
Automotive Standard	AEC-Q101
Maximum Power Dissipation Pd	500mW
Diode Configuration	Single
Test Current It	50μA
Maximum Reverse Leakage Current	4μA
Nominal Zener Voltage Vz	4.3V
Zener Type	Voltage Regulator
onsemi 1, 4.3 V Zener Diode, Single 500 mW Surface 2-Pin SOD-123Brand	onsemi

Key Features

Features a 2-pin SOD-123 package for high-density PCB applications.
Maximum power dissipation is 500 mW suitable for voltage regulation.
Operates reliably from -55°C to 150°C ambient temperatures.
Test current is 50 μA ensuring precise voltage regulation.
Maximum reverse leakage current is 4 μA for low power losses.
Designed with automotive standard AEC-Q101 compliance.
Constructed with void-free, transfer-molded thermoplastic case for durability.
Compact size with length 2.84 mm and height 1.35 mm facilitates dense circuit assemblies.

Product Description

onsemi MMSZ4687T1G is a precision Zener diode designed as a surface-mount semiconductor device suitable for voltage regulation applications. It features a nominal Zener voltage rating of 4.3 V with a maximum power dissipation of 500 mW, making it ideal for maintaining stable voltage reference in electronic circuits.

The diode is implemented in a compact SOD-123 2-pin package, which supports high-density circuit board designs and optimal automated board assembly. Its operating temperature range from -55°C to 150°C ensures reliability in harsh industrial and automotive environments.

This device includes a low leakage current of 4 μA and is tested at a current of 50 μA to provide consistent performance. The diode meets automotive standard AEC-Q101 and adheres to RoHS and UL 94 V-0 safety standards, confirming its suitability for durable electronic assemblies.

The physical dimensions of the case are 2.84 mm in length and 1.35 mm in height, with a robust, void-free, transfer-molded thermoplastic construction to ensure mechanical strength and heat resistance.

This diode is widely used in industrial, automotive, and electronic instrumentation applications requiring voltage regulation and voltage reference stabilization. Features a 2-pin SOD-123 package for high-density PCB applications.

Maximum power dissipation of 500 mW suitable for voltage regulation. Operates reliably from -55°C to 150°C ambient temperatures. Test current is 50 μA ensuring precise voltage regulation. Maximum reverse leakage current is 4 μA for low power losses.

Designed with automotive standard AEC-Q101 compliance. Constructed with void-free, transfer-molded thermoplastic case for durability. Compact size facilitates dense circuit assemblies. RoHS compliant and UL 94 V-0 flame retardant rated for safety.
