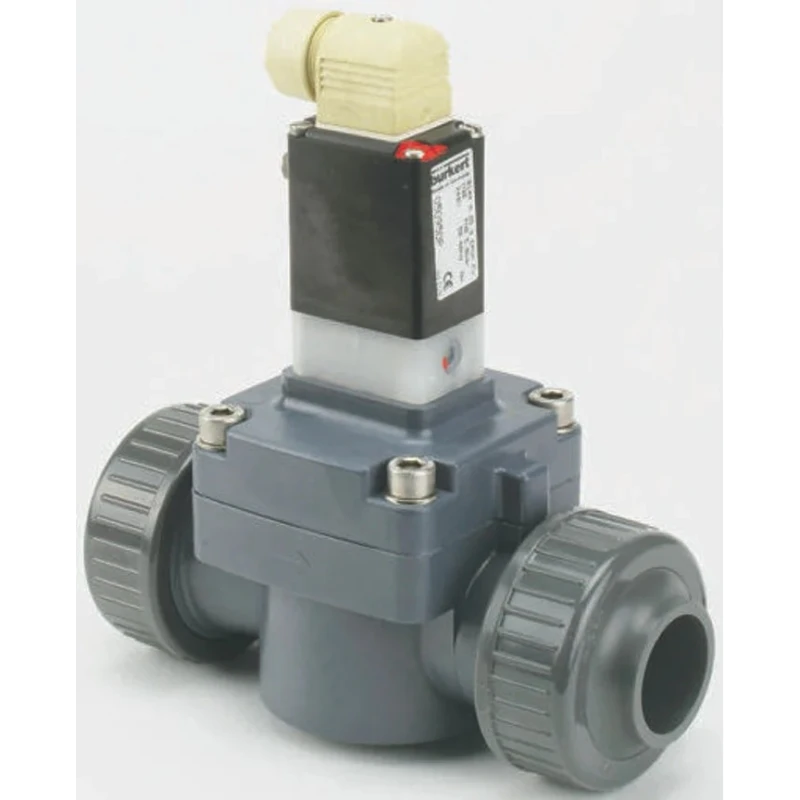

Burkert Series 0142 2 Port NC Solenoid Valve 24V dc, Orifice Diameter 15mm, PVC Body, Model 041980

Burkert 041980 Series 0142 24V dc 2 Port Normally Closed Solenoid Valve with a 15mm orifice diameter is designed for operation with aggressive media. The valve’s robust PVC body and lid, combined with internal parts made from PVDF and PVC and EPDM seals, provide excellent chemical resistance and durability. It is servo-assisted for smooth operation within a pressure range of 0.5 to 6 bar and temperature range from 0 to 40°C.

The valve features a double seal to the valve interior and a lockable manual override for enhanced operational control. The design incorporates a flow factor Kv of 5 m³/h, a maximum opening time of 800 milliseconds, and a maximum closing time of 4 seconds, optimized for industrial fluid control.

It complies with IP65 ingress protection and has multiple certifications including cURus, ATEX, IECEx, and DIN EN 175301-803, making it suitable for hazardous area applications. This product is suited for handling aggressive gases, liquids, bases, and acids up to medium concentrations, commonly applied in water treatment plants, chemical cleaning and washing systems, and the food and beverage sector.

Manufactured in Germany, this Solenoid Valve guarantees reliable performance and quality. This valve features a 15mm orifice diameter suitable for various flow control applications. Constructed with PVC body and internal parts of PVDF and PVC with EPDM seals ensuring chemical resistance.

Valve operates with servo assist and has a maximum pressure rating of 6 bar. Designed to withstand temperatures from 0°C to 40°C, making it ideal for moderate temperature environments. Compliance with IP65 ingress protection and certifications including cURus, ATEX, IECEx, and DIN EN 175301-803.

Includes lockable manual override and double interior seal for increased reliability. Flow factor Kv is 5 m³/h, with a maximum opening time of 800 ms and closing time of 4 s. Suitable for use with aggressive gases, liquids, bases, and acids up to medium concentration.

Common applications include water treatment, chemical cleaning, washing systems, and food and beverage industry. Made in Germany ensuring high quality and reliability. Explore more industrial valves and fittings in the EnvMart catalog to find solutions tailored to your specific needs.
