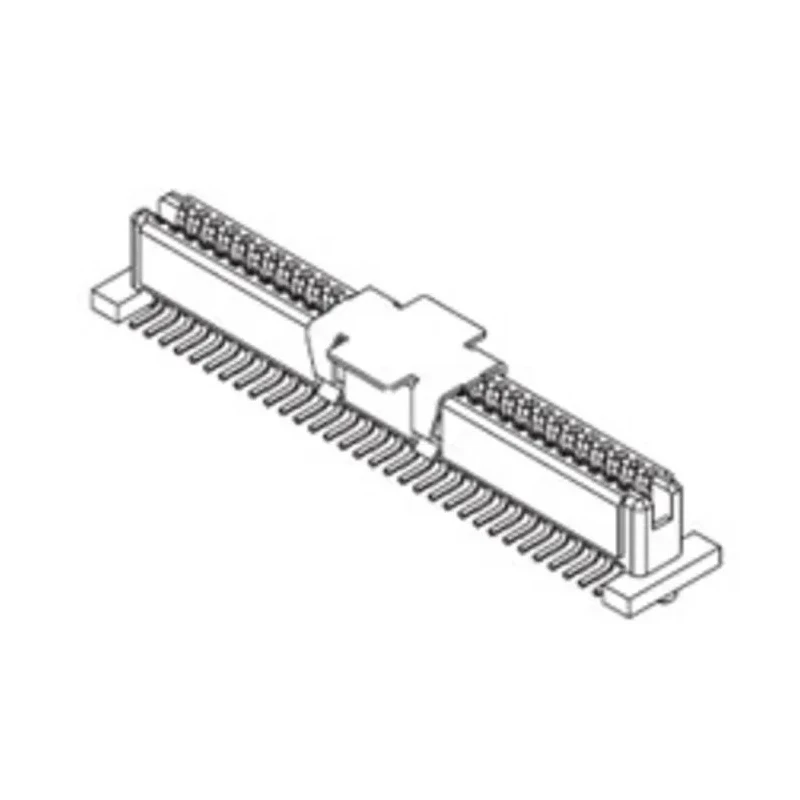

Molex PMC Mezzanine Series Straight Surface PCB Socket 64-Contact 2 Row 1 mm Pitch 12A 100V 71439-3864
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 100V |
| Brand | Molex |
| Orientation | Straight |
| Current | 12A |
| Mount Type | Surface |
| Housing Material | Thermoplastic |
| Contact Material | Bronze |
| Series | PMC Mezzanine |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Sub Type | PCB Receptacle |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 1mm |
| Contact Plating | Gold, Tin |
| Number of Contacts | 64 |
| Contact Gender | Female |
| Connector System | Board-to-Board, Signal |
| Row Pitch | 1.4mm |
Key Features
- This PCB socket supports a current rating of 12 amperes for robust electrical performance.
- It is constructed from durable thermoplastic housing material ensuring long-term reliability.
- The socket mount type is surface mount with a straight orientation for vertical stacking.
- The connector system is designed for board-to-board signal applications.
- Contact plating consists of gold and tin for excellent conductivity and corrosion resistance.
- It operates reliably within a temperature range of -55°C to +85°C.
- The contact material is bronze providing solid mechanical and electrical characteristics.
- The socket series belongs to the PMC Mezzanine family suitable for compact mezzanine applications.
Product Description
Molex 71439-3864 PMC Mezzanine Series Straight Surface PCB Socket is a highly reliable 64-contact PCB receptacle designed for advanced electronic components requiring board-to-board signal connections. Featuring dual rows and a fine 1 mm pitch, this socket supports surface mounting solder termination, making it ideal for compact and stacked mezzanine structures in industrial and commercial electronic assemblies.
Constructed with a thermoplastic housing and bronze contact material plated with gold and tin, it ensures superior conductivity and corrosion resistance. The socket operates efficiently between -55°C and 85°C, supporting a current rating of 12 amperes and a voltage rating of 100 volts, suitable for demanding signal integrity and power requirements.
With a row pitch of 1.4 mm and straight vertical orientation, it facilitates easy placement and reliable mechanical stability. Its board-to-board connector system enhances signal transmission in various electronics and electrical applications, including industrial controls, communication devices, and embedded systems requiring compact and durable connectors.
This PCB socket has 64 contacts with dual rows and 1 mm pitch, designed specifically for mezzanine applications. It possesses a current rating of 12A and voltage rating of 100V for robust power handling. Thermoplastic housing material and bronze contacts with gold/tin plating ensure durability and conductivity.
Supports surface mount solder termination with a straight, vertical orientation for stacked assemblies. Suitable for industrial, manufacturing, and electronic equipment requiring precise and compact PCB connections. Operates reliably within the temperature range of -55°C to 85°C for diverse environmental conditions.
Designed in the PMC Mezzanine series, this connector plays a critical role in modern electronics requiring high-density, reliable PCB sockets. Explore more PCB Sockets and connector options in the Electronics Components category at EnvMart for your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB socket supports a current rating of 12 amperes, making it suitable for robust electrical performance.
The voltage rating for this socket is 100 volts, which is essential for handling power requirements in electronic applications.
It supports surface mount solder termination, designed for easy integration into electronic assemblies.
This socket operates reliably within a temperature range of -55°C to 85°C, accommodating diverse environmental conditions.
The socket features 64 contacts arranged in 2 rows, suitable for high-density applications.
It is constructed from thermoplastic housing material and bronze contact material, ensuring solid mechanical and electrical characteristics.
This socket utilizes a board-to-board connector system designed for signal applications, enhancing signal integrity.
The socket has a contact pitch of 1 mm, facilitating compact connections in electronic designs.
The orientation of this socket is straight, which allows for vertical stacking in assemblies.
The contact plating consists of gold and tin, providing excellent conductivity and corrosion resistance.
Yes, it belongs to the PMC Mezzanine series, making it suitable for compact mezzanine applications in electronic assemblies.
The country of origin for this PCB socket is China.
