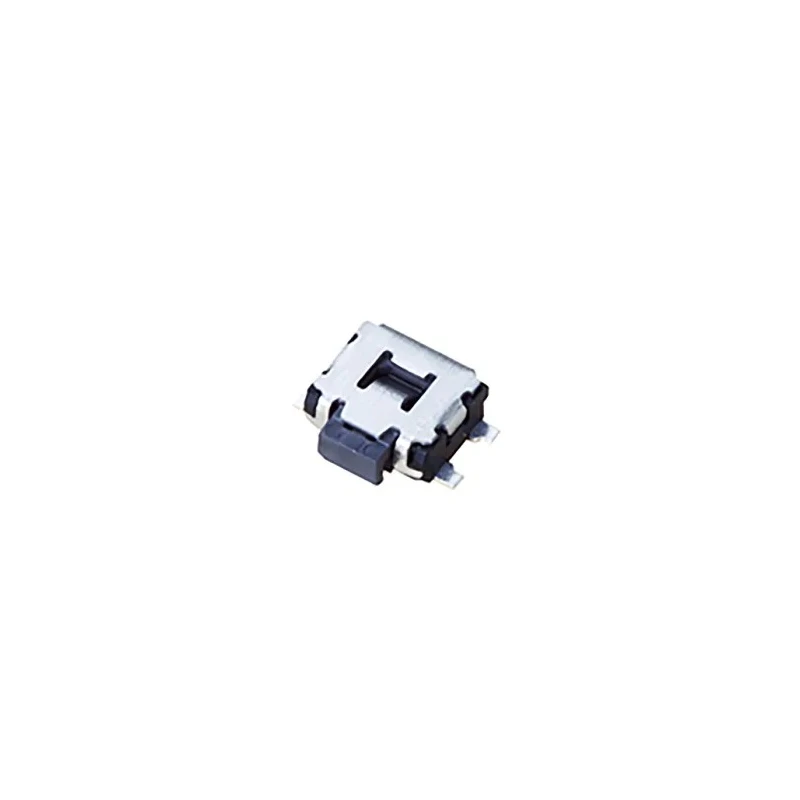

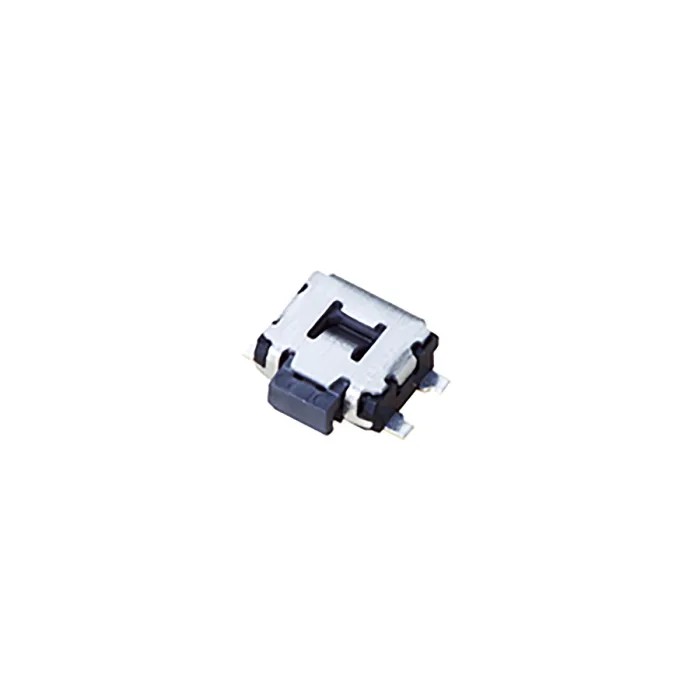

Panasonic Black Tactile Switch 0.65 mm Actuator Length SPST Momentary Operation EVQP7A01P
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Length | 3.5mm |
| Model | EVQP7A01P |
| Width | 2.9mm |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -20°C |
| External Dimensions | 3.5 mmx2.9 mm, Height 1.35 mm |
| Terminal type | Straight |
| Switch Operation | Momentary |
| Actuator Colour | Black |
| Actuator Length | 0.65mm |
| Operating Force | 2.2N |
| A wide range of Terminal type | L-shape, J-bent, Straight |
| Panasonic Black Tactile Switch, 0.65 mm, SPSTBrand | Panasonic |
Key Features
- Contact configuration is Single Pole Single Throw (SPST).
- Terminal type is straight, supporting easy mounting.
- Actuator color is black with a length of 0.65 mm.
- External dimensions measure 3.5 mm length by 2.9 mm width, with 1.35 mm height.
- Operating temperature ranges from -20°C to 70°C ensuring durability.
- Operating force required is 2.2 Newtons for precise tactile feedback.
- High mount ability with push plate strength enhancement.
- Recommended for portable electronic equipment such as mobile phones, digital cameras, camcorders, and portable audio players.
Product Description
Panasonic EVQP7A01P Black Tactile Switch features a compact design with an actuator length of 0.65 mm, SPST contact configuration, and momentary switch operation. It is engineered to provide precise tactile feedback and durability for various industrial and commercial applications.
The switch has external dimensions of 3.5 mm length by 2.9 mm width and a height of 1.35 mm. It operates reliably across a temperature range of -20°C to 70°C, making it suitable for use in a variety of environments.
This tactile switch comes with a black actuator color and requires an operating force of 2.2 Newtons, ensuring easy actuation while maintaining good contact integrity. Its terminal type is straight which facilitates secure and straightforward PCB mounting.
Designed with enhanced push plate strength, it offers high mount ability and a wide range of terminal types including L-shape, J-bent, and straight to cater to different mounting preferences.
Ideal for operation switches in portable electronic devices such as mobile phones, digital still cameras, camcorders, and portable audio players, this product supports reliable and consistent user input in compact electronic assemblies.
Contact configuration is Single Pole Single Throw (SPST). Terminal type is straight for ease of installation. Momentary switch operation for tactile feedback. Black actuator with 0.65 mm length. Dimensions: 3.5 mm x 2.9 mm, height 1.35 mm.
Operating temperature range: -20°C to 70°C. Operating force: 2.2 Newtons. High mount ability with enhanced push plate strength. Constructed in Japan with quality manufacturing standards.
This tactile switch is designed for industrial, electronics manufacturing, telecommunications, and portable consumer electronics applications. Its robust mechanical specifications and compact size make it an excellent choice for high-precision switch requirements.
Explore more in the Tactile Switch category at EnvMart for a range of high-quality switching components suited for your precise application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact configuration of this tactile switch is Single Pole Single Throw (SPST).
The external dimensions are 3.5 mm in length, 2.9 mm in width, and 1.35 mm in height.
The actuator length of this model is 0.65 mm.
The operating temperature range is from -20°C to 70°C.
The required operating force for actuation is 2.2 Newtons.
This switch has a straight terminal type, which facilitates easy mounting.
It is recommended for use in portable electronic equipment such as mobile phones, digital cameras, camcorders, and portable audio players.
The switch operation type is momentary, providing tactile feedback during use.
This switch supports a wide range of terminal types including L-shape, J-bent, and straight.
This tactile switch is manufactured in Japan.
The enhanced push plate strength provides high mount ability, ensuring secure installation and operation.
The brand of this tactile switch is Panasonic.
