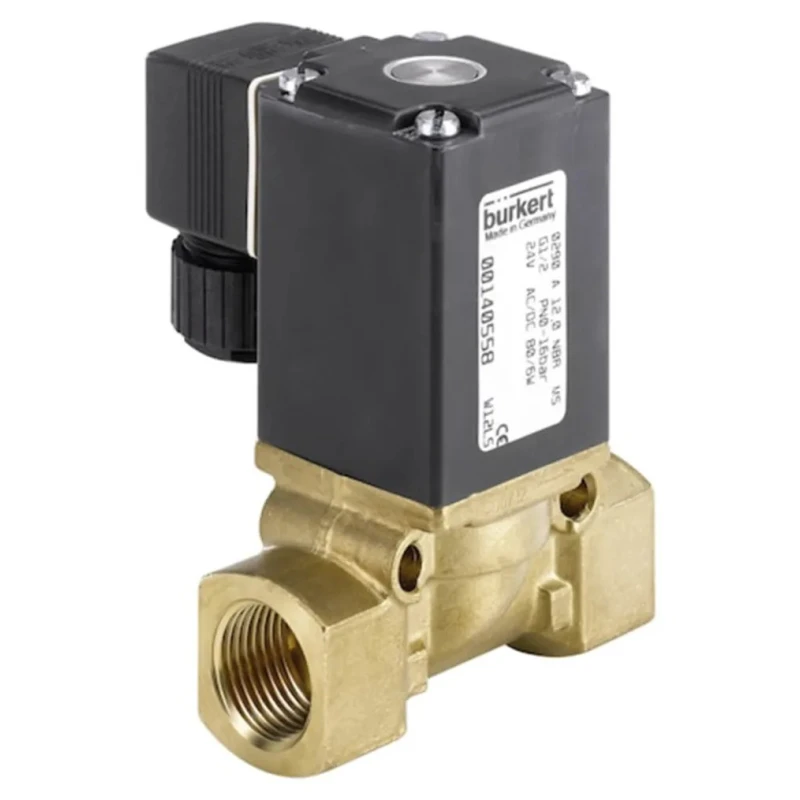

Burkert Solenoid Valve 2 Port NC Threaded Brass Body 24V ac/dc Supply 16 bar Max Pressure 053675
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Burkert |
| Body Material | Brass |
| Maximum Operating Pressure | 16 bar |
| Outlet Connection Type | Threaded |
| Model | 053675 |
| Series | S.EV |
| Number Of Ports | 2 |
| Minimum Operating Temperature | 55°C |
| Orifice Diameter | 25mm |
| Supply Voltage | 24V ac/dc |
| Inlet Port Size | G1 |
| Default Valve Position | NC |
| Inlet Thread Standard | G |
| Outlet Port Size | 25.4 mm |
| Inlet Port Gender | Female |
| Maximum Opening Time | 250ms |
| Flow Factor Kv | 10m³/h |
| Maximum Closing Time | 2s |
| RS PRO Solenoid Valve, 2 Port, NC 1 in, 24V dcRS Stock No. | 235-1127Brand: RS PRO |
Key Features
- This valve features a 25 mm orifice diameter for effective flow control.
- It supports a maximum operating pressure of 16 bar ensuring reliable industrial performance.
- The valve offers fast actuation with a maximum opening time of 250 milliseconds and closing time of 2 seconds.
- Equipped with a servo-assisted diaphragm for enhanced functionality and quiet operation.
- Designed for use with compressed air, hydraulic oil, neutral media, and water applications.
- Constructed with a brass body ensuring durability and corrosion resistance.
- The valve is vibration-proof and includes a block screwed coil system for stability.
- Rated with an operational temperature range from 0°C to 55°C suitable for typical industrial environments.
Product Description
Burkert 053675 solenoid valve is a precision-engineered, 2 port normally closed (NC) valve designed for industrial fluid control systems. Featuring a brass threaded body with G1 inlet and 25.4 mm outlet port size, this valve operates at a supply voltage of 24V ac/dc. It is widely used in pneumatic and hydraulic applications involving compressed air, hydraulic oil, neutral media, and water.
The valve incorporates a servo-assisted diaphragm technology that enhances the valve opening without requiring differential pressure, promoting gentle and quiet operation with a maximum opening time of just 250 milliseconds and closing within 2 seconds. Its vibration-proof, block screwed coil system ensures reliable and stable performance in harsh industrial environments.
With a maximum working pressure of 16 bar and an orifice diameter of 25 mm, the valve offers robust performance suitable for demanding fluid control tasks. The valve components, such as the solenoid coils, are encapsulated in chemically resistant epoxy, enhancing durability and ensuring long operational life. The operating temperature range spans from 0°C to 55°C, making it suitable for diverse industrial conditions.
Manufactured in Germany, this Burkert S.EV series solenoid valve delivers quality assurance and meets industry standards for reliability and safety, although it has no hazardous area certification or special approvals.
This valve supports fast cycle times with a maximum opening time of 250 ms and closing time of 2 s. The flow factor Kv is 10 m³/h, providing efficient flow rate control. It features a threaded connection with G standard inlet and female port gender for ease of installation.
The valve's default position is normally closed (NC), ensuring secure shut-off when de-energized. Servo-assist technology reduces power consumption and enhances diaphragm reliability.
The Burkert 053675 Solenoid Valve is ideal for industrial manufacturing, fluid power systems, HVAC, water treatment, and pneumatic automation applications. Its durable brass body and carefully engineered design cater to operators seeking precise, reliable fluid control solutions with low noise operation.
Explore more industrial valves within the EnvMart catalog for compatible products and accessories suitable for your operation.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this solenoid valve is 16 bar.
The orifice diameter of this valve is 25 mm.
It operates at a supply voltage of 24V ac/dc.
The maximum opening time is 250 milliseconds, and the maximum closing time is 2 seconds.
It features a threaded connection with a G1 inlet port size and a 25.4 mm outlet port size.
The default position of this valve is normally closed (NC).
The valve is constructed with a brass body, ensuring durability and corrosion resistance.
It is suitable for applications involving compressed air, hydraulic oil, neutral media, and water.
The flow factor Kv for this solenoid valve is 10 m³/h.
The operational temperature range is from 0°C to 55°C.
Yes, this valve is designed to be vibration-proof, ensuring stable performance in industrial environments.
This valve is manufactured in Germany.
