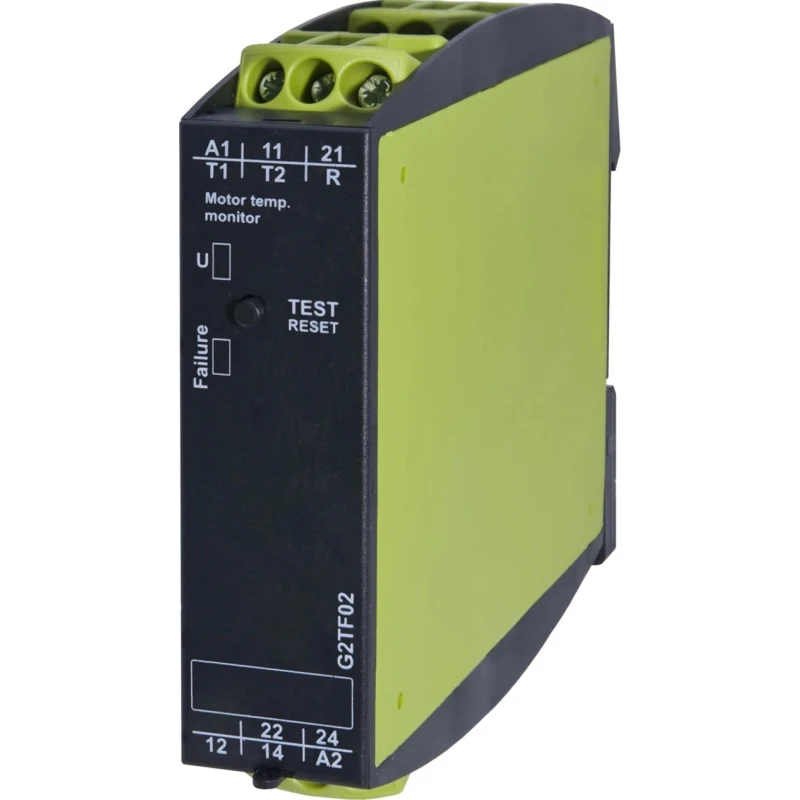

Tele GAMMA Series Temperature Monitoring Relay, 1 Phase, DPDT, DIN Rail Mount, 24V AC, 240V AC G2TF02 24-240VAC/DC

Tele G2TF02 24-240VAC/DC is a GAMMA Series temperature monitoring relay designed for industrial temperature monitoring applications. This 1 phase DPDT relay is used primarily to monitor motor winding temperatures with built-in fault latch functionality for temperature sensors. Operating at a standard DIN rail size, it offers reliable protection through short circuit monitoring of the thermistor line and features an integrated test and reset key for ease of maintenance. The enclosure is made of a self-extinguishing plastic body, providing IP20/IP40 level of ingress protection.

The relay's electrical specifications include a rated contact current of 5A and operating voltages at 24V AC and rated voltage at 240V AC, making it suitable for various commercial and industrial temperature control systems. Screw terminal connections ensure secure and robust installation on DIN rails, with compact dimensions of 108mm length and 90mm height fitting industry standards.

Designed to comply with rigorous IEC standards including IEC 60721-3-3, IEC 60068-2-6, IEC 60664-1, RoHS directives, and IEC 60068-2-27, this relay guarantees quality, safety, and environmental compliance. Its operating temperature range from -55°C to +55°C ensures performance stability in demanding environments. This product supports automated industrial processes and HVAC systems, protecting equipment from overheating and temperature-related faults.

The GAMMA series offers reliable temperature monitoring with fault latch for motor winding sensors. Short circuit monitoring of the thermistor line provides additional safety for sensitive components. Integration of a test and reset key facilitates maintenance and system tests without equipment shutdown.

Compact DIN rail mounting saves panel space and simplifies installation in control cabinets. Self-extinguishing plastic housing ensures electrical safety and durability under industrial conditions. Rated contact current of 5A supports diverse automation and control applications.

Compliance with multiple IEC standards ensures high reliability and international acceptance. Suitable for use in HVAC, manufacturing, water treatment, and industrial automation sectors.

Package contents include one Tele GAMMA series temperature monitoring relay model G2TF02 24-240VAC/DC. For further related products, customer can explore additional Monitoring Relays in the EnvMart catalog specialized for industrial and electrical automation.
