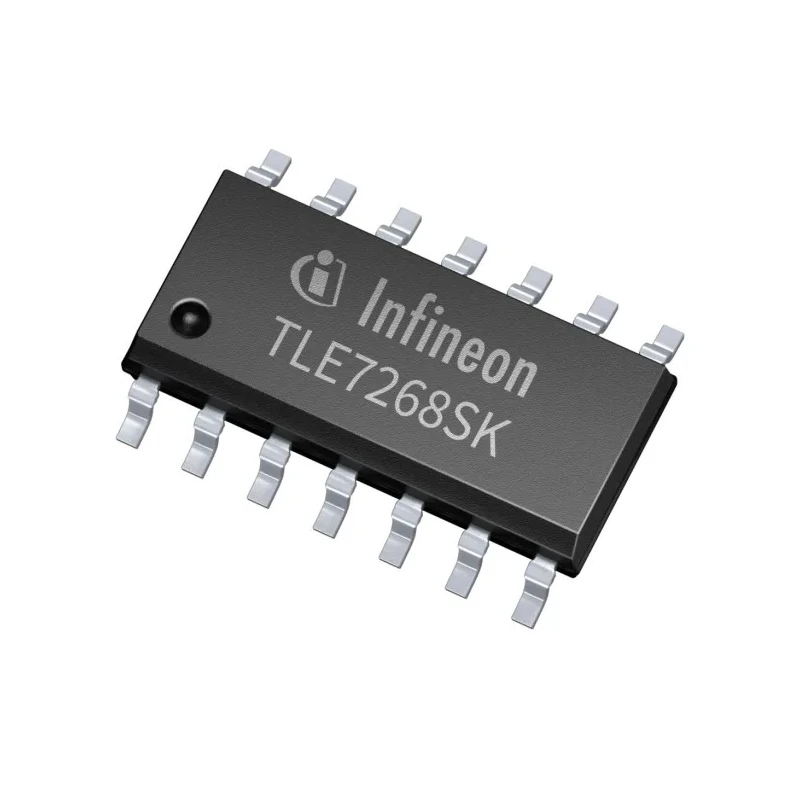

Infineon LIN Transceiver Dual Channel, 14-Pin DSO, 5.5V-18V Supply, 15mA TLE7268SKXUMA1

Infineon TLE7268SKXUMA1 is a dual LIN Transceiver tailored for automotive Local Interconnect Networks, packaged in a 14-pin DSO. It operates with supply voltages from 5.5V to 18V and supports data transmission rates up to 20 kbps, suitable for in-vehicle bus communication applications.

The device features two independent transceivers that operate as bus drivers interfacing protocol controllers to LIN physical networks. It supports various low power modes such as normal, standby, and sleep, to minimize ECU current consumption. In sleep mode, the transceiver draws a quiescent current below 10 μA, while still capable of waking upon LIN bus activity detection.

Protection mechanisms include overtemperature shutdown and undervoltage detection to enhance system robustness. Infineon's advanced BiCMOS technology offers excellent ESD robustness and electromagnetic compatibility, meeting IEC 61000-4-2 and ISO 17987-4 standards. The transceiver meets automotive industry requirements with AEC qualification and supports SAE J2602 LIN interface standards.

Compact dimensions (4.5mm length, 3mm width, 1.75mm height) enable space-efficient PCB layouts. The TLE7268 is ideal for automotive control units requiring dual channel LIN communication with reliable wake-up and protection features.

Operates at supply voltages between 5.5V and 18V. Dual LIN transceiver channels with independent operations. Low quiescent current to optimize low power consumption. Integrated overtemperature and undervoltage protections.

Compliant with SAE J2602 LIN and AEC automotive standards. Robust ESD and EMC performance using BiCMOS technology. Suitable for automotive ECU and in-vehicle network applications. This Infineon LIN transceiver is a reliable choice for automotive communication systems. Explore more Interface ICs in the EnvMart catalog for your design requirements.
