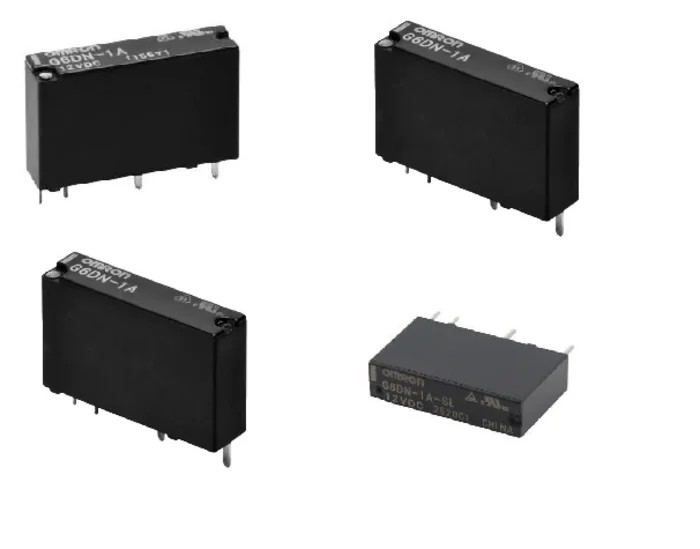

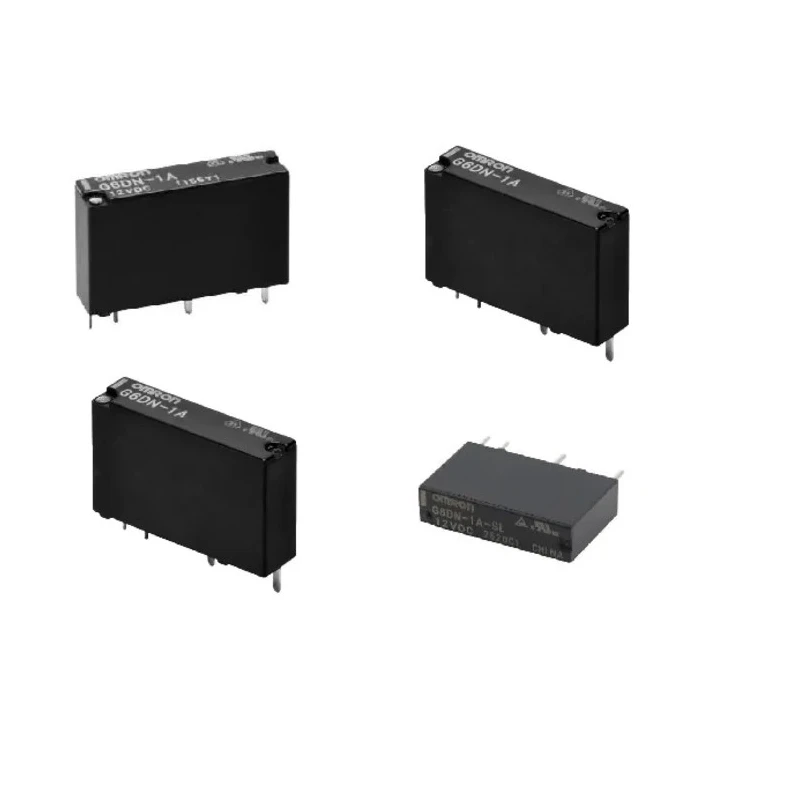

Omron Power PCB Relay SPST, 24V DC Coil, 5A Switching Current G6DN-1A-SL DC24
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Height | 15mm |
| Length | 50mm |
| Model | G6DN-1A-SL DC24 |
| Width | 10mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G6DN |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 5A |
| Terminal type | Screw |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 5.2kΩ |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 60V dc |
| Switching AC Voltage | 240V ac |
| Coil Power | 110mW |
Key Features
- The relay features a PCB mount type with screw terminals for secure connections.
- Designed for high contact reliability using silver alloy contacts.
- Switching capabilities include 60V DC and 240V AC voltages.
- Low coil power consumption at 110mW with a coil resistance of 5.2kΩ.
- Operates reliably within a wide temperature range from -40°C to 70°C.
- Contact resistance is maintained low at 100mΩ ensuring efficient switching.
- Compliance with RoHS standards for environmentally safe usage.
Product Description
The Omron G6DN-1A-SL DC24 Power PCB Relay is an efficient single pole single throw (SPST) relay designed for PCB mounting in electronics and electrical applications. Featuring a 24V DC coil, this relay supports switching currents up to 5 amperes, making it suitable for a range of power switching tasks.
This relay employs silver alloy contacts, providing high reliability and superior conductivity for demanding industrial environments. Its low coil power consumption of 110 milliwatts, with 5.2 kiloohms coil resistance, ensures energy efficiency in automation and control circuits.
The relay is engineered to operate effectively in temperatures ranging from -40°C up to 70°C, demonstrating robustness for various climatic conditions. Its compact form factor with 50mm length, 10mm width, and 15mm height enables integration in tight spaces on printed circuit boards.
With a switching voltage capacity of up to 60V DC and 240V AC, the Omron G6DN offers versatile application possibilities including industrial automation, control systems, and signal conditioning.
The device conforms to RoHS standards, underscoring its compliance with environmental and safety regulations. Its screw terminal connections facilitate secure and easy installation on PCBs.
The relay features a PCB mount type with screw terminals for secure connections. Designed for high contact reliability using silver alloy contacts. Switching capabilities include 60V DC and 240V AC voltages. Low coil power consumption at 110mW with a coil resistance of 5.2kΩ.
Operates reliably within a wide temperature range from -40°C to 70°C. Compact dimensions: 50mm length, 10mm width, and 15mm height. Contact resistance is maintained low at 100mΩ ensuring efficient switching. Compliance with RoHS standards for environmentally safe usage.
This relay is ideal for industrial, electrical, and automation applications requiring reliable and efficient PCB relays. EnvMart offers a comprehensive selection of Power Relays for enhanced circuit control and protection.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Omron G6DN-1A-SL DC24 relay has a switching current capacity of up to 5 amperes.
This relay operates with a coil voltage of 24V DC.
The dimensions of this relay are 50mm in length, 10mm in width, and 15mm in height.
The relay is designed for PCB mounting and features screw terminals for secure connections.
The contact configuration of the Omron G6DN-1A-SL DC24 is SPST (Single Pole Single Throw).
This model can switch voltages up to 60V DC and 240V AC.
The coil power consumption is 110 milliwatts.
The contact resistance is maintained at a low level of 100 milliohms.
This relay operates reliably within a temperature range of -40°C to 70°C.
The contacts of this relay are made from silver alloy, ensuring high contact reliability.
Yes, this relay complies with RoHS standards for environmentally safe usage.
The relay features screw terminals for secure and easy installation on PCBs.
