| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.47mm |
| Length | 1mm |
| Model | BZX8850S-C3V0-QYL |
| Mount Type | Surface |
| Series | BZX8850S |
| Maximum Operating Temperature | 150°C |
| Working voltage range | nominal 1.8 V to 75 V |
| Package Type | DFN1006BD-2 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 365mW |
| Diode Configuration | Single |
| Test Current It | 50μA |
| Maximum Reverse Leakage Current | 800nA |
| Nominal Zener Voltage Vz | 3V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 600Ω |
| Typical Voltage Temperature Coefficient | -3.5mV/K |

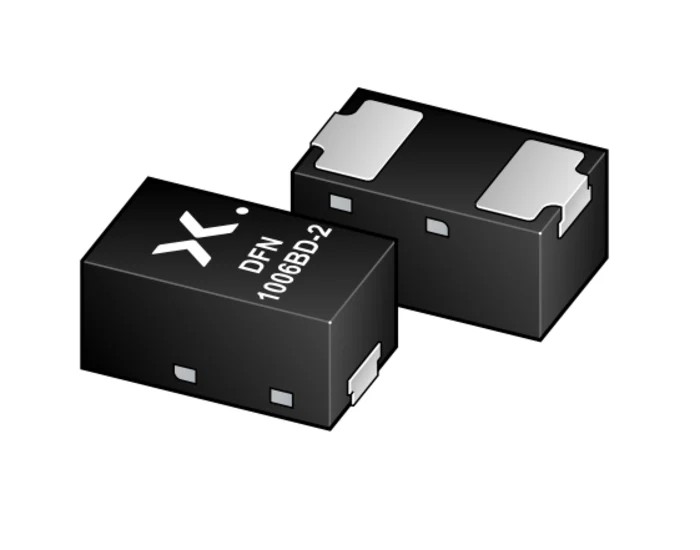

Nexperia BZX8850S-C3V0-QYL is a high-quality single Zener diode offering a nominal Zener voltage of 3 V. Packaged in an ultra-compact DFN1006BD-2 plastic surface mount device with a 2-pin configuration, this diode delivers a maximum power dissipation of 365 mW. It is specifically designed for voltage regulation and general low-current applications.
Its tolerance of ±5% and test current of 50 μA make it ideal for precise voltage regulation in low-bias or battery-powered devices. The diode operates reliably in a wide temperature range, from -55°C to 150°C, and boasts a low reverse leakage current of 800 nA and a maximum impedance of 600 Ω. These features ensure stable operation in sensitive electronic circuits.
The device complies with the stringent AEC-Q101 automotive standard, making it suitable for use in automotive electronics and other demanding industrial environments. The typical voltage temperature coefficient is -3.5 mV/K, providing predictable voltage behavior across temperature variations.
This Zener diode finds utility in electronic component manufacturing, power and connector assemblies, semiconductor discrete applications, and voltage regulation circuits within industrial, automotive, electronic design, and laboratory testing settings.
Nominal Zener voltage 3 V with ±5% tolerance. Maximum power dissipation 365 mW in a small footprint package. Surface mount DFN1006BD-2 package with 2 pins. Low test current of 50 μA suited for portable electronics. Wide operating temperature range from -55°C to 150°C.
Maximum reverse leakage current 800 nA ensuring low power losses. Conforms to AEC-Q101 automotive standard for quality assurance. Voltage temperature coefficient of -3.5 mV/K for stability. Compact size with height 0.47 mm and length 1 mm.
For engineers and designers seeking reliable voltage regulation in miniature electronic components, the Nexperia BZX8850S-C3V0-QYL Zener diode offers precision, durability, and compliance with automotive industry standards. Explore more such semiconductors and discrete devices in the EnvMart catalog.
