Nexperia Voltage Regulator Zener Diode 20 V, 365 mW, Surface Mount, 2-Pin DFN1006BD-2 BZX8850S-C20YL

Nexperia BZX8850S-C20YL voltage regulator Zener diode is designed for precise voltage regulation in low-current electronic circuits. It operates at a nominal Zener voltage of 20 V with a tolerance of ±5%, ensuring stable output voltage under varying conditions. The diode supports a maximum power dissipation of 365 mW and operates reliably within a temperature range from −55°C to 150°C.

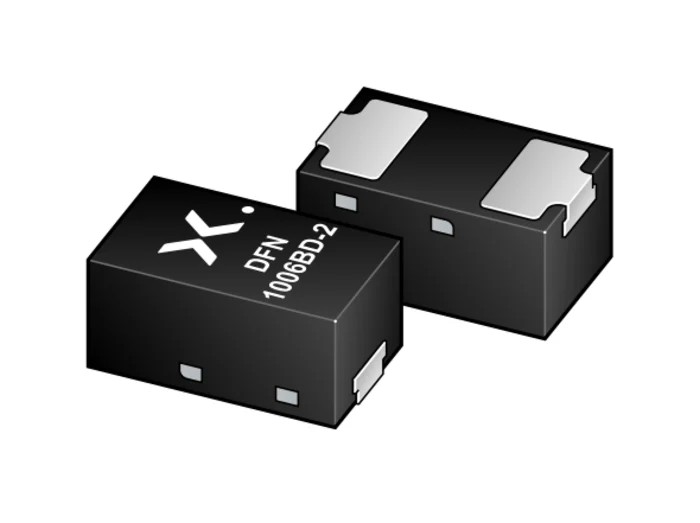

This diode features a single-element chip configuration housed in a surface-mount DFN1006BD-2 package, measuring only 1 mm in length and 0.47 mm in height, making it suitable for compact designs. The device uses a low test current of 50 μA, making it ideal for battery-powered and low-bias applications. Its low maximum reverse leakage current and impedance contribute to efficient circuit performance.

Compliant with automotive standard AEC-Q101, this component is suitable for high-reliability automotive and industrial electronic applications. The typical voltage temperature coefficient of 14.4 mV/K provides voltage stability across different temperature conditions. The 2-pin package configuration facilitates easy mounting and integration into printed circuit boards.

Applications include voltage regulation in portable electronics, power management circuits, and other low-power semiconductor devices in industrial, automotive, and commercial environments. Its compact size and efficient design make it well suited for modern electronics manufacturing.

Single diode configuration designed for voltage regulation applications. Nominal Zener voltage of 20 V with a ±5% tolerance for precise regulation. Maximum power dissipation of 365 mW suitable for low-power circuits. Surface mount package type DFN1006BD-2 with low profile at 0.47 mm height.

Operating temperature range from −55°C to 150°C for reliable performance. Low test current of 50 μA ideal for portable and battery-powered devices. Typical voltage temperature coefficient of 14.4 mV/K to maintain voltage stability.

Maximum reverse leakage current of 50 nA ensuring minimal leakage in circuits. Automotive standard compliant with AEC-Q101 certification for demanding environments. Compact dimensions of 1 mm length for integration into compact electronics.
