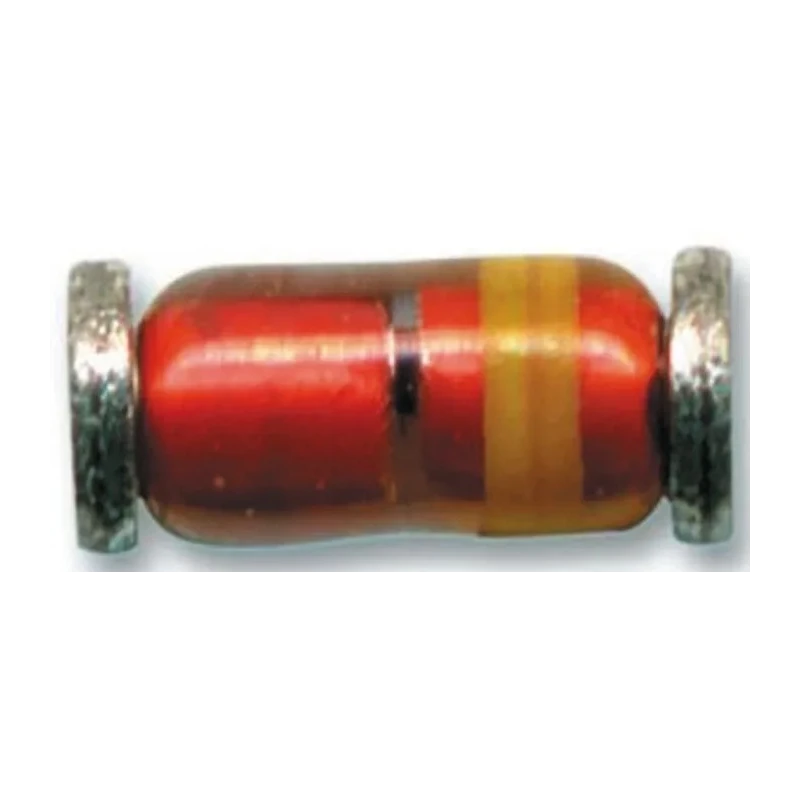

Nexperia 1.20 V Zener Diode Single 500 mW 5% Voltage Regulator Surface Mount 2-Pin SOD-80 BZV55-C20,115

Nexperia BZV55-C20,115 is a high-quality single Zener diode designed for voltage regulation in electronic circuits, featuring a nominal Zener voltage of 20 V and power dissipation capacity of 500 mW in a compact surface mount package.

This Zener diode has a voltage tolerance of ±5%, ensuring precise voltage regulation under varying conditions. The device comes in the widely used SOD-80 surface mount package with 2 pins, facilitating easy integration into printed circuit boards.

Featuring a maximum power dissipation of 500 milliwatts, it is capable of maintaining stable voltage levels efficiently in low power applications. Its maximum operating temperature is rated at 200°C, and it can function effectively down to -65°C, making it suitable for a range of industrial and commercial electronics applications including power supplies and voltage regulation circuits.

The diode has a maximum Zener impedance of 55 Ω at the test current of 5 mA, with a minimal maximum reverse leakage current of 50 nA, contributing to energy-efficient performance. Its dimensions, 3.7 mm length and 1.6 mm height, ensure a small footprint on PCBs.

The BZV55 series, to which this diode belongs, does not conform to automotive-specific standards but is well-suited for industrial, laboratory, commercial, and general electronic manufacturing settings requiring voltage stabilization.

The diode configuration is single element per chip for reliable operation. Mount type is surface mount technology, ideal for automated assembly. Package type is SOD-80 with 2 pins for standard PCB applications. Typical voltage temperature coefficient is 15.6 mV/°C for predictable variation with temperature.

Nominal Zener voltage is 20 V with a ±5% tolerance for accurate voltage regulation. Maximum power dissipation is 500 mW suited for low power circuits. Operating temperature range from -65°C to 200°C enables use in varied environments.

This product is manufactured in China by Nexperia.

For detailed design and mechanical integration, 3D models and schematics are available from Nexperia. This diode is ideal for applications in electronics manufacturing, power supply circuits, and industrial equipment requiring stable voltage regulation.
