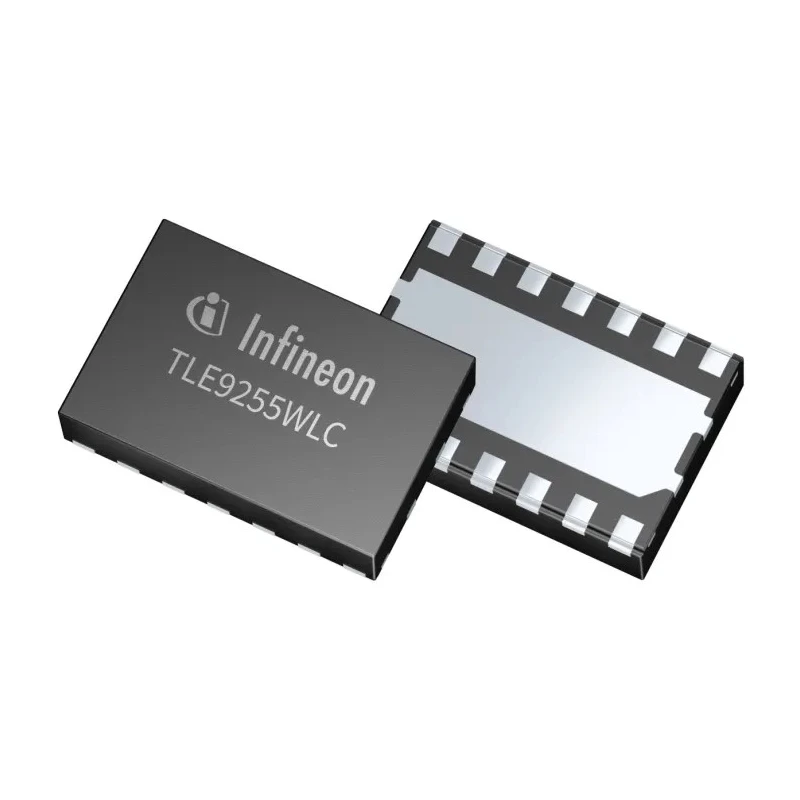

Infineon CAN Interface Transceiver 5 Mbps, 14-Pin TSON Package TLE9255WLCXUMA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 1.75mm |
| Length | 8.75mm |
| Model | TLE9255WLCXUMA1 |
| Width | 4mm |
| Mount Type | PCB |
| Series | TLE9255W |
| Maximum Operating Temperature | 150°C |
| Package Type | TSON |
| Sub Type | Interface IC |
| Minimum Operating Temperature | -40°C |
| Interface Type | CAN |
| Pin Count | 14 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.25V |
| Minimum Supply Voltage | 4.75V |
| Supply Current | 500μA |
| Maximum Data Rate | 5Mbps |
| Number of Transceivers | 1 |
Key Features
- Supports data rates up to 5 Mbps for reliable high-speed CAN communication.
- Operates within a supply voltage range of 4.75 to 5.25 volts suitable for vehicle power systems.
- Includes multiple power-down modes such as normal, sleep, and standby for energy management.
- Features a low supply current of 500 microamperes to minimize power consumption.
- Compliant with ISO 11898-2 and IEC 61000-4-2 electromagnetic standards for CAN communication.
- Qualified to AEC-Q100 automotive standards ensuring high reliability and quality.
- Robust operation over a temperature range from -40°C to 150°C for harsh environments.
- Package type TSON supports surface-mount PCB assembly with 14 pins for signal and power routing.
Product Description
Infineon TLE9255WLCXUMA1 is a single-channel CAN Interface Transceiver IC that supports maximum data rates of 5 Mbps. Housed in a 14-pin TSON surface-mount package, this device is suitable for automotive and industrial CAN bus networks operating at standard vehicle voltages ranging from 4.75V to 5.25V.
The transceiver incorporates low quiescent current operation with a supply current of only 500μA, along with versatile power-down modes including normal, sleep, and standby states, enabling effective energy management in battery-powered applications.
Meeting ISO 11898-2 and IEC 61000-4-2 standards, the TLE9255WLCXUMA1 ensures robust CAN physical layer signaling and electromagnetic compatibility. It is also qualified to the AEC-Q100 automotive standard, signifying its suitability for reliable use in demanding vehicular environments.
Operating across a wide temperature range from -40°C to 150°C, this transceiver is designed to withstand harsh environmental conditions commonly found in automotive and industrial applications.
This device is ideal for integration into in-vehicle body control modules requiring CAN connectivity, gateway nodes linking multiple automotive networks, battery-powered telematics units, sensor interfaces compliant with ISO 11898-2, and diagnostic interfaces in automotive test equipment.
Supports data rates up to 5 Mbps for reliable communication. Operates at vehicle supply voltages from 4.75V to 5.25V. Includes normal, sleep, and standby power-down modes. Low quiescent supply current of 500μA reduces power consumption.
Meets ISO 11898-2 and IEC 61000-4-2 compliance standards. Qualified to AEC-Q100 automotive standard. Wide operating temperature range from -40°C to 150°C. Available in 14-pin TSON surface-mount package for PCB assembly. Suitable for automotive body control, gateways, telematics, sensors, and diagnostics.
Explore more Infineon automotive and interface semiconductor components in the EnvMart catalog for robust industrial and vehicle network solutions.
Explore more products in our CAN Interface ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum data rate of 5 Mbps for reliable high-speed CAN communication.
It operates within a supply voltage range of 4.75 to 5.25 volts, suitable for vehicle power systems.
This unit includes multiple power-down modes such as normal, sleep, and standby for effective energy management.
It has a low supply current of 500 microamperes, which helps minimize power consumption.
Yes, it is compliant with ISO 11898-2 and IEC 61000-4-2 electromagnetic standards for CAN communication.
This model is qualified to AEC-Q100 automotive standards, ensuring high reliability and quality.
It operates over a wide temperature range from -40°C to 150°C, making it suitable for harsh environments.
It comes in a 14-pin TSON surface-mount package, which supports PCB assembly.
The dimensions are 8.75mm in length, 4mm in width, and 1.75mm in height.
This model integrates a single-channel transceiver for CAN communication.
It is suitable for in-vehicle body control modules, gateway nodes, battery-powered telematics units, and diagnostic interfaces in automotive test equipment.
This unit supports the CAN interface type, which is commonly used in automotive and industrial applications.
