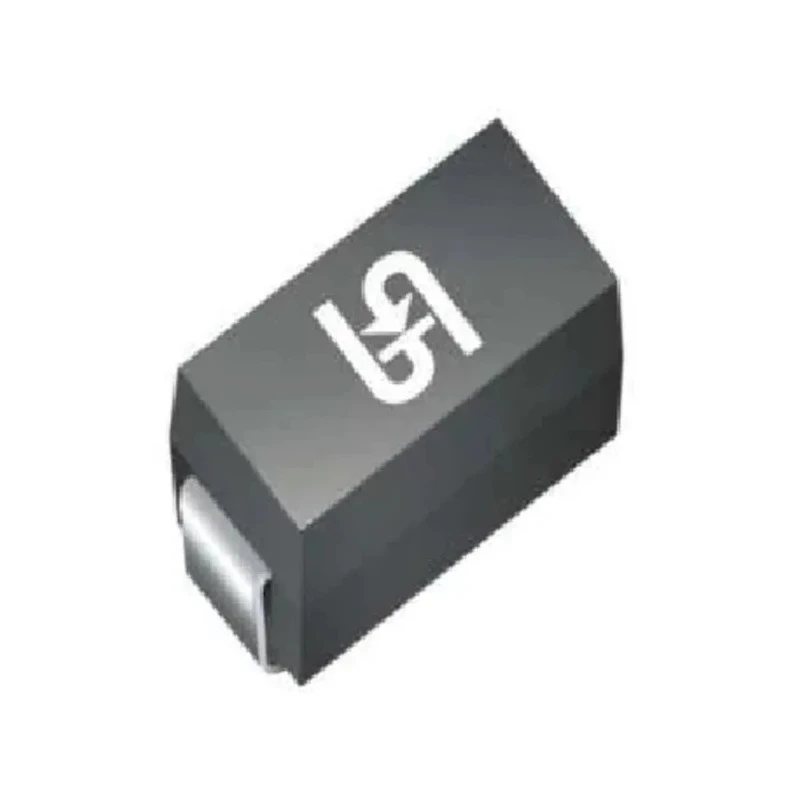

Taiwan Semiconductor 1 W Surface Mount General Purpose Zener Diode 200 V 2-Pin SOD-123W BZD27C200PWH
Specifications
| Country of Origin | India |
|---|---|
| Brand | Taiwan Semiconductor |
| Height | 1.2mm |
| Length | 3.5mm |
| Model | BZD27C200PWH |
| Mount Type | Surface |
| Series | BZD27C |
| Maximum Operating Temperature | 175°C |
| Package Type | SOD-123W |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 1W |
| Diode Configuration | Single |
| Test Current It | 50mA |
| Maximum Reverse Leakage Current | 1μA |
| Nominal Zener Voltage Vz | 200V |
| Zener Type | General Purpose |
| Maximum Zener Impedance | 10Ω |
Key Features
- Single diode configuration designed for voltage regulation and protection circuits.
- Maximum power dissipation of 1 watt ensures efficient performance.
- Surface mount package type SOD-123W suitable for compact PCB layouts.
- Maximum operating temperature of 175°C and minimum of -55°C suitable for harsh environments.
- Low leakage current of 1μA contributing to energy efficiency.
- Test current rating of 50 mA for reliable operation.
- Maximum Zener impedance of 10 ohms ensuring stable voltage.
- Compliant with AEC-Q101 automotive standards and various industry certifications.
Product Description
Taiwan Semiconductor BZD27C200PWH is a 1 watt, 200 volt Zener diode designed for surface mounting in a 2-pin SOD-123W package. This general purpose silicon Zener diode is engineered for use in voltage regulation, reference voltage circuits, and protection circuit applications.
The diode features a robust power dissipation rating of 1 watt and operates reliably over a wide temperature range from -55 to 175°C. Its low reverse leakage current of 1 microampere and a maximum Zener impedance of 10 ohms ensure stable and efficient circuit performance.
Constructed with a low profile surface-mount package, it is ideal for compact designs and high-density PCBs. The device is compliant with automotive industry standard AEC-Q101 along with standards like J-STD-020 MSL level 1, J-STD-002, JESD 201 Class 2, and UL 94V-0 flammability rating, supporting reliable usage in automotive and industrial environments.
This Zener diode is RoHS compliant and halogen-free as per IEC 61249-2-21 standards, promoting eco-friendly manufacturing practices. The series BZD27C guarantees excellent stability and low leakage, well suited for industrial electronics, power management, and semiconductor applications.
Single diode configuration designed for voltage regulation and protection circuits. Maximum power dissipation of 1 watt ensures efficient performance. Surface mount package type SOD-123W suitable for compact PCB layouts.
Maximum operating temperature of 175°C and minimum of -55°C suitable for harsh environments. Low leakage current of 1μA contributing to energy efficiency. Test current rating of 50 mA for reliable operation. Maximum Zener impedance of 10 ohms ensuring stable voltage.
Compliant with AEC-Q101 automotive standards and various industry certifications. Halogen-free and RoHS compliant, promoting environmental safety. Ideal for industrial electronics, automotive systems, and power protection circuits. Explore more Zener Diodes and discrete semiconductor devices at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum power dissipation of this Zener diode is 1 watt, ensuring efficient performance in voltage regulation and protection circuits.
The nominal Zener voltage for this model is 200 volts, making it suitable for various voltage regulation applications.
The package type of this Zener diode is SOD-123W, which is designed for surface mounting on compact PCBs.
The maximum Zener impedance is 10 ohms, ensuring stable voltage regulation during operation.
The test current rating for this model is 50 mA, which supports reliable operation in various applications.
Yes, this Zener diode is compliant with AEC-Q101 automotive standards, making it suitable for automotive applications.
This Zener diode has a pin count of 2, consistent with its surface mount design.
The country of origin for this Zener diode is India.
The BZD27C200PWH is classified as a general purpose Zener diode, suitable for various voltage regulation and protection applications.
This diode is RoHS compliant and halogen-free as per IEC 61249-2-21 standards, promoting eco-friendly manufacturing practices.
