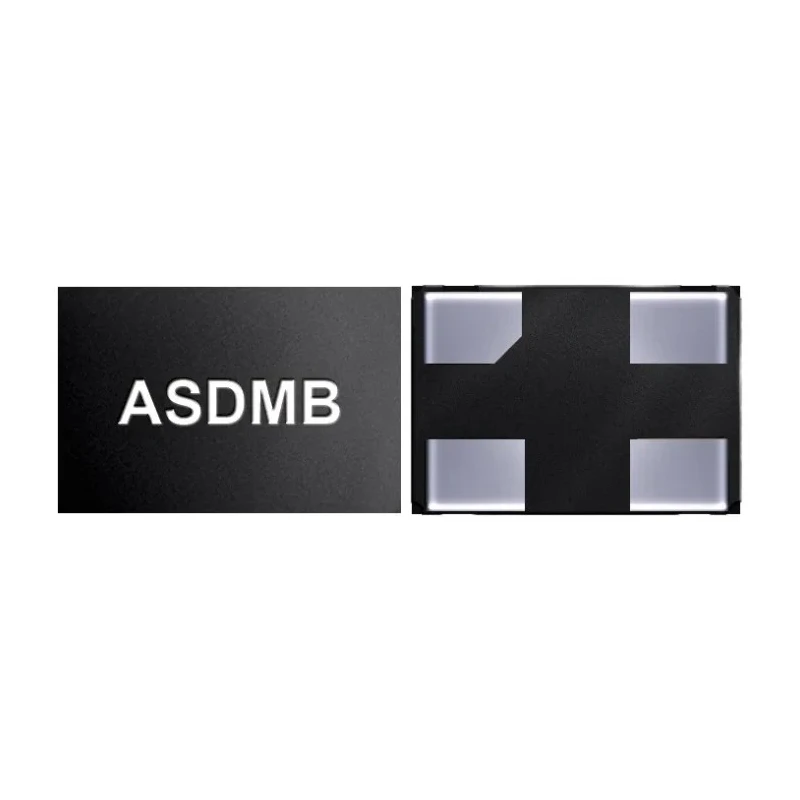

Abracon 26 MHz MEMS Oscillator, 4-Pin Surface Mount ±50 ppm ASDMB-26.000MHZ-LC-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 0.85mm |
| Length | 2.5mm |
| Model | ASDMB-26.000MHZ-LC-T |
| Packaging | Tape & Reel |
| Width | 2mm |
| Mount Type | Surface |
| Series | ASDMB |
| Maximum Operating Temperature | 85°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Maximum Output Frequency | 26MHz |
| Standards/Approvals | RoHS/RoHS II |
| Pin Count | 4 |
| Output Level | LVCMOS |
| Maximum Operating Supply Voltage | 3.3V |
| Minimum Operating Supply Voltage | 1.8V |
Key Features
- Operates within a supply voltage range of 1.8 V to 3.3 V.
- Designed for operating temperatures from -40°C to 85°C.
- Features low power consumption suitable for portable electronics and industrial applications.
- Output level is low-voltage CMOS (LVCMOS) compatible.
- Compact dimensions of 2.5 mm length, 2 mm width, and 0.85 mm height.
- Equipped with tape and reel packaging for automated pick and place assembly.
- Ideal replacement for crystal oscillators in consumer electronics and demanding industrial environments.
- Meets RoHS and RoHS II compliance standards.
Product Description
Abracon ASDMB-26.000MHZ-LC-T MEMS Oscillator is a high-reliability 26 MHz device designed for 4-pin surface mount applications. This oscillator ensures precise frequency stability of ±50 ppm over an operating temperature range from -40°C to 85°C, making it suitable for industrial, military, and commercial electronics.
The MEMS technology provides a robust alternative to traditional crystal oscillators with enhanced resistance to shock, vibration, and humidity. It operates with a low power consumption profile under supply voltages ranging from 1.8 V to 3.3 V and outputs a low-voltage CMOS (LVCMOS) signal compatible with modern electronic circuits.
The oscillator’s compact 2.5 mm by 2 mm footprint with a height of 0.85 mm allows its integration into low-profile equipment such as portable electronics, computers, peripherals, MP3 players, gaming devices, TVs, and DVRs. Its tape and reel packaging supports automated manufacturing processes.
This device is particularly useful in environments requiring durable clock oscillator solutions, including vibrant industrial equipment and demanding military electronics, although it is not certified for automotive standards.
Operates at 26 MHz frequency with ±50 ppm stability. Supply voltage range of 1.8 to 3.3 V supports versatile electronic designs. Wide operating temperature tolerance from -40°C to 85°C. Compact surface mount package with 4 pins.
Low power consumption tailored for portable and low-profile devices. RoHS and RoHS II compliant for environmental safety. Tape and reel packaging facilitates high volume assembly. Designed for demanding industrial, military, and consumer electronic applications.
Replacement alternative to traditional crystal oscillators. Explore advanced electronics components like the Abracon MEMS Oscillator in the EnvMart Electronics & Electricals category to find reliable solutions for your design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output frequency of this model is 26 MHz.
It operates within a supply voltage range of 1.8 V to 3.3 V.
This unit has a length of 2.5 mm, a width of 2 mm, and a height of 0.85 mm.
The operating temperature range is from -40°C to 85°C.
It provides a low-voltage CMOS (LVCMOS) output signal.
It is equipped with tape and reel packaging for automated pick and place assembly.
It meets RoHS and RoHS II compliance standards.
This oscillator has 4 pins.
It is designed for surface mount applications.
It is suitable for industrial, military, and consumer electronic applications, particularly in portable electronics.
It offers frequency stability of ±50 ppm over its operating temperature range.
MEMS technology provides enhanced resistance to shock, vibration, and humidity compared to traditional crystal oscillators.
