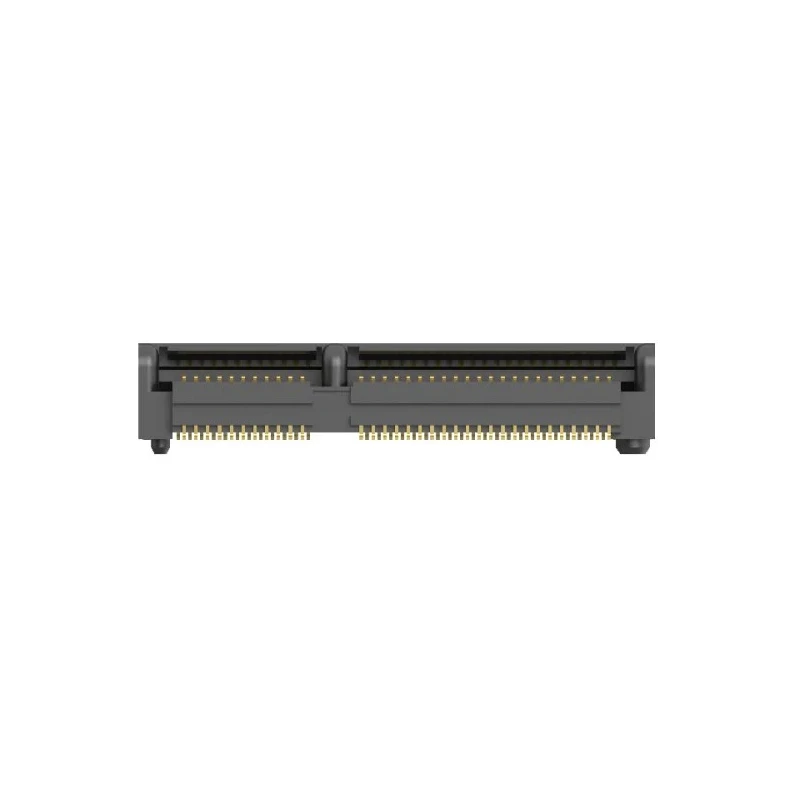

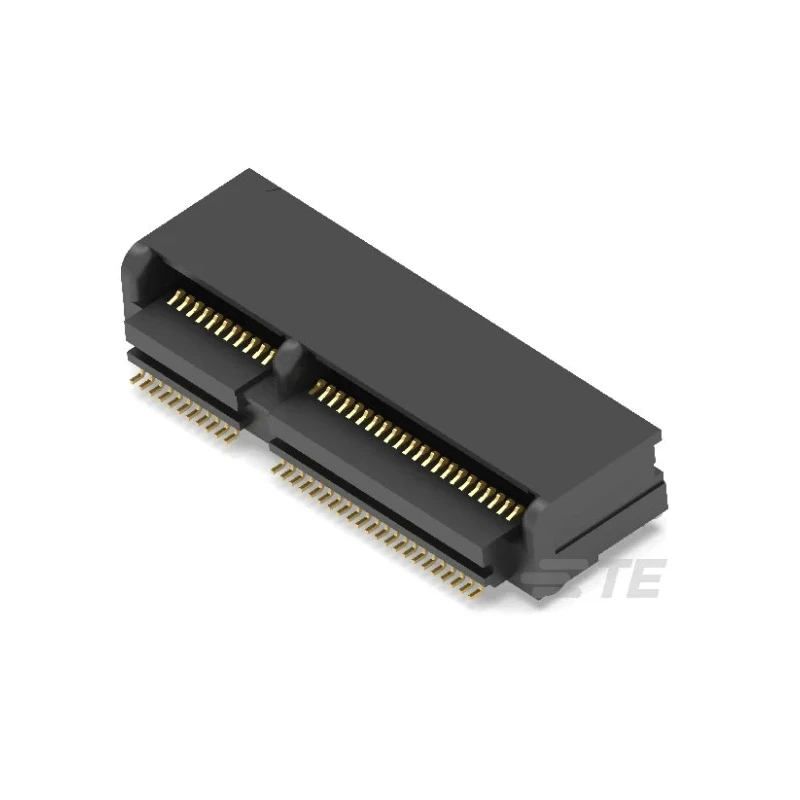

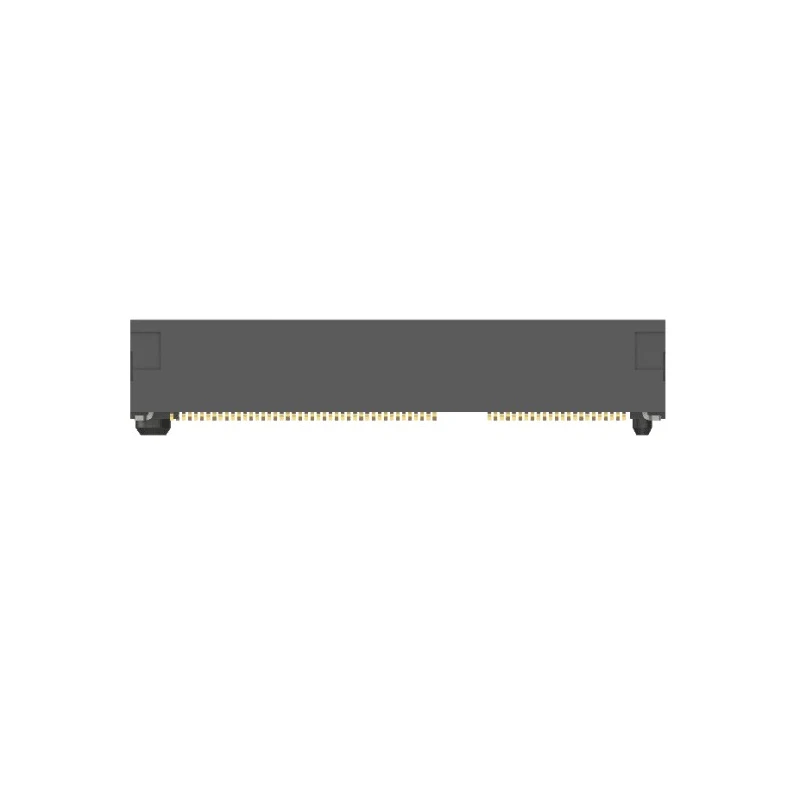

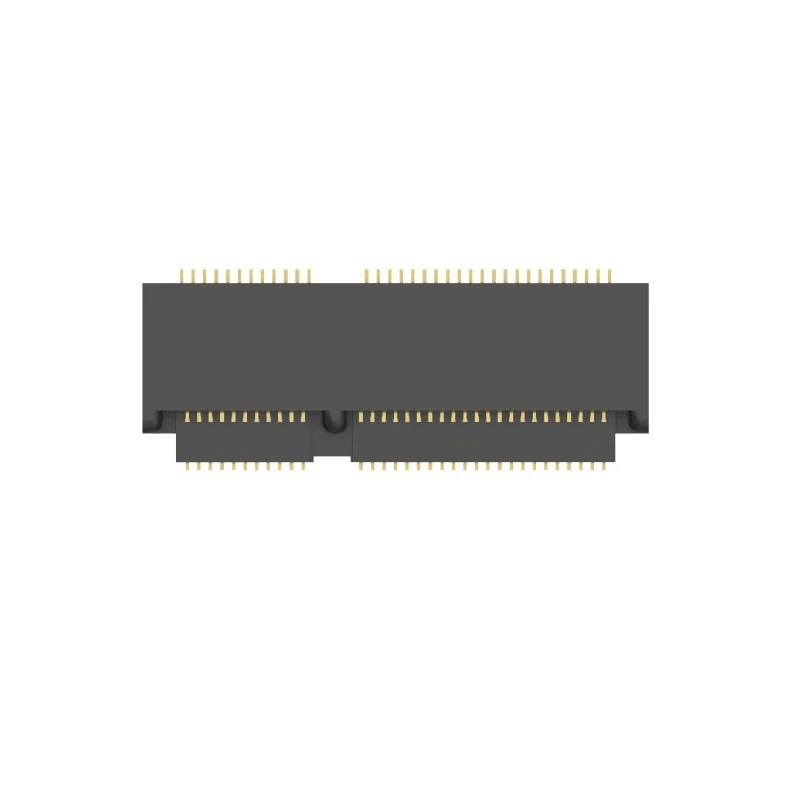

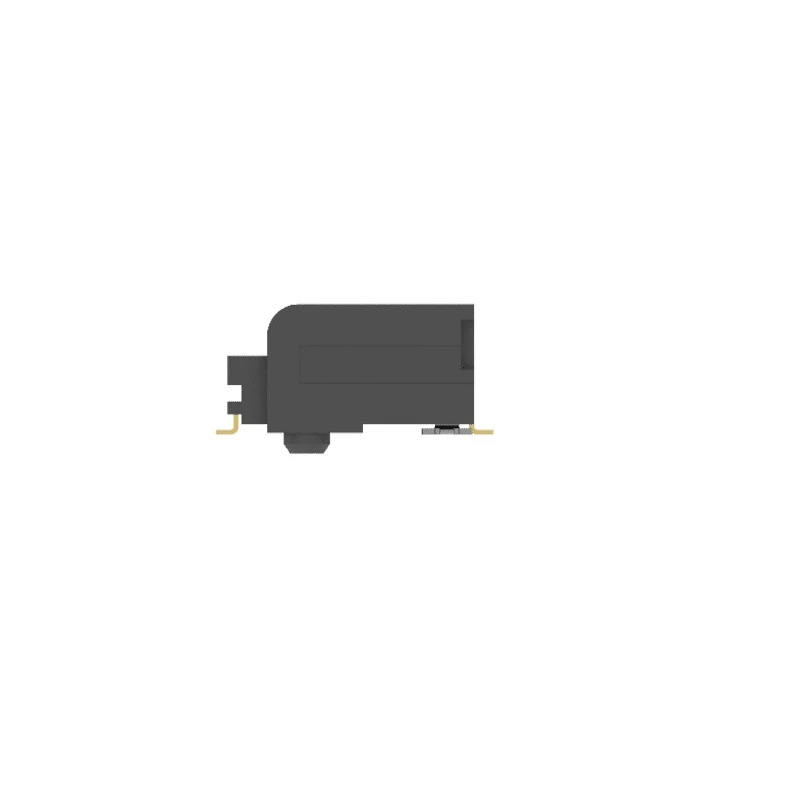

TE Connectivity M.2 NGFF Series Right Angle Edge Connector Female, Surface Mount, 67 Contacts, 0.5 mm Pitch, 2 2199230-4
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 50V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 500mA |
| Mount Type | Surface |
| Housing Material | High Temperature Thermoplastic |
| Contact Material | Gold |
| Series | M.2 NGFF |
| Termination Type | Solder |
| Maximum Operating Temperature | -40°C |
| Minimum Operating Temperature | -80°C |
| Number of Rows | 2 |
| Pitch | 0.5mm |
| Standards/Approvals | RoHS |
| Contact Plating | Gold |
| Number of Contacts | 67 |
| Contact Gender | Female |
| Connector Gender | Female |
| Card Type | PCI |
Key Features
- Right angle orientation for stacked or space-constrained PCB designs.
- Two rows of contacts providing reliable electrical connection.
- Gold plated contacts and gold contact material ensure durability and conductivity.
- Surface mount termination type with solder connection.
- Operating temperature range from -80°C to -40°C for harsh environment suitability.
- High temperature thermoplastic housing for stability and resistance.
- Contains 67 contacts suitable for PCI card type interfaces.
- Complies with RoHS environmental standards.
Product Description
TE Connectivity model 2199230-4 is a high-performance M.2 NGFF Series Right Angle Edge Connector, featuring a female socket designed for surface mounting on PCBs. This connector has 67 gold plated contacts arranged in two rows with a precise 0.5 mm pitch, making it ideal for PCI card type applications requiring reliable external electrical connections through PCB edge interfacing.
The right angle orientation supports designs with space constraints and allows for compact assembly. The housing is made of high temperature thermoplastic material providing durability and thermal resistance for demanding industrial and electronic environments.
Operating temperature ranges from -80°C to -40°C, enabling use in extreme conditions while supporting a voltage rating of 50 V and a current rating of 500 mA per contact. The contacts and plating feature gold material to ensure excellent conductivity and corrosion resistance.
This connector terminates via soldering onto the PCB for strong mounting. Additional design safety includes a keying way mechanism to prevent incorrect insertion. It complies fully with RoHS and ELV environmental standards, suitable for environmentally conscious electronic manufacturing.
Typical applications include industrial electronics, telecommunications, computer hardware, and embedded systems requiring compact and robust PCB edge connections. Right angle orientation for flexible PCB layout. Gold-plated, gold contact material for longevity and conductivity.
Surface mount solder termination for secure attachment. High-temp thermoplastic housing for durability. Keying way for secure, error-free mating. 67 contacts arranged in 2 rows at 0.5 mm pitch. Supports PCI card type edge connection standards.
Package contains one unit of TE Connectivity 2199230-4 edge connector. Country of origin: China. Explore more Edge Connectors and related electronics components on EnvMart for your industrial and manufacturing needs.
