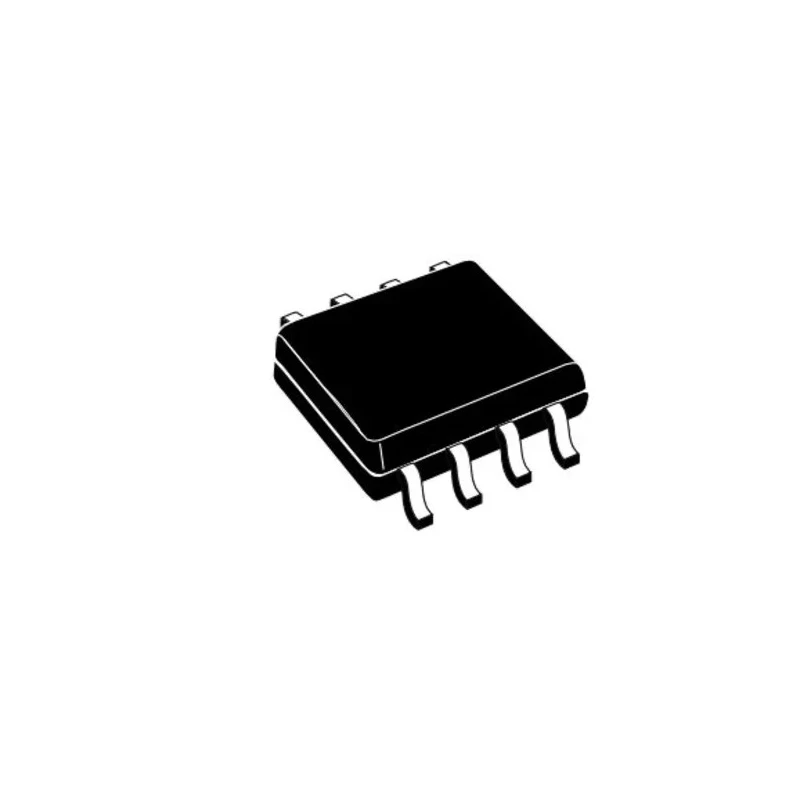

STMicroelectronics Operational Amplifier 560 MHz Gain Bandwidth Product, 8-Pin SO-8 Package TSB612IYDT
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.75mm |
| Length | 5mm |
| Model | TSB612IYDT |
| Width | 4mm |
| Mount Type | Surface |
| Series | TSB612 |
| Maximum Operating Temperature | 125°C |
| Package Type | SO-8 |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100, AEC-Q3 |
| Maximum Supply Voltage | 36V |
| Minimum Supply Voltage | 2.7V |
| GBP - Gain Bandwidth Product | 560MHz |
| Input Bias Current | 15 nA |
| Vos - Input Offset Voltage | 1 mV |
| Slew Rate | 0.2V/μs |
| Input Offset Current | 10 nA |
Key Features
- Dual channel operational amplifier with 8-pin SO-8 package.
- Wide supply voltage range from 2.7 V to 36 V.
- Low input offset voltage of 1 mV for high precision.
- Slew rate of 0.2 V/μs ensuring stable fast response.
- Low input bias current of 15 nA to minimize errors.
- Operating temperature range from -40°C to 125°C for reliability.
- Compact dimensions of 5 mm length, 4 mm width, and 1.75 mm height.
- Meets RoHS compliance and automotive standards AEC-Q100, AEC-Q3.
Product Description
The STMicroelectronics TSB612IYDT is a dual-channel operational amplifier featuring a high gain bandwidth product of 560 MHz. Housed in a compact 8-pin SO-8 surface-mount package, it is suitable for applications requiring high speed and low power consumption.
Designed to operate over a wide supply voltage range of 2.7 V to 36 V, this amplifier delivers rail-to-rail output performance with unity gain stability. The device ensures high precision with a low input offset voltage of 1 mV and low input bias currents, making it ideal for sensitive analog signal processing tasks.
Its slew rate of 0.2 V/μs enables stable and accurate signal amplification. The operational amplifier is rated for use in harsh environments with an operating temperature range from -40°C to 125°C, and complies with RoHS and automotive quality standards AEC-Q100 and AEC-Q3.
The small footprint of the 5 mm length, 4 mm width, and 1.75 mm height SO-8 package makes it well suited for space-constrained PCB designs in automotive, industrial, and consumer electronics.
Dual Operational Amplifier channels in SO-8 surface mount package. Wide supply voltage from 2.7 V to 36 V ensures flexible power options. Low offset and bias currents for precise analog performance. High gain bandwidth product of 560 MHz for fast signal processing.
Meets strict automotive AEC-Q100 and RoHS environmental standards.
This amplifier is ideal for precision industrial, automotive, consumer electronics, and instrumentation applications. Its combination of speed, precision, and robust packaging supports diverse electronics design requirements.
Explore more semiconductor and amplifier components on EnvMart for enhanced electronics manufacturing solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TSB612IYDT has a gain bandwidth product of 560 MHz, making it suitable for high-speed applications.
It operates over a wide supply voltage range from 2.7 V to 36 V, providing flexibility for various applications.
The input offset voltage is 1 mV, which contributes to its high precision in analog signal processing.
The operational amplifier can operate within a temperature range of -40°C to 125°C, suitable for harsh environments.
The dimensions of the SO-8 package are 5 mm in length, 4 mm in width, and 1.75 mm in height.
This model features two channels, making it a dual-channel operational amplifier.
The slew rate is 0.2 V/μs, ensuring stable and fast response during signal amplification.
The input bias current is 15 nA, which helps minimize errors in signal processing.
It complies with automotive standards AEC-Q100 and AEC-Q3, ensuring reliability in automotive applications.
Yes, this operational amplifier meets RoHS compliance, indicating it adheres to environmental standards.
The TSB612IYDT is designed for surface mounting, suitable for compact PCB designs.
The input offset current is specified at 10 nA, which is important for maintaining signal integrity.
