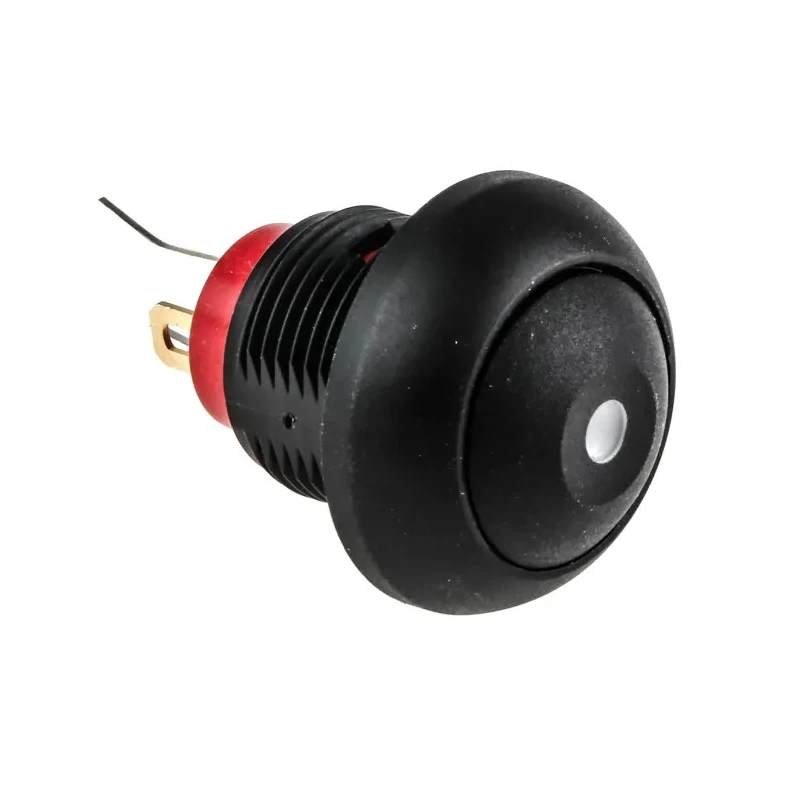

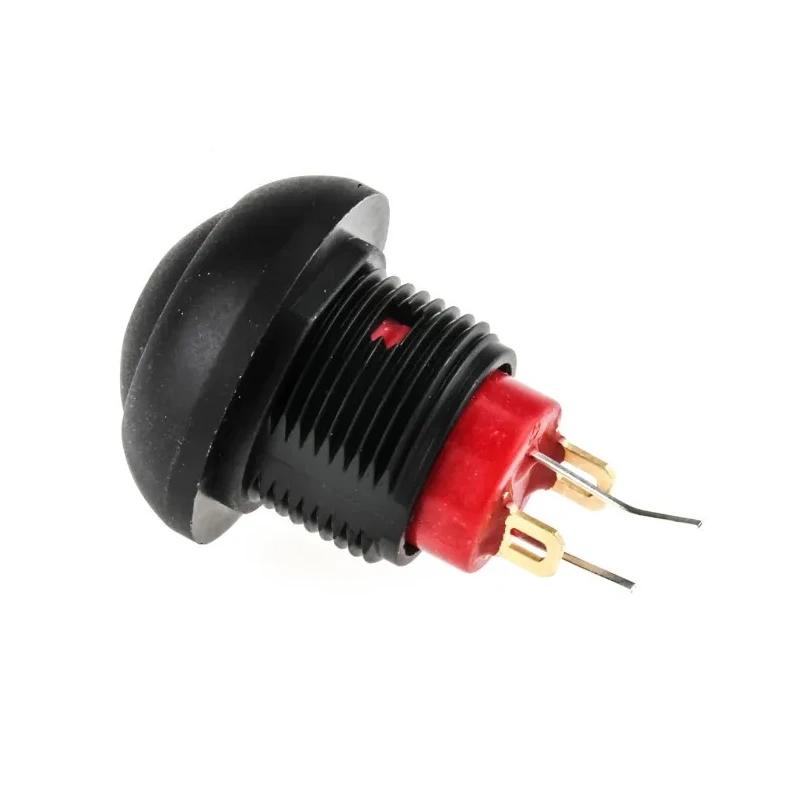

KNITTER-SWITCH Illuminated Miniature Momentary Push Button Switch, Panel Mount, 12.9 mm Cutout, SPST, Green LED DPWL1CGKG
Specifications
| Country of Origin | China |
|---|---|
| Brand | KNITTER-SWITCH |
| Model | DPWL1CGKG |
| IP Rating | IP67 |
| Mount Type | Panel |
| Series | DPWL |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Switch Configuration | On-Off |
| Panel Cutout Size | 12.9 mm |
| Terminal type | Solder |
| Standards/Approvals | CSA, UL |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 702-3570PBrand: KNITTER-SWITCHManufacturers Part No.: DPWL1CGKG |
| LED Colour | Green |
| Switch Operation | Momentary |
| Actuator Colour | Black |
| Actuator Style | Button |
| Switch Contact Current | 400mA |
| Contact AC Voltage | 250V ac |
Key Features
- Designed for momentary switch operation with a black actuator color.
- Features a green LED illumination to indicate switch status.
- Panel cutout size is 12.9 mm suitable for secure mounting.
- Configured as a Single Pole Single Throw (SPST) switch with solder terminals.
- Constructed with a thermoplastic case providing IP67 waterproof rating.
- Operates with a contact AC voltage of 250 V and current rating of 400 mA.
- Maximum operating temperature of 85°C ensures high reliability under elevated heat.
- Certified with CSA and UL standards for safety and quality compliance.
Product Description
KNITTER-SWITCH DPWL1CGKG illuminated miniature push button switch is engineered for reliable momentary switching in industrial and automation panel applications. The switch features a black button-style actuator with a bright green LED indicator to visually confirm operation status. Its panel mount design requires a precise 12.9 mm cutout, offering secure installation in control panels and machinery.
Manufactured with a durable thermoplastic case, this switch provides IP67 waterproof protection enabling usage in harsh environments where protection from dust and water ingress is critical. The SPST contact configuration supports single pole single throw On-Off switching, ideal for simple control circuits.
The switch is rated for a contact AC voltage of 250 V with a contact current of 400 mA. It is designed to endure a maximum operating temperature of 85°C, ensuring performance stability in demanding industrial settings. Certified by CSA and UL, the product meets recognized safety and quality standards.
The DPWL series offers a long mechanical life with minimum 1,000,000 switch cycles, ensuring durability and minimal maintenance. The switch terminals are solder type for secure and reliable electrical connections.
Momentary operation with black button actuator. Illuminated with green LED for status indication. 12.9 mm panel cutout size for mounting. SPST contact configuration for On-Off switching. Thermoplastic case with IP67 waterproof rating.
250 V AC contact voltage and 400 mA contact current. Maximum temperature rating of 85°C for reliable use. Certified to CSA and UL standards. Minimum 1,000,000 mechanical life cycles. Solder terminal connection type.
This miniature push button switch is suitable for electrical, automation, industrial control panels, manufacturing equipment, and related commercial applications where robust and compact switch solutions are required. Its sealed design and illumination enhance operational safety and user feedback.
Explore more Push Button Switches and related components at EnvMart for comprehensive industrial automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a Single Pole Single Throw (SPST) contact configuration, allowing for simple On-Off switching.
The maximum operating temperature for this switch is 85°C, ensuring reliable performance in elevated heat conditions.
This switch requires a panel cutout size of 12.9 mm for secure mounting in control panels.
The switch has an IP67 rating, providing waterproof protection against dust and water ingress.
It uses solder type terminals for secure and reliable electrical connections.
The switch is rated for a contact AC voltage of 250 V and a contact current of 400 mA.
The LED illumination on this model is green, providing a visual indication of the switch status.
The switch is constructed with a durable thermoplastic case, ensuring protection in various environments.
This switch is certified to CSA and UL standards, ensuring compliance with recognized safety and quality benchmarks.
The switch is designed for a minimum of 1,000,000 mechanical life cycles, providing longevity in use.
The actuator color is black, and it features a button style for momentary operation.
It is suitable for electrical, automation, industrial control panels, and manufacturing equipment applications.
