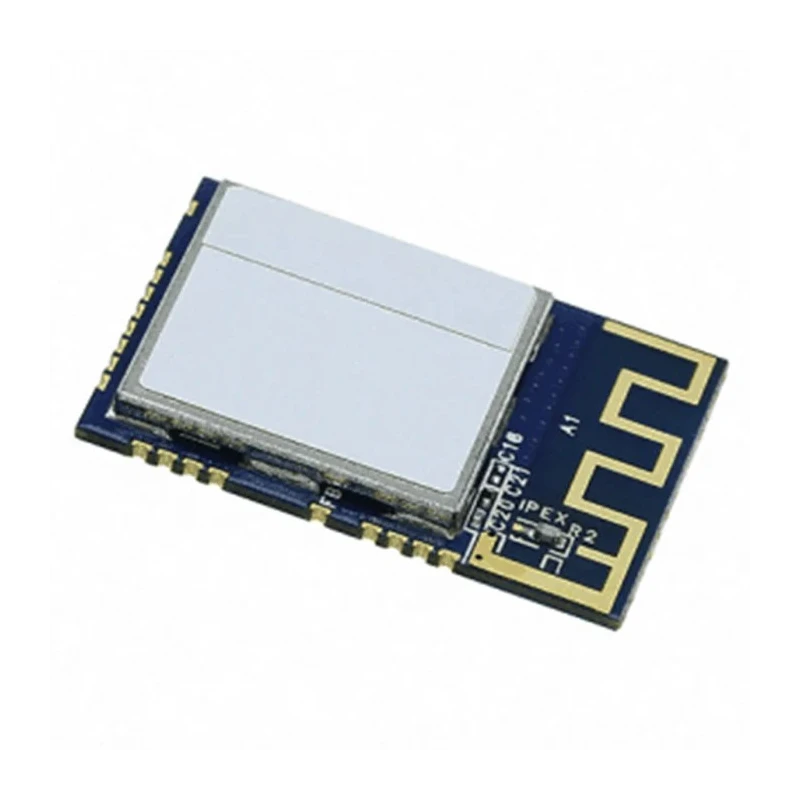

Microchip 3.6V WiFi Module IEEE 802.11 b/g/n SPI SDIO Interface ATWILC1000-MR110UB

Microchip ATWILC1000-MR110UB is a smart IoT link controller module supporting IEEE 802.11 b/g/n WiFi standards. It operates with a maximum supply voltage of 3.6V and features both SPI and SDIO interface types, facilitating seamless connection with Microchip AVR/SMART MCUs, SMART MPUs, and other processors requiring minimal resources.

The module's compact physical dimensions - 21.7mm length, 14.7mm width, and 2.1mm height - allow easy inclusion in small-scale or embedded applications. It supports multiple wireless security protocols including WPA, WPA2, and WEP to ensure data security. The device functions efficiently over a wide operating temperature range of -40°C to 85°C, making it suitable for demanding industrial environments.

ATWILC1000 features Wi-Fi Direct, station mode, and Soft-AP capabilities, enhancing flexibility for network setups. The integrated Power Amplifier, LNA, switch, and power management components ensure superior signal strength and energy efficiency. Compatibility with multiple operating environments such as Linux, RTOS, or bare-metal firmware extends its versatility.

This WiFi module supports single-stream 1x1 802.11n mode, enabling tested throughput of up to 46 Mbps UDP and 28 Mbps TCP/IP, ideal for IoT device communications requiring stable and fast wireless data transfer. Its on-chip memory management engine minimizes host processor load, enhancing system efficiency.

Designed and manufactured in Taiwan, Province of China, the Microchip ATWILC1000-MR110UB is optimal for industrial, manufacturing, IoT, smart appliances, and other professional wireless networking applications where robust, low-power WiFi connectivity is essential.

Operates at 3.6V maximum supply voltage ensuring low power consumption. Supports security protocols including WPA, WPA2, and WEP for robust wireless protection. Compact dimensions of 21.7mm length, 14.7mm width, and 2.1mm height facilitate easy integration.

Operating temperature range from -40°C to 85°C suits diverse industrial environments. Supports Wi-Fi Direct, station mode, and Soft-AP functionality for flexible connectivity options. Integrated Power Amplifier, Low Noise Amplifier, and Power Management enhance signal quality.

Compatible with Microchip AVR and SMART MCUs and other processors with minimal resource demand. Delivers data throughput up to 46 Mbps UDP and 28 Mbps TCP/IP in 1x1 802.11n mode. On-chip memory management reduces host processing load during operation.

Ideal for IoT applications requiring reliable wireless communication.
