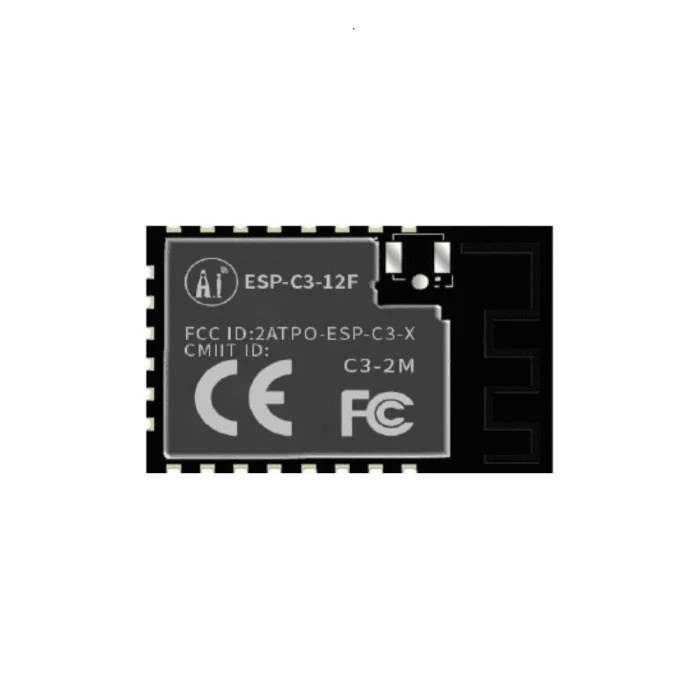

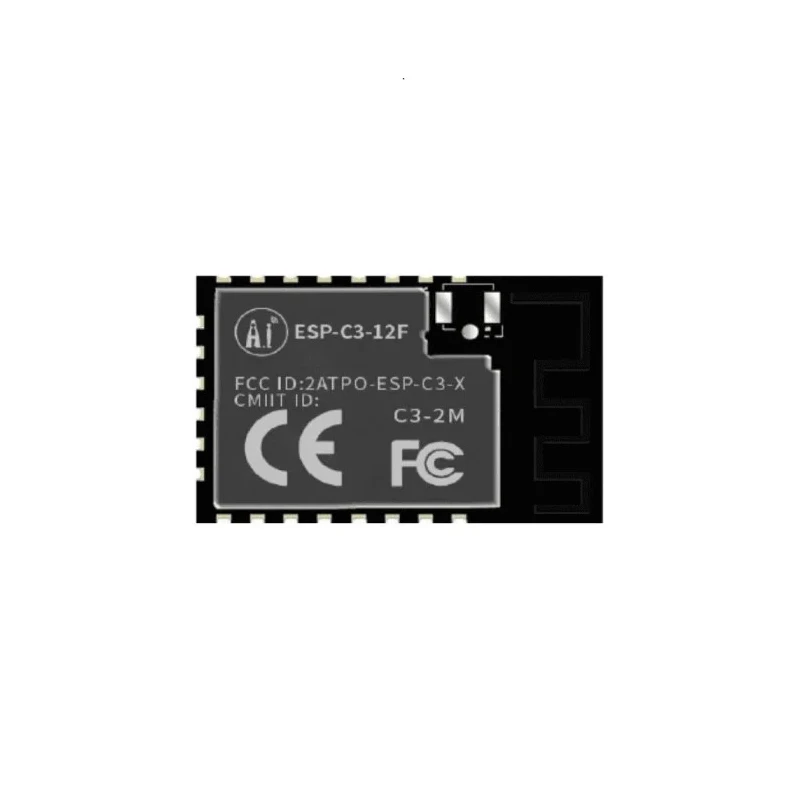

RF Solutions WiFi Module 3.6V dc 2400MHz AES, WEP Supported Security, ADC GPIO I2C SPI UART Interfaces ESP32-C3-12F
Specifications
| Country of Origin | China |
|---|---|
| Frequency | 2400MHz |
| Brand | RF Solutions |
| Height | 3.1mm |
| Length | 24mm |
| Model | ESP32-C3-12F |
| Width | 16mm |
| Minimum Operating Temperature | -40°C |
| Interface Type | ADC, GPIO, I2C, SPI, UART |
| Standards/Approvals | RoHS |
| Maximum Supply Voltage | 3.6V dc |
| Minimum Supply Voltage | 3V |
| Supported Security Standards | AES, WEP |
| Receiving Supply Current | 500mA |
Key Features
- Operates with a minimum supply voltage of 3V and a maximum of 3.6V dc.
- Features a 32-bit RISC-V single-core processor clocked up to 160 MHz for efficient processing.
- Supports multiple interfaces including ADC, GPIO, I2C, SPI, and UART.
- Built-in security supports AES and WEP standards for secure wireless communication.
- Compact dimensions of 24mm length, 16mm width, and 3.1mm height for easy integration.
- Supports multiple wireless modes including STA/AP and BLE 5.0 with data rates up to 150 Mbps.
- Boasts low power consumption with deep sleep current less than 5 µA for efficient IoT deployments.
- Equipped with 400 KB SRAM, 384 KB ROM, and integrated temperature sensor for advanced applications.
Product Description
RF Solutions ESP32-C3-12F is a WiFi Module operating at 3.6V dc, designed for IoT, mobile devices, wearable electronics, and smart home applications. It supports Wi-Fi IEEE802.11b/g/n and Bluetooth Low Energy 5.0, ensuring versatile wireless connectivity.
This module features a 32-bit RISC-V single-core processor with an operating frequency of up to 160 MHz, backed by 400 KB SRAM and 384 KB ROM, enabling efficient execution of embedded applications.
The ESP32-C3-12F offers multiple interfaces including ADC, GPIO, I2C, SPI, and UART, facilitating easy integration with diverse peripherals and sensors. It supports security standards AES and WEP, providing secure data transmissions over wireless networks.
With dimensions of 24mm length, 16mm width, and 3.1mm height and an SMD-22 package, this compact module fits seamlessly into embedded devices. Operating voltage ranges from 3V minimum to 3.6V maximum with a receiving supply current of 500mA and minimum operating temperature of -40°C, making it suitable for robust environments.
The module supports multiple wireless modes such as STA, AP, and combined STA+AP, along with Bluetooth Low Energy data rates up to 2 Mbps. Its low power consumption extends device battery life with sleep currents under 5 microamperes.
RoHS compliance ensures this product meets environmental and safety standards. Manufactured in China, the ESP32-C3-12F module is ideal for industrial, manufacturing, laboratory, construction, water treatment, agricultural, and commercial wireless communication applications.
Operates on Wi-Fi IEEE802.11b/g/n and BLE 5.0 protocols. Supports a 32-bit RISC-V single-core processor up to 160 MHz. Equipped with ADC, GPIO, I2C, SPI, UART interfaces. Includes temperature sensor and pulse counter features.
Compact size with SMD-22 packaging. Low power sleep mode with less than 5 µA current. Supports advanced network configurations and firmware upgrades via UART. Secure wireless data transmission with AES and WEP encryption.
Suitable for smart home, IoT, wearable electronics, and mobile device applications. Discover more Electronic Components and wireless modules in the Electronics & Electricals category on EnvMart for your industrial and commercial project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The operating voltage for this module ranges from a minimum of 3V to a maximum of 3.6V dc.
It has compact dimensions of 24mm in length, 16mm in width, and 3.1mm in height.
The module supports AES and WEP standards for secure wireless communication.
The maximum receiving supply current is 500mA.
The minimum operating temperature for this unit is -40°C, making it suitable for robust environments.
It operates at a frequency of 2400MHz, supporting Wi-Fi IEEE802.11b/g/n protocols.
This model features a 32-bit RISC-V single-core processor clocked up to 160 MHz for efficient processing.
The deep sleep current consumption is less than 5 µA, which helps extend battery life in IoT applications.
It is ideal for applications in IoT, mobile devices, wearable electronics, and smart home systems.
Yes, it is RoHS compliant, ensuring it meets environmental and safety standards.
The module supports multiple wireless modes including STA, AP, and combined STA+AP, along with BLE 5.0.
