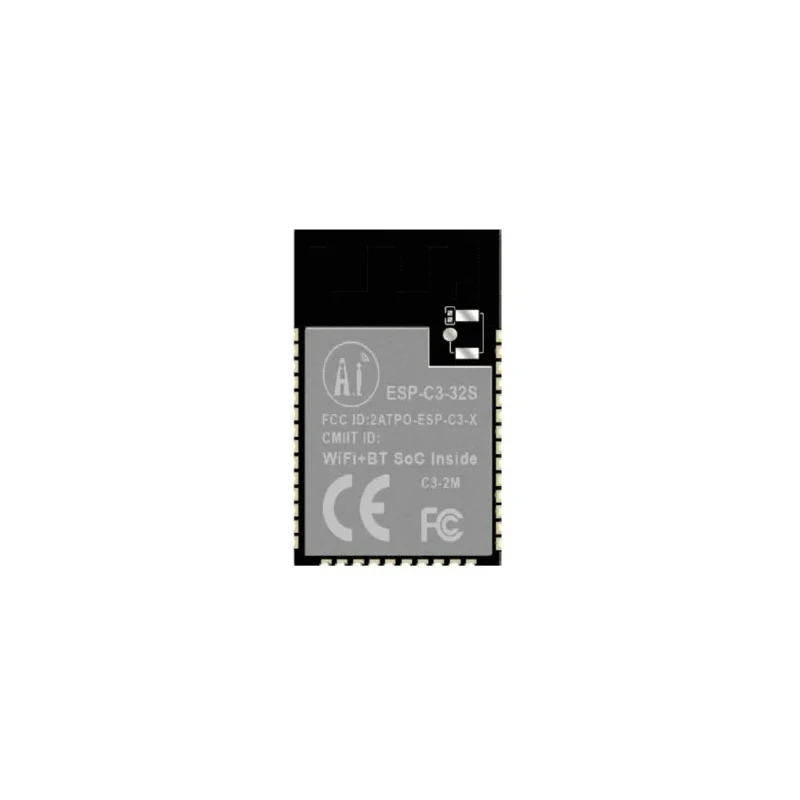

RF Solutions WiFi Module ESP32-C3-32S 3.6V DC 2.4GHz BLE 5.0 IoT Communication Module ESP32-C3-32S

RF Solutions ESP32-C3-32S WiFi Module ESP32-C3-32S operates at 3.6V DC and functions at a 2.4GHz frequency, combining Wi-Fi and Bluetooth Low Energy (BLE) 5.0 connectivity. This module is highly suitable for Internet of Things (IoT), mobile devices, wearable electronics, smart home systems, and various embedded applications requiring wireless communication.

The Heart of the module is the ESP32-C3 chip, featuring a 32-bit RISC-V single-core processor running at up to 160 MHz. It integrates 400 KB SRAM and 384 KB ROM with an 8 KB RTC SRAM, supporting efficient and power-optimized operation.

This Wi-Fi module supports IEEE 802.11b/g/n standards with a maximum data rate of 150 Mbps in 1T1R mode, along with BLE 5.0 supporting multiple data rates from 125 kbps to 2 Mbps. Its interfaces include ADC, GPIO, I2C, SPI, UART, PWM, temperature sensors, and pulse counters, making it versatile for extensive industrial and commercial use.

Designed for low power applications, it supports various sleep modes with deep-sleep current below 5 microamperes, suitable for battery-powered devices. The module also supports UART port local and remote firmware upgrades (FOTA), facilitating easy updates and maintenance.

With dimensions of 25.5 mm length, 18 mm width, and 3.1 mm height, housed in an SMD-38 package, the module meets RoHS compliance and industrial operating temperatures from -40°C to +85°C.

It supports multiple operational modes including Station (STA), Access Point (AP), and STA+AP mix mode, along with smart configuration protocols such as Smart Config (APP) and AirKiss (WeChat) for simplified and fast network setup on Android and iOS platforms.

The ESP32-C3-32S module includes a built-in 4 MByte Flash memory with support for external Flash versions, making it adaptable for different storage needs in embedded applications.

Ideal for industrial, smart home, manufacturing automation, and laboratory applications, this module provides reliable, low-power wireless connectivity in compact form factor. The core processor ESP32-C3 is a 32-bit RISC-V single-core with up to 160 MHz clock speed.

Supports Wi-Fi 802.11b/g/n with data rates up to 150 Mbps in 1T1R mode. Integrated BLE 5.0 with supported data rates of 125Kbps to 2Mbps. Interfaces include ADC, GPIO, I2C, SPI, UART, PWM, temperature sensor, and pulse counter.

Low power consumption with multiple sleep modes; deep sleep current less than 5 µA. Complies with RoHS standards and is RoHS approved. Module dimensions are 25.5 mm length, 18 mm width, and 3.1 mm height in an SMD-38 package.

Operating temperature range is -40°C to +85°C ensuring industrial reliability. Supports multiple modes including STA, AP, and STA+AP with smart configuration protocols for Android and iOS. Explore more Wi-Fi modules and connectivity solutions in the Electronics & Electricals category at EnvMart for your industrial and commercial applications.
