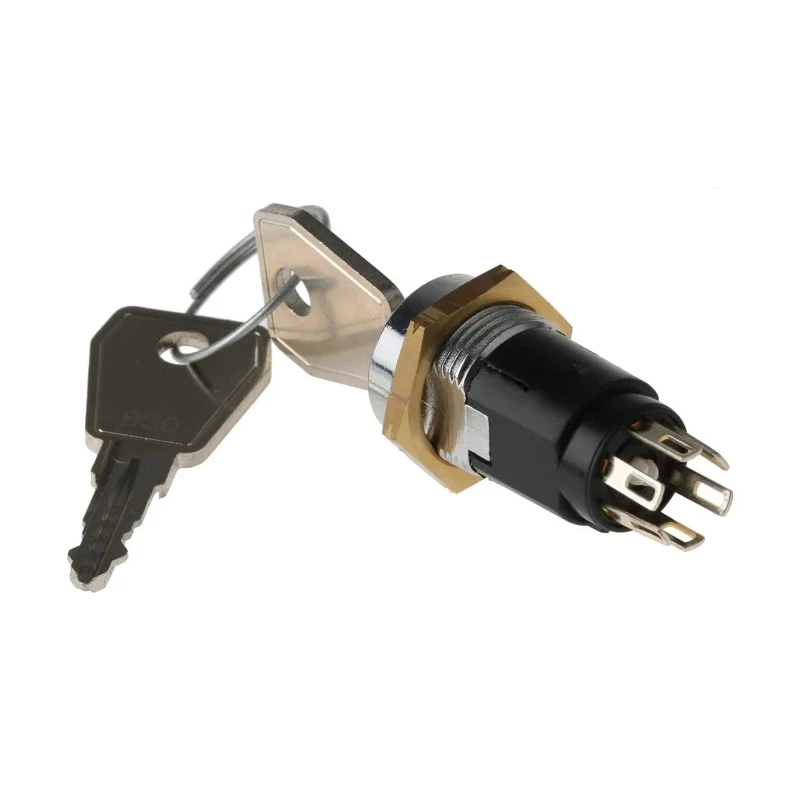

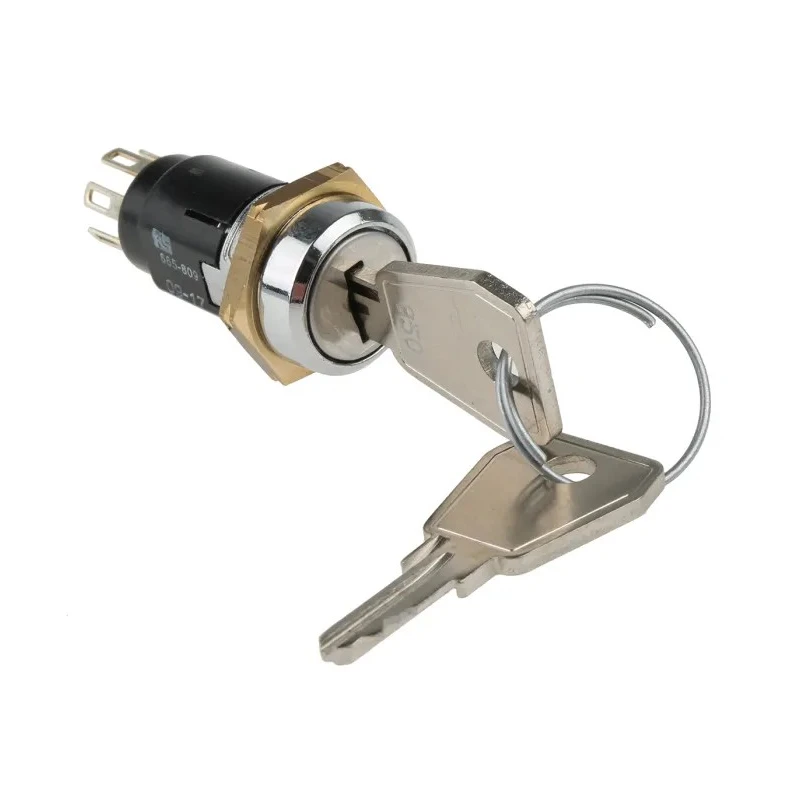

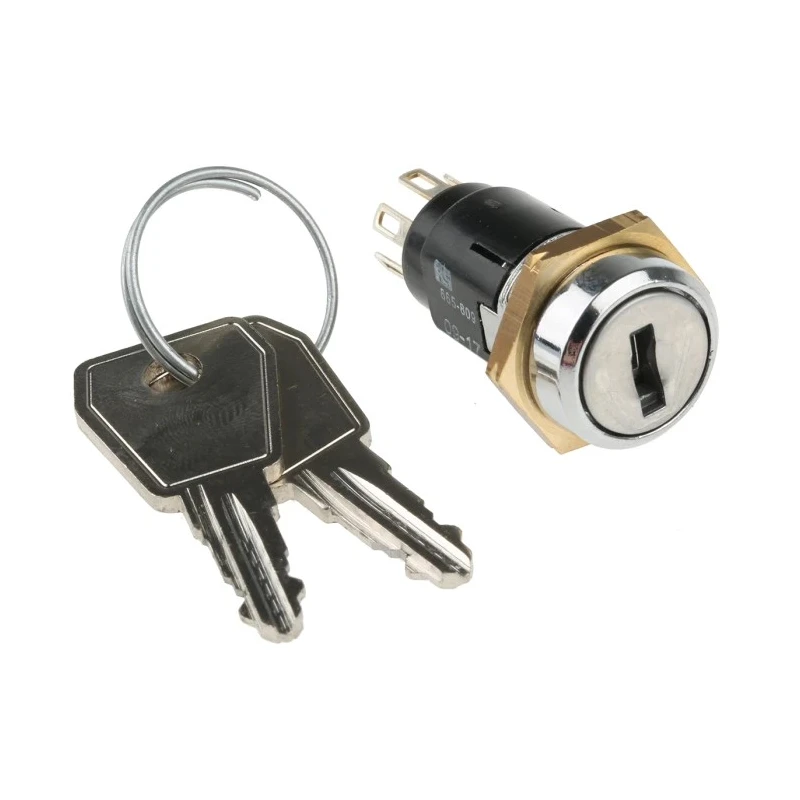

Lorlin Key Switch, Double Pole Change Over 5A 2-Position Common Key Round Bezel SRL5KS2850

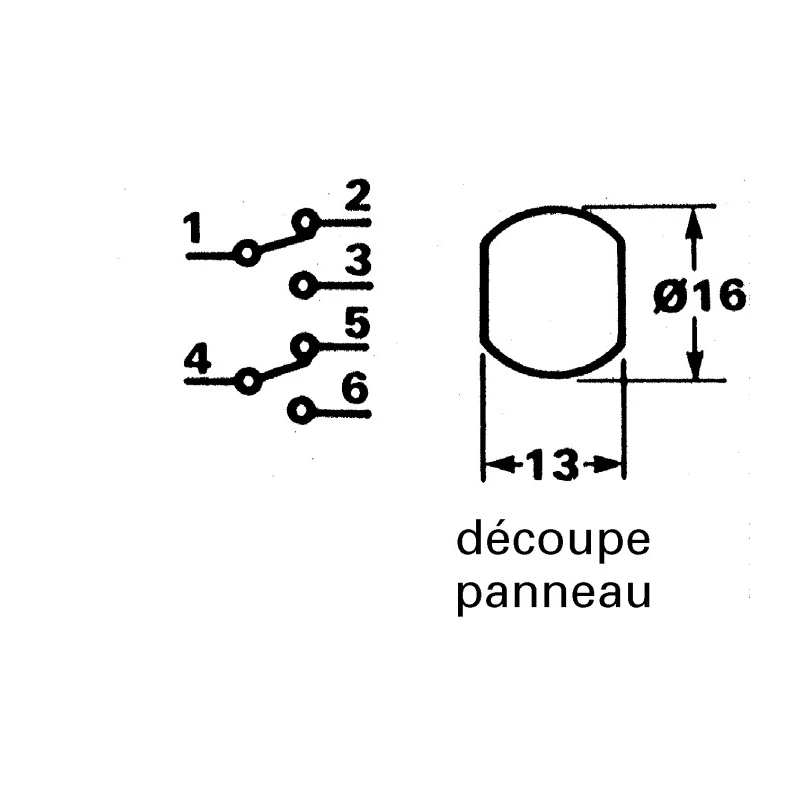

Lorlin SRL5KS2850 Key Switch is a high-quality miniature key-operated lock switch, designed with double pole change over (DPCO) contact to handle switching currents up to 5 amps. It is ideal for low voltage industrial and commercial electrical applications requiring controlled switching with security.

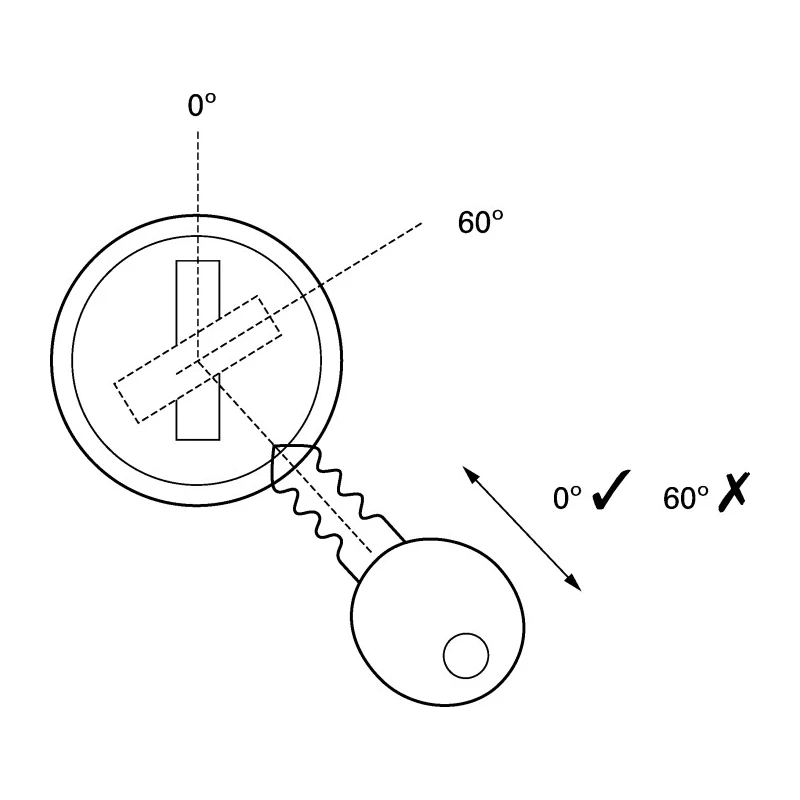

The key switch features a common key type configuration with key trapping for safety, allowing the key to be removed only in certain switch positions. The casing is robust, made from fibreglass reinforced polyamide which provides high mechanical strength and excellent resistance to wear.

This key switch supports contact voltages of 50V DC and 115V AC, with silver plated brass contacts ensuring reliable electrical conductivity and minimal contact resistance. The switch employs solder terminals for stable and reliable wiring connections.

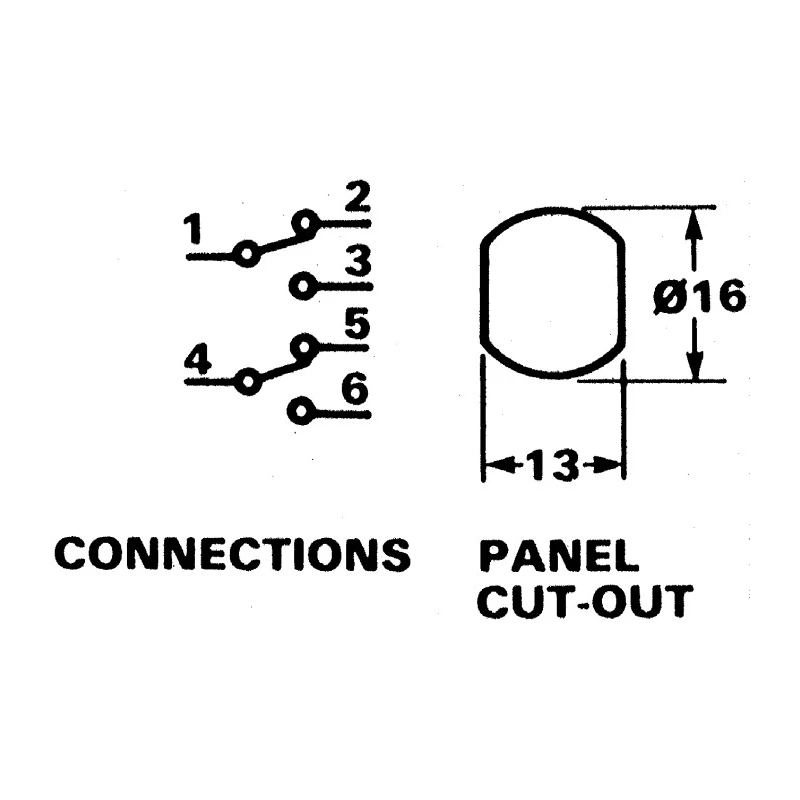

With a compact round bezel and minimal rear projection of 22.4mm behind the panel, it is well suited to applications where panel space is limited. The key index angle of 60 degrees provides precise and positive switching actions.

The mechanical life of this Lorlin key switch is rated at 10,000 operations, guaranteeing durability over extended use. It operates efficiently within a temperature range from -20°C to +65°C, making it suitable for diverse environmental conditions.

Typical applications include control panels, alarm systems, and lighting controls where secure and reliable switching is essential. Compact round bezel and small panel footprint optimize space efficiency. Durable fibreglass reinforced polyamide housing for longevity.

Silver plated brass contact material to enhance conductivity. Double pole change over contact configuration with 2 positions. Key trapping enabled for enhanced operational safety. Solder terminal type ensures secure connections.

Key index angle of 60 degrees for accurate switching. Rated for 5 amp switching current at 50V DC / 115V AC. Mechanical life of 10,000 actuations ensures reliability. Operating temperature range from -20°C to 65°C.

Lorlin products are recognized globally for reliability and quality, making this key switch an excellent choice for industrial, laboratory, manufacturing, HVAC, and electrical distribution applications. Explore other Key Switches and electrical control components on EnvMart for your project needs.
