| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.47mm |
| Length | 1mm |
| Model | BZX884S-C75-QYL |
| Mount Type | Surface |
| Series | BZX884S-Q |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1006BD-2 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS, AEC-Q101 |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 365mW |
| Diode Configuration | Single |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 50nA |
| Nominal Zener Voltage Vz | 75V |
| Zener Type | General Purpose |
| Maximum Zener Impedance | 500Ω |
| Typical Voltage Temperature Coefficient | 73.4mV/K |

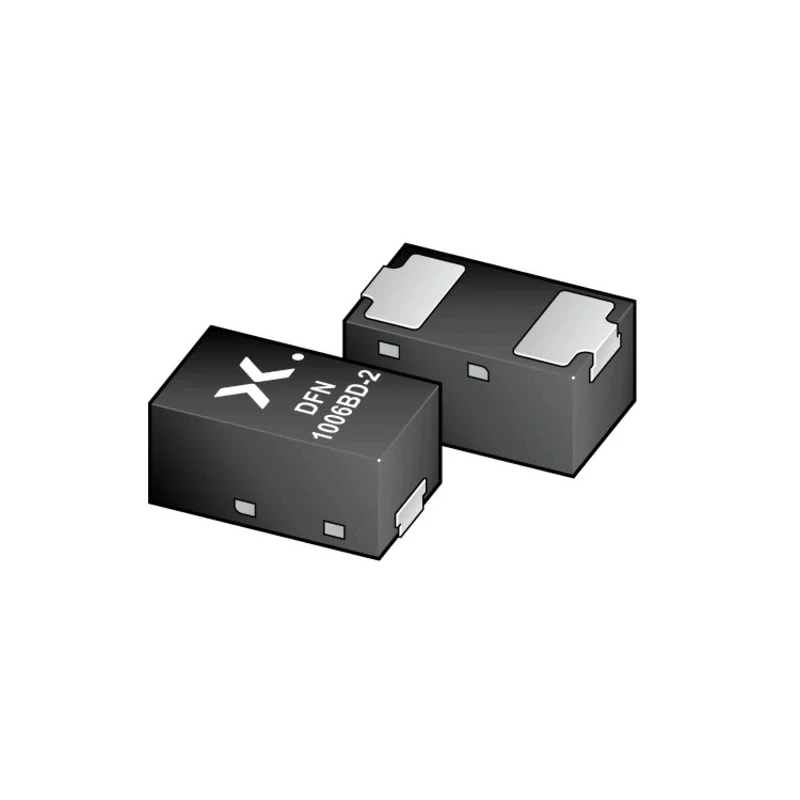

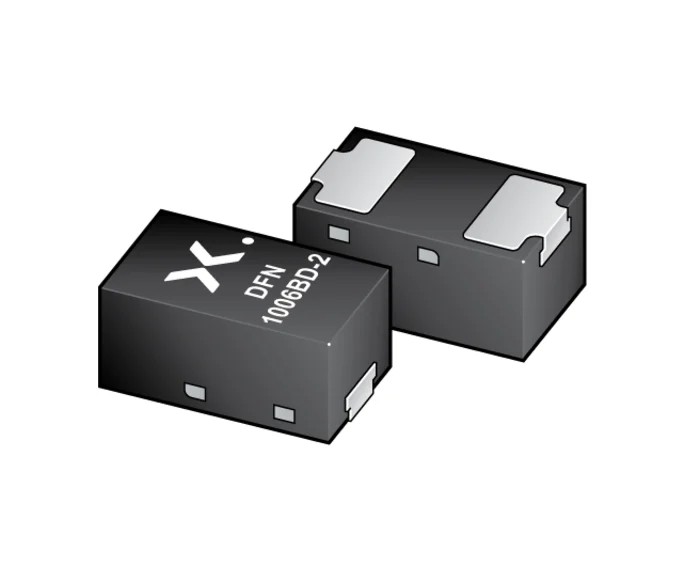

The Nexperia BZX884S-C75-QYL is a general purpose Zener diode designed for voltage regulation in electronic circuits, packaged in an ultra-compact DFN1006BD-2 surface mount package. This single diode configuration offers precise 75 V nominal Zener voltage with ±2% tolerance and a maximum power dissipation rating of 365 mW.
This diode operates reliably over a wide temperature range of -55°C to 150°C, making it ideal for industrial, automotive, and commercial electronics applications. The device complies with the automotive grade standard AEC-Q101, ensuring superior quality and reliability for high-demand environments.
The surface mount package features side-wettable flanks, facilitating high-density PCB assembly. With a tiny footprint of 1 mm length and 0.47 mm height, it fits in compact designs without compromising electrical performance. The maximum reverse leakage current is extremely low at 50 nA, and the Zener impedance is limited to 500 Ω, ensuring efficient voltage stabilization.
This diode is suited for voltage clamping, voltage reference, and voltage regulation circuits in automotive electronics, power supplies, and signal conditioning modules. Its robust specifications make it a versatile component in semiconductor discrete devices.
Single diode, 2-pin surface mount for compact PCB layouts. Maximum power dissipation: 365 mW. Nominal Zener voltage: 75 V with ±2% tolerance. Operating temperature range: -55°C to 150°C. Compliant with RoHS and automotive standard AEC-Q101.
Package Type: DFN1006BD-2 with side-wettable flanks. Low reverse leakage current and controlled impedance. Typical temperature coefficient: 73.4 mV/K.
Choose the Nexperia BZX884S-C75-QYL for dependable voltage regulation in automotive, industrial, and commercial semiconductor applications. Explore more Zener Diodes and semiconductor components on EnvMart.
