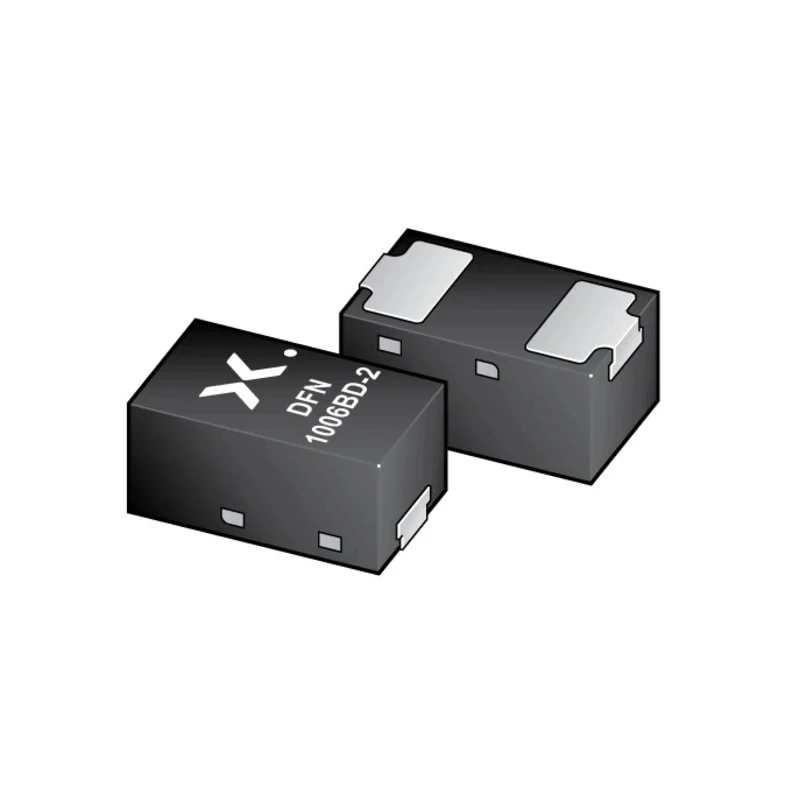

Nexperia General Purpose Zener Diode 24 V 365 mW Surface Mount 2-Pin DFN1006BD-2 BZX884S-C24-QYL

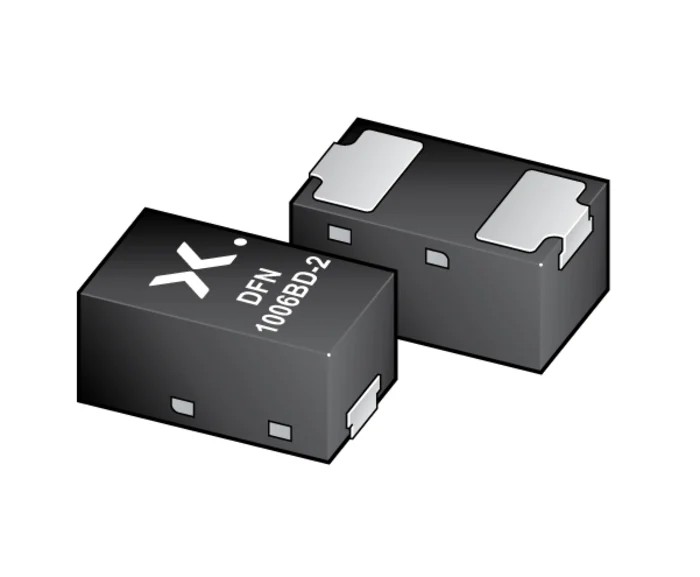

Nexperia BZX884S-C24-QYL is a general purpose zener diode designed for voltage regulation in electronic circuits with a nominal zener voltage of 24 V and maximum power dissipation of 365 mW. The diode comes in a compact DFN1006BD-2 surface mount package featuring two pins, suitable for high-density PCB layouts.

This single-element diode offers a tight voltage tolerance of ±2%, ensuring accurate voltage limiting and protection applications. The device supports a wide operating temperature range from -55°C to 150°C, making it suitable for automotive and industrial environments compliant with the AEC-Q101 standard.

Nexperia's zener diode benefits from ultra-low reverse leakage current of 50 nA and a maximum zener impedance of 250 Ω, which contribute to efficient voltage regulation and minimal power loss. The test current is specified at 5 mA, and the typical voltage temperature coefficient is 18.4 mV/K, ensuring consistent performance over temperature variations.

Its ultra-small height of 0.47 mm and length of 1 mm permits space-saving surface mounting in compact devices. This diode is ideal for use in electronic components, semiconductor devices, discrete semiconductors, and other power and connector applications within automotive, industrial, and laboratory settings.

Single diode configuration optimized for surface mounting applications. Maximum power dissipation of 365 milliwatts ensures reliable operation in compact designs. Zener voltage tolerance maintains ±2% accuracy for precise voltage regulation.

Extremely low reverse leakage current of 50 nA for efficient performance. Automotive standards compliant, meeting AEC-Q101 reliability requirements. Compact package with height 0.47 mm and length 1 mm supports space-saving PCB design.

Operating temperature range from -55°C to 150°C ensures durability in harsh environments. Test current of 5 mA for standardized electrical characterization. Low maximum zener impedance of 250 ohms for effective voltage stabilization.

Typical voltage temperature coefficient of 18.4 mV/K supports thermal stability.

This zener diode is suitable for applications including electronic voltage regulation, automotive electronics, industrial controls, and power management systems, providing reliable, accurate voltage clamping and circuit protection in harsh environments.
