| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.47mm |
| Length | 1mm |
| Model | BZX884S-C24-QYL |
| Mount Type | Surface |
| Series | BZX884S-Q |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1006BD-2 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS, AEC-Q101 |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 365mW |
| Diode Configuration | Single |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 50nA |
| Nominal Zener Voltage Vz | 24V |
| Zener Type | General Purpose |
| Maximum Zener Impedance | 250Ω |
| Typical Voltage Temperature Coefficient | 18.4mV/K |

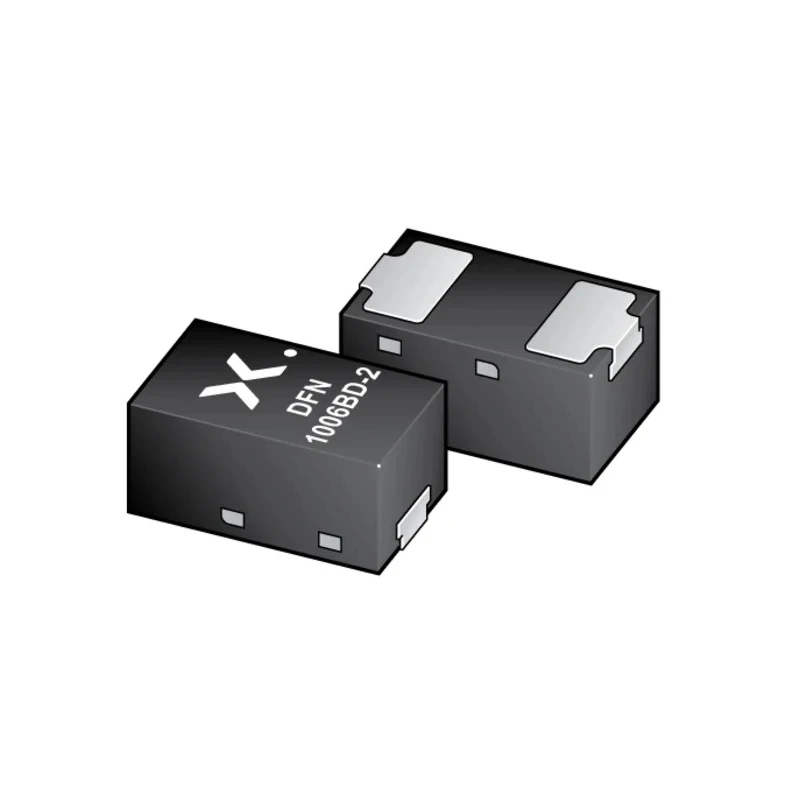

Nexperia BZX884S-C24-QYL Zener diode is a reliable general purpose discrete semiconductor designed for stable voltage regulation in industrial and automotive electronics. It is housed in a compact DFN1006BD-2 2-pin surface mount package with side-wettable flanks enabling efficient PCB assembly and soldering.
This diode features a nominal Zener voltage of 24 V with ±2% tolerance, making it suitable for protection circuits and voltage reference applications. The 365 mW power dissipation supports moderate power loads while maintaining high reliability and thermal stability across operating temperatures from -55°C to 150°C.
Additional electrical parameters include a test current of 5 mA, a maximum Zener impedance of 250 ohms, and a low reverse leakage current of 50 nA, ensuring minimal power loss and precise voltage clamping in critical circuits.
The small physical size with a 0.47 mm height and 1 mm length allows for high-density PCB integration, particularly beneficial in compact automotive and industrial devices. This diode series is qualified according to the AEC-Q101 automotive standard, providing assurance of performance in stringent environments.
The single element diode configuration supports diverse industrial uses including voltage regulation, voltage reference, and overvoltage protection. Its wide voltage range capability from 2.4 V up to 75 V covers multiple design requirements.
RoHS compliance makes it environmentally safe and suitable for global markets. Widely applied in automotive electronics to improve the safety and reliability of electronic control units and sensor circuits. AEC-Q101 qualification ensures robustness for harsh conditions and extended operational life.
