| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.47mm |
| Length | 1mm |
| Model | BZX884S-C22-QYL |
| Mount Type | Surface |
| Series | BZX884S-Q |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1006BD-2 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | AEC-Q101, RoHS |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 365mW |
| Diode Configuration | Single |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 50nA |
| Nominal Zener Voltage Vz | 22V |
| Zener Type | General Purpose |
| Maximum Zener Impedance | 250Ω |
| Typical Voltage Temperature Coefficient | 16.4mV/K |

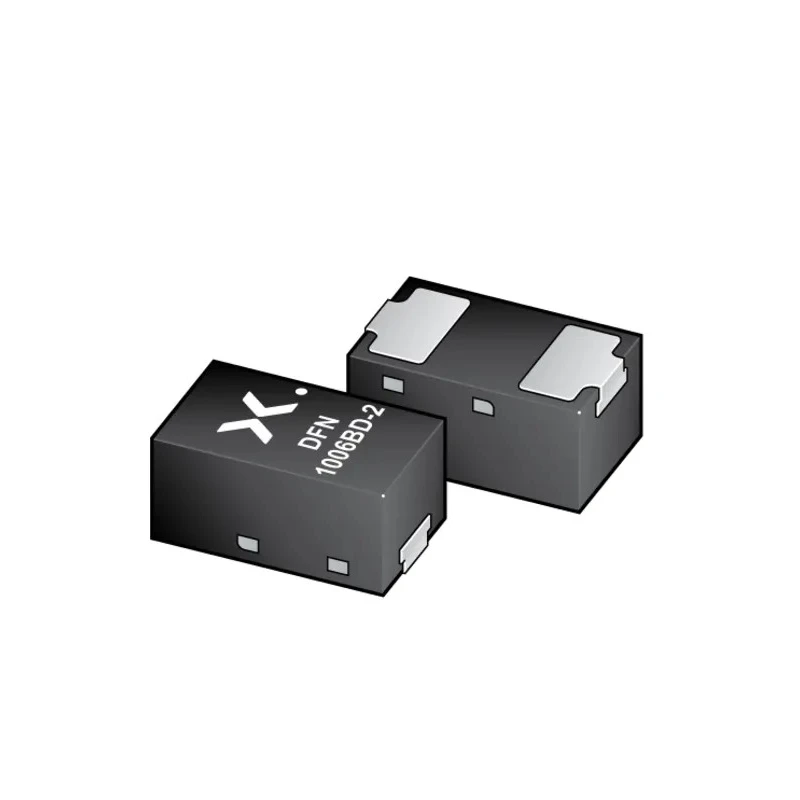

Nexperia BZX884S-C22-QYL is a general purpose Zener diode designed for voltage regulation in electronic circuits. It operates at a nominal Zener voltage of 22 V with a tight tolerance of 2 %, delivering reliable voltage reference in various industrial and automotive applications.
This diode is packaged in an ultra-small DFN1006BD-2 leadless surface mount device with side-wettable flanks, facilitating automated PCB assembly and compact layouts.
With a maximum power dissipation of 365 mW and a test current of 5 mA, it is well-suited for mid-range power management tasks. The device operates effectively across a wide temperature range from -55°C to 150°C, meeting stringent automotive grade AEC-Q101 qualification and RoHS compliance requirements.
The low maximum reverse leakage current of 50 nA enhances circuit efficiency by minimizing unintended current flow. Physical dimensions of 0.47 mm height and 1 mm length support high density component placement on modern circuit boards.
Its typical voltage temperature coefficient of 16.4 mV/K ensures stable behavior in thermal varying environments, making it ideal for automotive, industrial, laboratory, and manufacturing applications requiring precise voltage control.
This diode is widely used in automotive electronics, power supplies, and voltage stabilization circuits. Its surface mount package facilitates integration in automated assembly processes. Compliance with AEC-Q101 qualification ensures suitability for harsh environmental conditions.
The product supports applications in manufacturing, testing, and design of electronic control units. Set contains a single 2-pin Zener diode packaged on a reel for efficient production line usage. Explore more semiconductor components and Zener Diodes at EnvMart to enhance your electronic designs and industrial solutions.
