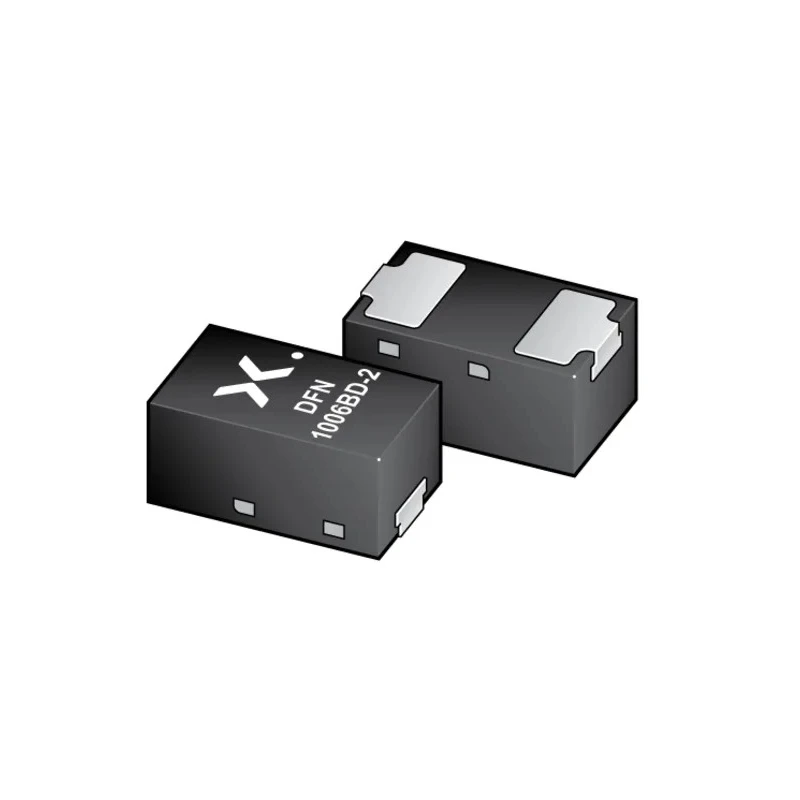

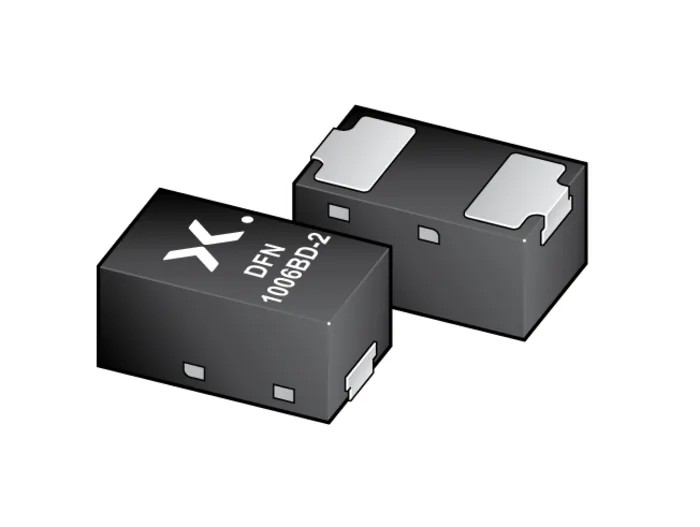

Nexperia General Purpose Surface Mount 7.5 V 365 mW Zener Diode 2 % Tolerance 2-Pin DFN1006BD-2 BZX884S-B7V5-QYL

The Nexperia BZX884S-B7V5-QYL is a single-element general-purpose Zener diode designed for surface mount technology applications, delivering reliable voltage regulation at a nominal Zener voltage of 7.5 V and a maximum power dissipation rating of 365 mW. Packaged in an ultra-compact 2-pin DFN1006BD-2 format, it optimizes PCB area while maintaining robust electrical performance suited to industrial and automotive electronics environments.

This diode features a tight voltage tolerance of ±2%, ensuring precision in voltage reference and overvoltage protection circuits. It operates over a broad ambient temperature range from -55°C to 150°C, making it ideal for demanding conditions found in automotive systems and industrial machinery. Its maximum reverse leakage current of 1 microampere supports minimal leakage power losses, enhancing circuit efficiency.

The device carries the AEC-Q101 automotive standard certification, confirming quality and reliability for automotive electronics. Additionally, its RoHS compliance guarantees environmentally friendly manufacturing processes. Typical applications include voltage regulation, waveform clipping, voltage reference, and protection of sensitive components against voltage spikes within industrial, automotive, telecommunications, and consumer electronics sectors.

Single-element diode configuration for precise voltage regulation. Nominal 7.5 V Zener voltage with ±2% tolerance. Power dissipation rating of 365 mW for low-power applications. Compact surface mount DFN1006BD-2 package with 2 pins.

Operating temperature range from -55°C to 150°C suitable for harsh environments. Low maximum reverse leakage current of 1 μA to improve circuit stability. AEC-Q101 qualified for automotive use with RoHS environmental compliance.

Height 0.47 mm and length 1 mm for space-saving PCB design.

This Nexperia Zener Diode is ideal for use in industrial controls, automotive electrical systems, telecommunications equipment, and consumer electronics where reliable voltage stabilization is critical. Its compact size and robust electrical characteristics ensure that it remains efficient and durable in a variety of demanding environments. Browse our comprehensive Electronics & Electricals category to find this and other high-quality semiconductor components tailored to professional engineering needs.
