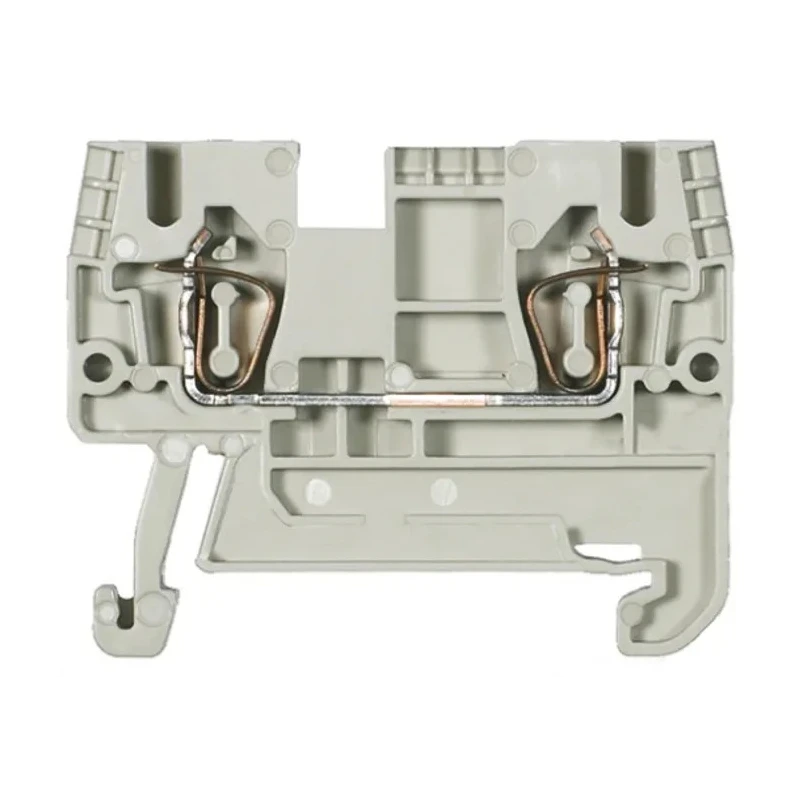

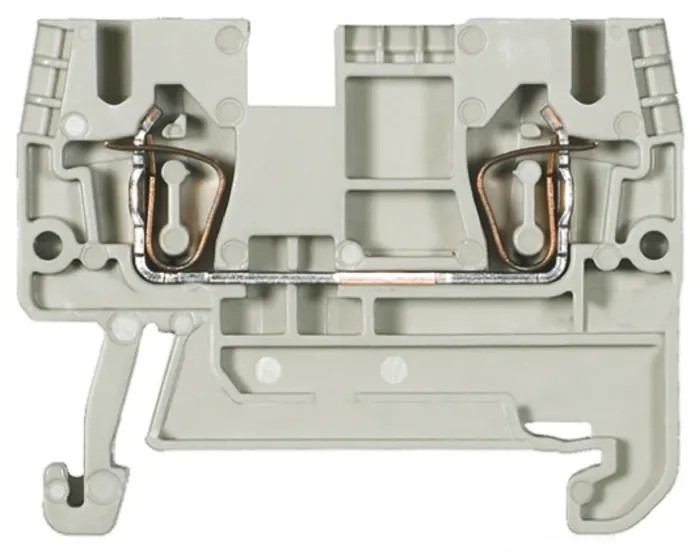

Wieland WKFN Series DIN Rail Terminal Block Grey, 2.5mm² Cable CSA, 1-Level, Spring Clamp, ATEX 56.703.0055.0

Free Delivery in India | Lowest Global Shipping Charges

Wieland WKFN Series DIN Rail Terminal Block Grey, 2.5mm² Cable CSA, 1-Level, Spring Clamp, ATEX 56.703.0055.0

Name: Wieland WKFN Series DIN Rail Terminal Block Grey, 2.5mm² Cable CSA, 1-Level, Spring Clamp, ATEX 56.703.0055.0
Brand: Wieland
SKU: 314980
Price: 1.65 USD
Availability: InStock



Category DIN Rail Terminal Block Brand Wieland Condition New

Specifications

Country of Origin	Germany
Voltage	800V
Brand	Wieland
Colour	Grey
Series	WKFN
Termination Type	Spring Clamp
Number of Levels	1
Number of Positions	2
Sub Type	Feed Through
Pitch	5mm
Hazardous Area Certification	ATEX
Standards/Approvals	ATEX, CAN-Ex, CSA, PTB, UR, USA Ex, VDE
Minimum Wire Size AWG	22AWG
Maximum Wire Size AWG	12AWG
Cable CSA	2.5mm²
Terminal Block Current	24A

Key Features

Constructed with a grey feed-through design for versatile connection.
Supports cable cross-sectional areas up to 2.5mm² for robust current handling.
Single-level terminal block with 2 positions suitable for compact installations.
Equipped with spring clamp termination ensuring reliable and vibration-proof connections.
Rated for a maximum current of 24 A and voltage of 800 V for industrial use.
Compliance with hazardous area certification ATEX for safety in explosive atmospheres.
Meets multiple standards including CAN-Ex, CSA, PTB, UR, USA Ex, and VDE approvals.
Designed and manufactured in Germany ensuring superior quality control.

Product Description

Wieland 56.703.0055.0 WKFN Series DIN Rail Terminal Block is a high-performance electrical component designed for secure and efficient power connections in industrial and commercial applications. It features a grey coloured feed-through design with a 2-position, single-level configuration, making it ideal for compact DIN rail mounting systems.

This terminal block can accommodate cables with a cross-sectional area of up to 2.5mm², supporting wire sizes from 22 AWG up to 12 AWG. The spring clamp termination type offers excellent vibration resistance and ensures a reliable connection without the need for screw maintenance, enhancing installation speed and durability.

Rated for 24 A current and up to 800 V voltage, this terminal block meets rigorous performance needs in various industries including manufacturing, electrical distribution, and automation. Its compliance with hazardous area certification ATEX and standards such as CAN-Ex, CSA, PTB, UR, USA Ex, and VDE guarantees safety and suitability for use in potentially explosive environments.

Manufactured in Germany, the product exemplifies quality engineering practices and robust material selection. This makes it well suited for demanding industrial environments requiring dependable electrical connections with enhanced safety standards.

Grey feed-through terminal block offers versatile installation options. 2.5mm² cable capacity supports common industrial wiring needs. Single-level, 2-position design fits tight space constraints on DIN rails. Spring clamp termination provides secure, maintenance-free wire connection.

24 A current and 800 V voltage rating support varied power requirements. Certified for hazardous locations complying with ATEX and multiple global standards. German origin ensures compliance with high manufacturing quality.

Wieland products like the WKFN series are trusted in electrical component solutions for automation, construction, and energy sectors. Explore the extensive range of DIN Rail Terminal Blocks available on EnvMart to find the ideal product for your application needs.
