| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.47mm |
| Length | 1mm |
| Model | BZX884S-B7V5-QYL |
| Mount Type | Surface |
| Series | BZX884S-Q |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1006BD-2 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | AEC-Q101, RoHS |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 365mW |
| Diode Configuration | Single |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 1μA |
| Nominal Zener Voltage Vz | 7.5V |
| Zener Type | General Purpose |
| Maximum Zener Impedance | 80Ω |
| Typical Voltage Temperature Coefficient | 2.5mV/K |

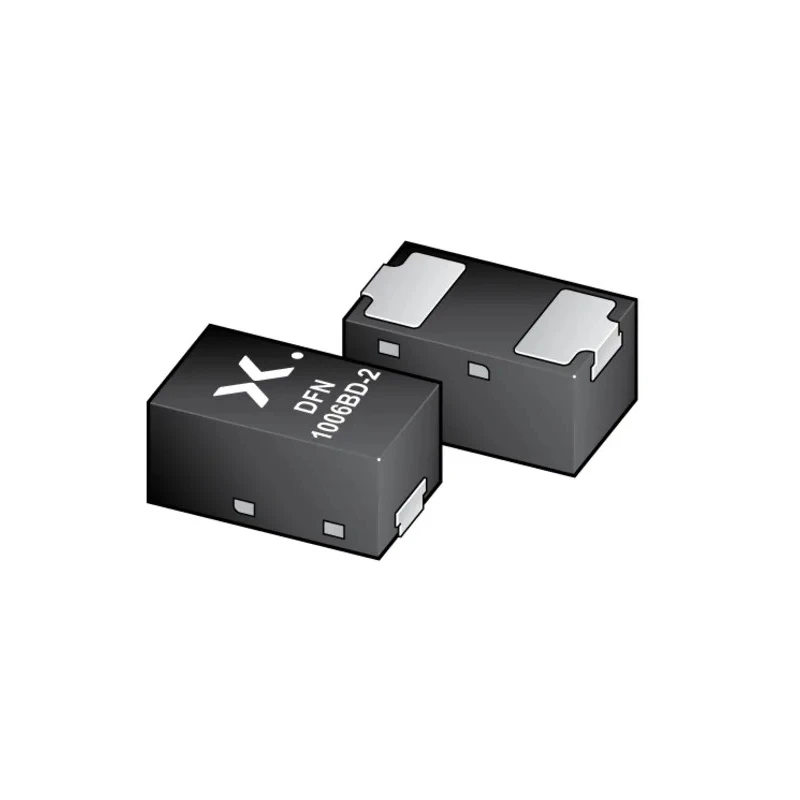

Nexperia BZX884S-B7V5-QYL is a general-purpose Zener diode designed for surface mount technology in a compact DFN1006BD-2 package measuring 1 mm in length and 0.47 mm in height. It delivers a nominal Zener voltage of 7.5 V and a maximum power dissipation of 365 mW, making it suitable for voltage regulation and reference applications in automotive and industrial electronics.
This diode is a single element with a 2-pin configuration and features a low reverse leakage current of 1 μA and maximum Zener impedance of 80 Ω, ensuring stable voltage operation under varying load conditions. The device is qualified according to the automotive standard AEC-Q101 and RoHS compliant, providing reliability and environmental safety.
The operating temperature range from -55°C to 150°C allows deployment in harsh environmental conditions typical in automotive and industrial sectors. The voltage temperature coefficient of 2.5 mV/K ensures minimal voltage variation with temperature change.

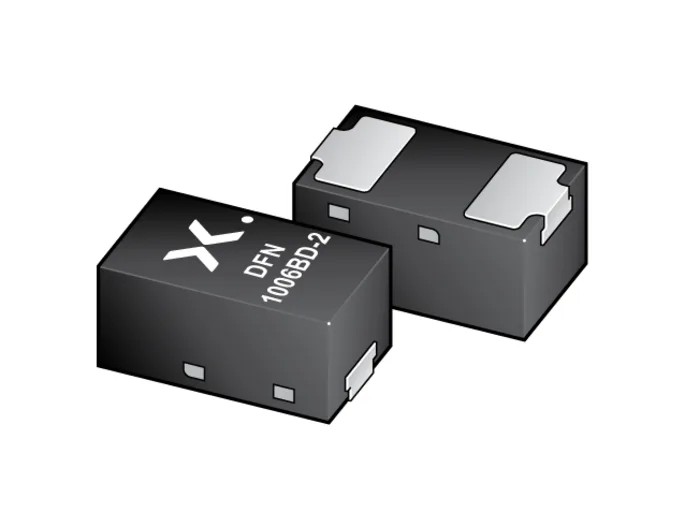

Package details include the DFN1006BD-2 leadless surface mount device with side wettable flanks, enabling reliable PCB soldering and mechanical stability. This diode series covers a wide voltage range (nominal 2.4 V to 75 V), with this specific model optimized at 7.5 V.
This Zener Diode is ideal for automotive electronics, industrial controls, and general power regulation circuits. It supports secure, compact PCB layouts in voltage clamping and voltage reference applications. Compliance with AEC-Q101 makes it suitable for critical automotive temperature and reliability standards.
The diode supports surface mount assembly processes for high-volume manufacturing. Its small size and robust performance are targeted at modern compact electronic device designs. For specialized electronic components and semiconductor solutions, explore the related categories at EnvMart for comprehensive selections and technical specifications.
