| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.47mm |
| Length | 1mm |
| Model | BZX884S-B18-QYL |
| Mount Type | Surface |
| Series | BZX884S-Q |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1006BD-2 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | AEC-Q101, RoHS |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 365mW |
| Diode Configuration | Single |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 50nA |
| Nominal Zener Voltage Vz | 18V |
| Zener Type | General Purpose |
| Maximum Zener Impedance | 225Ω |
| Typical Voltage Temperature Coefficient | 12.4mV/K |

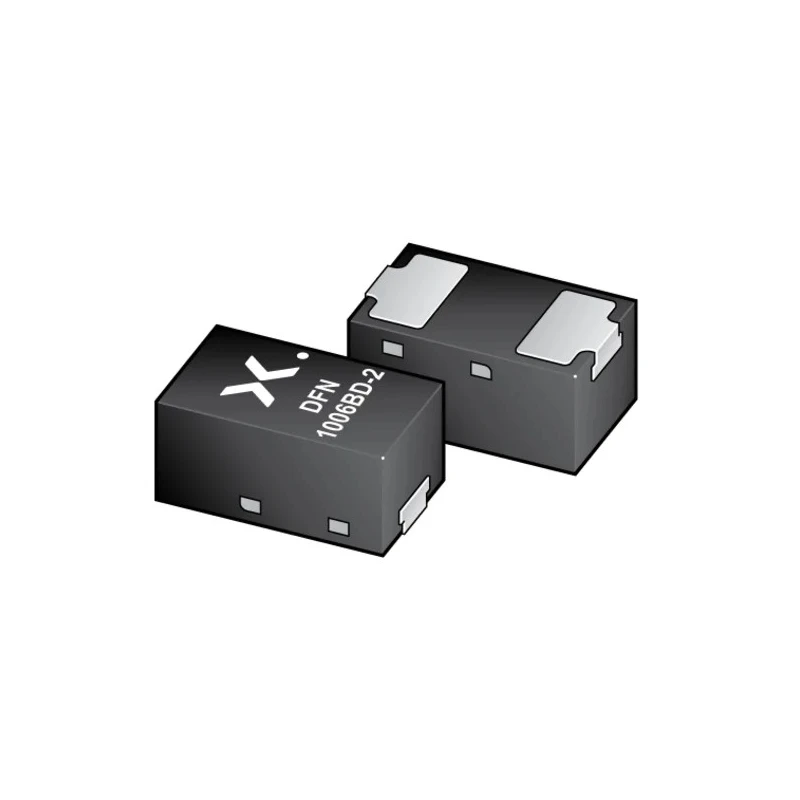

Nexperia BZX884S-B18-QYL is a general purpose Zener diode with a nominal voltage rating of 18 V and a power dissipation capability of 365 mW. It is designed as a single element diode within an ultra-small surface mount DFN1006BD-2 plastic package with side wettable flanks, providing excellent solderability for automated assembly processes.
This device offers a voltage tolerance of ±2%, a maximum reverse leakage current of 50 nA, and a typical voltage temperature coefficient of 12.4 mV/K, allowing for stable performance over varying temperatures. Its compact dimensions of 0.47 mm height by 1 mm length make it suitable for dense circuit board designs.
Designed and qualified according to AEC-Q101 standards, this Zener diode is recommended for use in automotive and industrial electronic applications requiring reliable voltage regulation and protection. The surface mount configuration enables efficient mass production and space-saving on printed circuit boards (PCBs).
This diode features a nominal Zener voltage of 18 V with a 2% tolerance. Maximum power dissipation is 365 mW at the specified test current of 5 mA. Package type DFN1006BD-2 allows surface mounting with 2 pins. Operating temperature ranges from -55°C to 150°C suitable for automotive environments.
Compliance with RoHS and automotive AEC-Q101 specifications ensures quality and environmental safety. Compact size with height 0.47 mm and length 1 mm enables use in miniature electronics.
This versatile Zener diode is extensively used in electronic circuits for voltage reference, voltage clamping, and transient voltage suppression in industrial, automotive, and consumer electronics. Its package and performance characteristics make it ideal for PCB-level assembly where size and reliability are critical.
