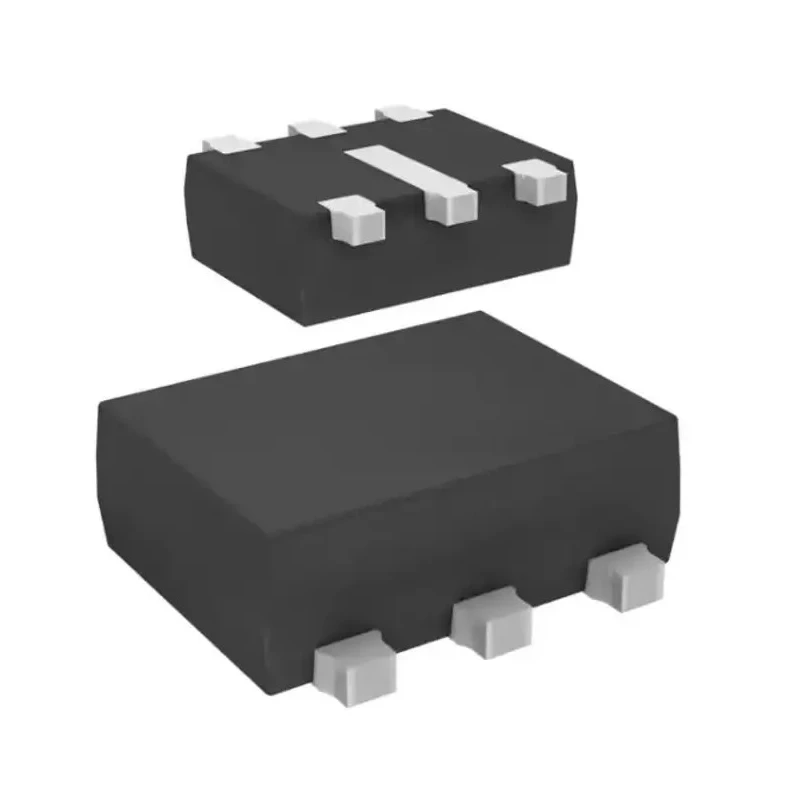

STMicroelectronics Bi-Directional TVS Diode Array 6-Pin SOT-666 ESDA25-4BP6
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.7mm |
| Length | 1.7mm |
| Model | ESDA25-4BP6 |
| Width | 0.62mm |
| Mount Type | Surface |
| Series | ESDA25-4BP6 |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-666 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | IEC, RoHS |
| Pin Count | 6 |
| Automotive Standard | AEC-Q101 |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 25V |
| Maximum Reverse Leakage Current | 500nA |
Key Features
- This diode array protects up to five lines against electrostatic discharge (ESD) transients.
- It features a minimum breakdown voltage of 25 volts for effective surge protection.
- The device operates reliably between -55°C and 150°C, making it ideal for automotive and industrial applications.
- Low leakage current of less than 1 microampere ensures minimal power loss.
- The SOT-666 package allows for high-density board layouts and efficient space saving.
- Compliant with IEC and RoHS standards, ensuring quality and environmental safety.
- Automotive-grade AEC-Q101 qualified for enhanced reliability in severe environments.
- Maximum reverse leakage current rated at 500 nanoamperes enhances device stability.
Product Description
STMicroelectronics ESDA25-4BP6 Bi-Directional TVS Diode Array is designed to provide high-level electrostatic discharge protection for up to five signal lines within compact electronic assemblies. Packaged in a small 6-pin SOT-666 surface mount format, this device optimizes board space while maintaining excellent protective performance.
Featuring a minimum breakdown voltage of 25 volts, this array ensures effective clamping of voltage spikes to safeguard sensitive circuitry. It operates efficiently over a wide temperature range from -55°C to 150°C, qualifying it for harsh automotive and industrial environments.
With a notably low leakage current below 1 microampere and a maximum reverse leakage current of 500 nanoamperes, the device minimizes power consumption and contributes to system stability. The array meets IEC and RoHS requirements, evidencing compliance with key industry standards and environmental regulations.
Application scenarios include the protection of sensitive lines in electronic control units, automotive systems, manufacturing equipment, and other industrial electronics where board density and high ESD resistance are critical. The device’s AEC-Q101 automotive qualification further ensures robustness under demanding conditions.
This diode array protects up to five lines against electrostatic discharge (ESD) transients. Minimum breakdown voltage of 25 volts for surge suppression. Operating temperature range from -55°C to 150°C. Extremely low leakage current under 1 microampere.
Compact 6-pin SOT-666 surface mount package design. IEC and RoHS compliant for quality and environmental safety. Automotive grade with AEC-Q101 qualification. Maximum reverse leakage current of 500 nanoamperes.
This STMicroelectronics TVS Diode Array is well-suited for electronics manufacturers and designers involved in automotive, industrial, and electronic manufacturing where space and reliability are paramount. Explore our extensive semiconductor and TVS diode selection in the Electronics & Electricals section on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The minimum breakdown voltage of the STMicroelectronics ESDA25-4BP6 is 25 volts, providing effective surge suppression for sensitive circuitry.
This diode array operates efficiently between -55°C and 150°C, making it suitable for harsh automotive and industrial environments.
The ESDA25-4BP6 can protect up to five signal lines against electrostatic discharge (ESD) transients.
The SOT-666 package has dimensions of 1.7mm in length, 0.62mm in width, and a height of 1.7mm.
The maximum reverse leakage current for this model is rated at 500 nanoamperes, which enhances device stability.
Yes, it is compliant with IEC and RoHS standards, ensuring quality and environmental safety.
This diode array features a pin count of 6, suitable for compact electronic assemblies.
The ESDA25-4BP6 is AEC-Q101 qualified, which ensures enhanced reliability in automotive applications.
This device is designed for surface mounting, optimizing board space in electronic designs.
The leakage current is notably low, measuring less than 1 microampere, which minimizes power loss.
This model is commonly used in protecting sensitive lines in electronic control units, automotive systems, and industrial electronics.
The ESDA25-4BP6 is a bi-directional diode array, allowing for effective protection in both directions.
