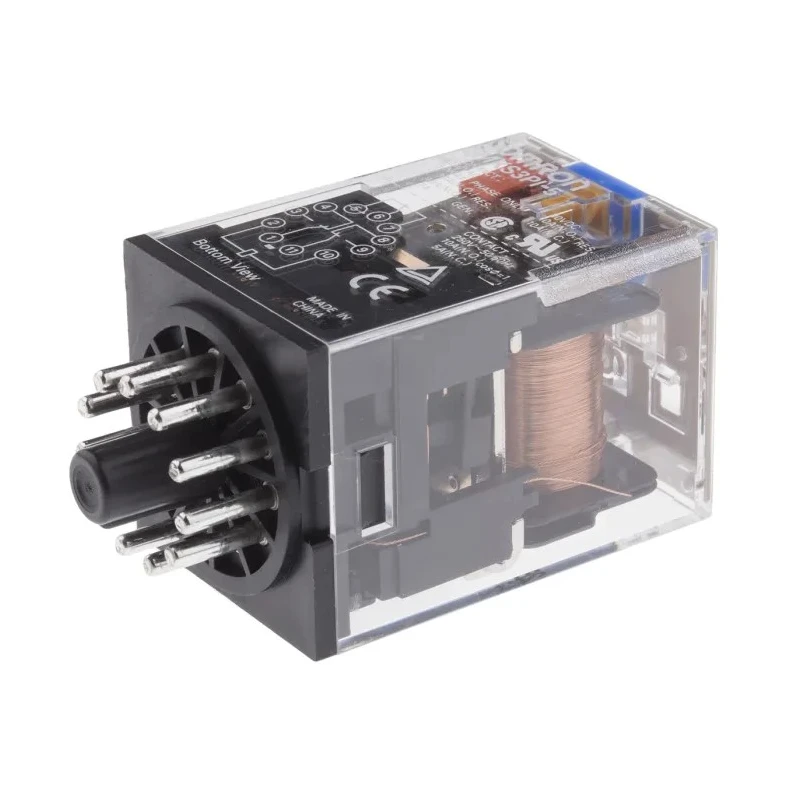

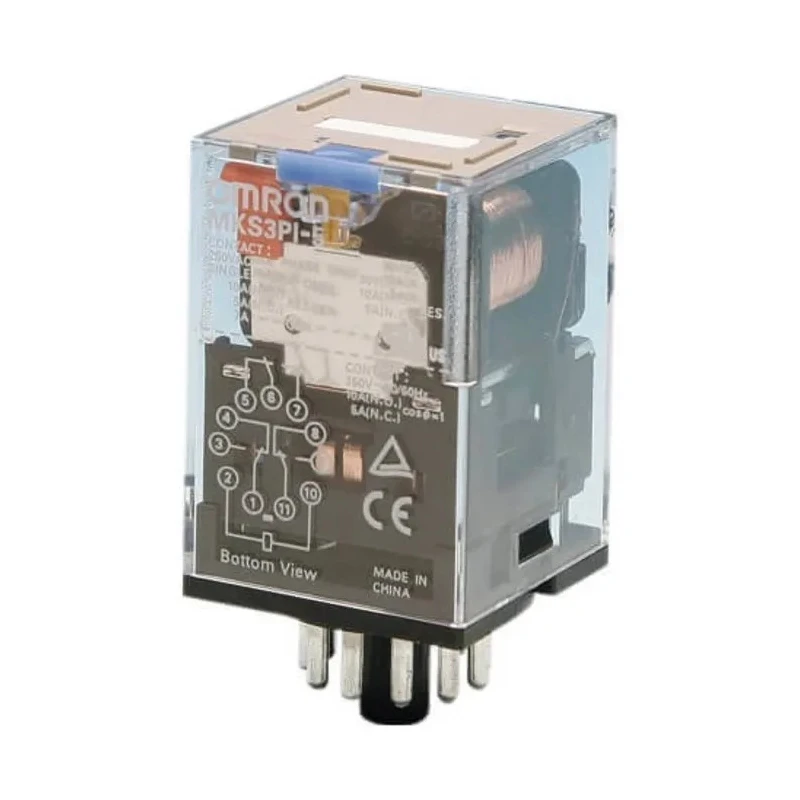

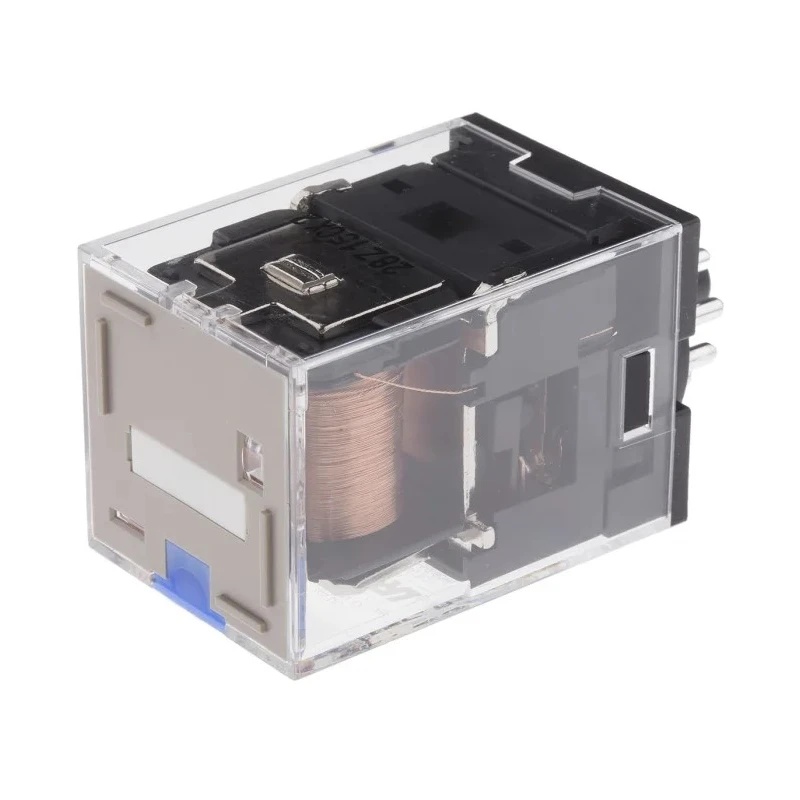

Omron Power Relay 24V dc Coil 10A Switching Current 3PDT MKS3PI-5 24VDC
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Operating Temperature | -40 → +60 °C |
| Height | 53.3mm |
| Length | 34.5mm |
| Model | MKS3PI-5 24VDC |
| Width | 34.5mm |
| Contact Material | Silver Alloy |
| Series | MKS |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | 3PDT |
| Contact Rating | 10A at 30Vdc/250Vac |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |
| Terminal type | Plug-In |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 430Ω |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 250V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 1.4W |
| Omron PCB Relay, 12V dc Coil, 10A Switching Current, 3PDTBrand | Omron |
| Omron Non-Latching Relay, 10A Switching CurrentBrand | Omron |
Key Features
- Operates efficiently at coil voltage of 24V dc and coil power of 1.4W.
- 3PDT contact configuration enables control of three circuits simultaneously.
- Supports switching currents up to 10A with silver alloy contacts.
- Designed to function reliably between -40°C and +60°C operating temperatures.
- Compact dimensions of 34.5mm length x 34.5mm width x 53.3mm height reduce installation space.
- Switching AC and DC voltage rating up to 250V ensures versatility in applications.
- Low contact resistance of 100mΩ offers reduced power loss and better conductivity.
- Lightweight design at approximately 90g eases mounting without stressing the setup.
Product Description
Omron MKS3PI-5 24VDC Power Relay 3PDT is a general-purpose power relay well suited for industrial and automation systems, providing efficient switching performance with a coil voltage of 24V dc and a switching current of 10A. Its 3PDT contact configuration allows simultaneous control of three circuits, making it highly adaptable for complex motor and lighting control needs.
The relay operates reliably within a wide temperature range from -40°C to +60°C, ensuring stable performance in diverse environmental conditions. Measuring 34.5mm in length and width, and 53.3mm in height, it features a compact footprint that simplifies panel and control box installations.
With a coil power consumption of 1.4W and a coil resistance of 430Ω, the relay is energy efficient and designed for prolonged operational life. The silver alloy contacts provide a switching capacity of up to 10A at 30Vdc or 250Vac, with a low contact resistance of 100mΩ to minimize power loss and maintain effective conductivity.
Its plug-in terminal type allows for easy mounting and replacement. The relay is RoHS compliant, meeting environmental and safety standards for industrial equipment.
Applications include factory automation, telecommunication networks, and HVAC systems, where fast and reliable switching is critical. The relay can be mounted on a track-mounting socket and snapped onto DIN rails for convenient integration.
Coil Voltage: 24V dc with 1.4W coil power. Contact Configuration: 3PDT allowing three separate circuits. Switching Current: 10A at 30Vdc/250Vac with silver alloy contacts. Operating Temperature Range: -40°C to +60°C. Dimensions: 34.5mm (L) x 34.5mm (W) x 53.3mm (H).
Plug-In Terminal Type for ease of installation. RoHS Compliant for environmental safety.
Choose this Omron Power Relay for reliable, efficient circuit control in demanding industrial environments. Explore more quality relays and electrical components in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates at a coil voltage of 24V dc with a coil power consumption of 1.4W.
It features a 3PDT contact configuration, allowing control of three circuits simultaneously.
The maximum switching current is 10A at 30Vdc or 250Vac.
The relay operates reliably within a temperature range of -40°C to +60°C.
It has compact dimensions of 34.5mm in length, 34.5mm in width, and 53.3mm in height.
This model features a plug-in terminal type, which facilitates easy mounting and replacement.
The contacts are made of silver alloy, which provides effective conductivity.
It has a low contact resistance of 100mΩ, which helps reduce power loss.
Yes, this relay is RoHS compliant, meeting environmental and safety standards.
It is suitable for applications in factory automation, telecommunication networks, and HVAC systems.
The coil resistance is 430Ω.
The relay supports switching voltages up to 250V for both AC and DC.
