Eaton Circular Connector 4 Contacts Panel Mount M12 Connector Plug Male IP66 250V 4A M12A Series 266135 M12A

Free Delivery in India | Lowest Global Shipping Charges

Eaton Circular Connector 4 Contacts Panel Mount M12 Connector Plug Male IP66 250V 4A M12A Series 266135 M12A

Name: Eaton Circular Connector 4 Contacts Panel Mount M12 Connector Plug Male IP66 250V 4A M12A Series 266135 M12A
Brand: Eaton
SKU: 295273
Price: 28.68 USD
Availability: InStock



Category Industrial Circular Connector Brand Eaton Condition New

Specifications

Country of Origin	India
Voltage	250V
Brand	Eaton
Orientation	Straight
Current	4A
Model	266135 M12A
IP Rating	IP66
Mount Type	Panel Mount
Housing Material	Moulded
Series	M12A
Termination Type	Wire
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-25°C
Standards/Approvals	IEC/EN 60947-5-2, IEC/EN 61439
Pole Format	4
Number of Contacts	4
Contact Gender	Male
Mating Type	Plug-In
Connector Size	M12
Plug/Socket	Plug
Coding	A

Key Features

Operates at 250V voltage with 4 amp current rating.
Durable moulded housing material ensures reliable performance.
Male plug connector with straight orientation.
Suitable for industrial use with IEC/EN 60947-5-2 and IEC/EN 61439 compliance.
Wide operating temperature range from -25°C to 70°C.
Termination by wire for secure connections.
A-coded M12A series connector with plug-in mating type.
Contact configuration includes 4 poles arranged in pole format 4.

Product Description

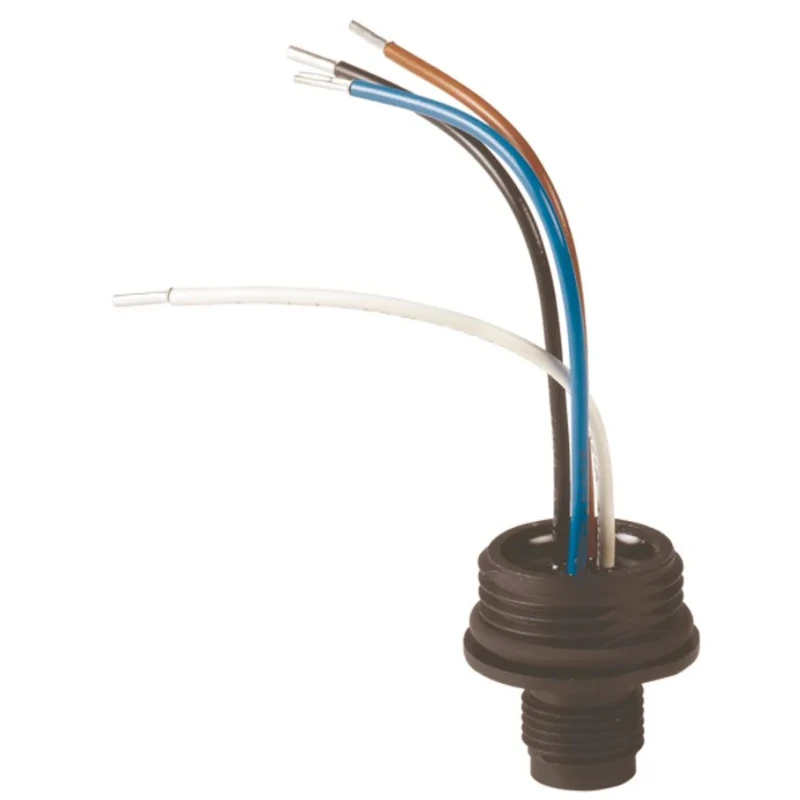

Eaton 266135 M12A circular connector is an industrial-grade panel mount male plug connector designed for reliable electrical connections in demanding environments. It features 4 contacts with a 250V voltage rating and a continuous current handling capacity of 4A. The connector belongs to the M12A series and is coded A with a straight orientation, providing consistent mating with compatible devices.

The robust moulded housing material offers protection to the internal contacts, while the IP66 ingress protection rating ensures resistance to dust and water jets, making it suitable for harsh industrial, manufacturing, automation, and control gear applications. The connector’s plug-in mating type simplifies installation and maintenance efforts. The operating temperature range from -25°C to 70°C accommodates diverse environmental conditions. Termination is via wire, enabling versatile wiring options.

This connector meets stringent IEC/EN 60947-5-2 and IEC/EN 61439 standards, assuring quality and safety. Eaton, formerly known as Moeller, manufactures this connector for use in power connectors assemblies, control systems, and electronic components requiring dependable circular connectors.

Operates at 250V voltage with 4 amp current rating. Durable moulded housing material ensures reliable performance. Male plug connector with straight orientation. Suitable for industrial use with IEC/EN 60947-5-2 and IEC/EN 61439 compliance.

Wide operating temperature range from -25°C to 70°C. Termination by wire for secure connections. A-coded M12A series connector with plug-in mating type. Contact configuration includes 4 poles arranged in pole format 4.

This Eaton circular connector is ideal for use in industrial automation, electrical installations, manufacturing equipment, and other commercial applications requiring robust panel mount connectors. Explore the full range of Industrial Circular Connectors on EnvMart for compatible products and accessories.
