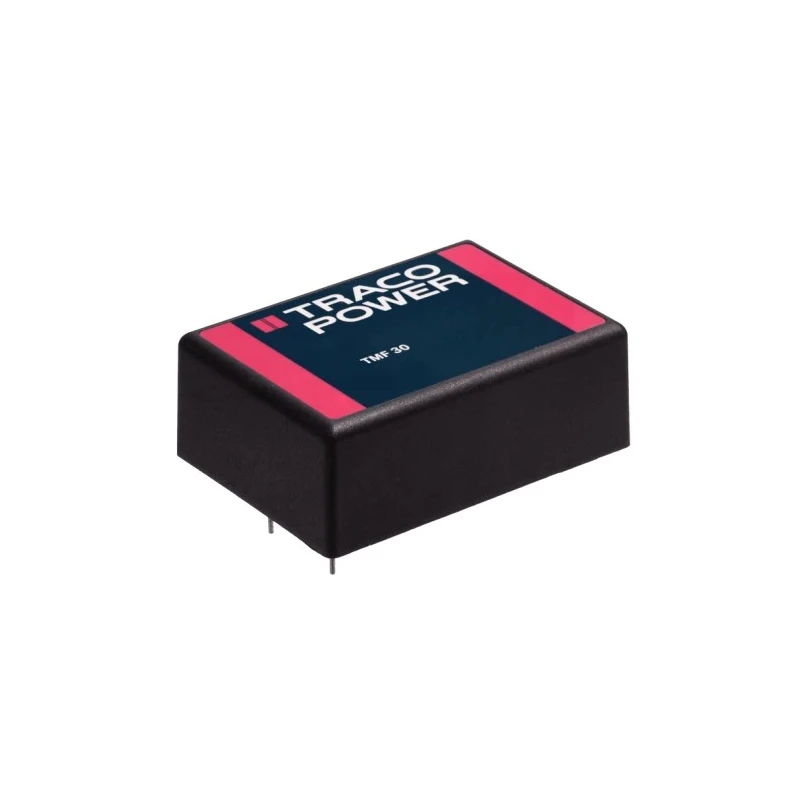

TRACOPOWER TMF 30112 Switching Power Supply 12V 30W PCB Mount Medical Grade with 2.5A Output Current TMF 30112
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | TRACOPOWER |
| Power | 30W |
| Efficiency | 88% |
| Length | 64.1mm |
| Model | TMF 30112 |
| Depth | 23.5mm |
| Gross Weight | 135g |
| Width | 45.6mm |
| Mount Type | PCB |
| Series | TMF |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -25°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 264V |
| Maximum Output Voltage | 12V |
| SMPS Output Current | 2.5A |
| Minimum Input Voltage | 90V ac |
| IEC/EN/ES 60601-1, ANSI/AAMI ES 60601-1, CSA CAN/CSA-C22.2 NO. 60601-1 | 14, ISO 14971, RoHS |
Key Features
- Medical grade power supply compliant with IEC/EN/ES 60601-1 standards.
- Fully encapsulated with plastic casing for reliable PCB mounting.
- Wide operating temperature range from -25°C to 70°C suitable for various environments.
- Overload, short circuit, and overvoltage protections ensure safe operation.
- High efficiency of 88% minimizes energy loss during operation.
- Compatible with input voltages from 90V AC to 264V AC for global use.
- Compact dimensions of 64.1mm length, 45.6mm width, and 23.5mm depth.
- Conforms to RoHS for environmental safety and reduced hazardous substances.
Product Description
TRACOPOWER TMF 30112 is a high-quality switching power supply designed for medical equipment applications. It delivers a maximum output voltage of 12V with a power rating of 30W and an output current of 2.5A, optimized for PCB mount installation. The fully encapsulated plastic casing provides electrical safety and reliability, meeting IEC/EN/ES 60601-1 and ANSI/AAMI standards with 2 x MOPP protection and ISO 14971 risk management compliance.
This power supply is engineered to operate efficiently across a wide input voltage range of 90V AC up to 264V AC, making it suitable for global medical device designs. Its extended operating temperature range from -25°C to 70°C enables stable performance in both stationary and transportable medical equipment.
Additional features include low leakage current and advanced protections against short circuit, overload, and overvoltage, ensuring safety and longevity. The unit achieves a high conversion efficiency of 88%, supporting energy savings and reducing thermal stress.
With compact dimensions measuring 64.1mm in length, 45.6mm in width, and 23.5mm in depth, this power supply integrates easily into space-constrained designs. It weighs approximately 135 grams and complies with RoHS directives, minimizing environmental impact.
Medical grade switching power supply with full encapsulation. Plastic casing for secure PCB mounting. Wide input voltage tolerance: 90V AC to 264V AC. Reliable operation over -25°C to 70°C temperature range. Protection features including overload, short circuit, and overvoltage safeguards.
High efficiency of 88% for energy-conscious designs. Compact and lightweight suitable for medical and industrial use.
Ideal for industrial, laboratory, medical, and instrumentation applications requiring reliable and certified power supplies. Explore more Switching Power Supplies and electronic components on EnvMart for your project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output voltage of this model is 12V.
It has a power rating of 30W.
The TMF 30112 operates with input voltages ranging from 90V AC to 264V AC.
The output current for this unit is 2.5A.
The dimensions are 64.1mm in length, 45.6mm in width, and 23.5mm in depth.
It operates efficiently within a temperature range of -25°C to 70°C.
This model includes protections against overload, short circuit, and overvoltage.
Yes, it complies with IEC/EN/ES 60601-1, ANSI/AAMI ES 60601-1, and RoHS directives.
The efficiency rating of this power supply is 88%.
This unit weighs approximately 135 grams.
It is designed for PCB mounting.
This power supply is suitable for medical, industrial, laboratory, and instrumentation applications.
