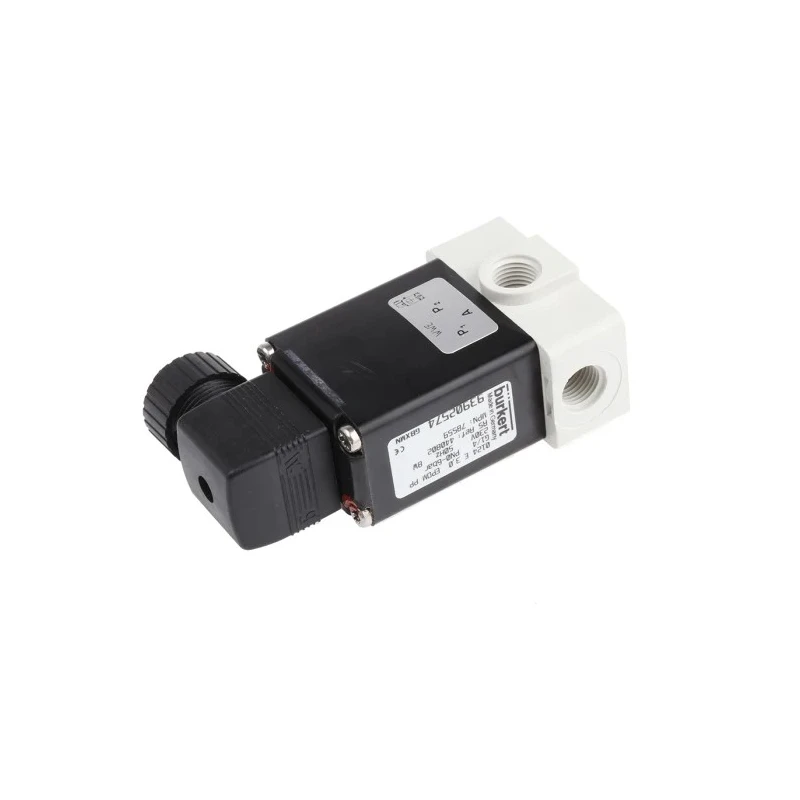

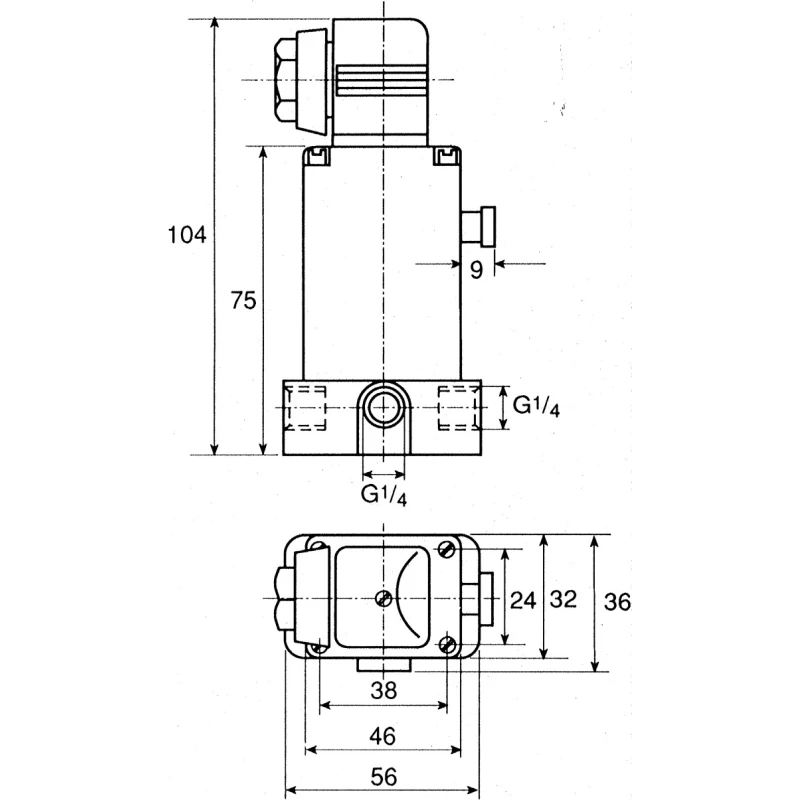

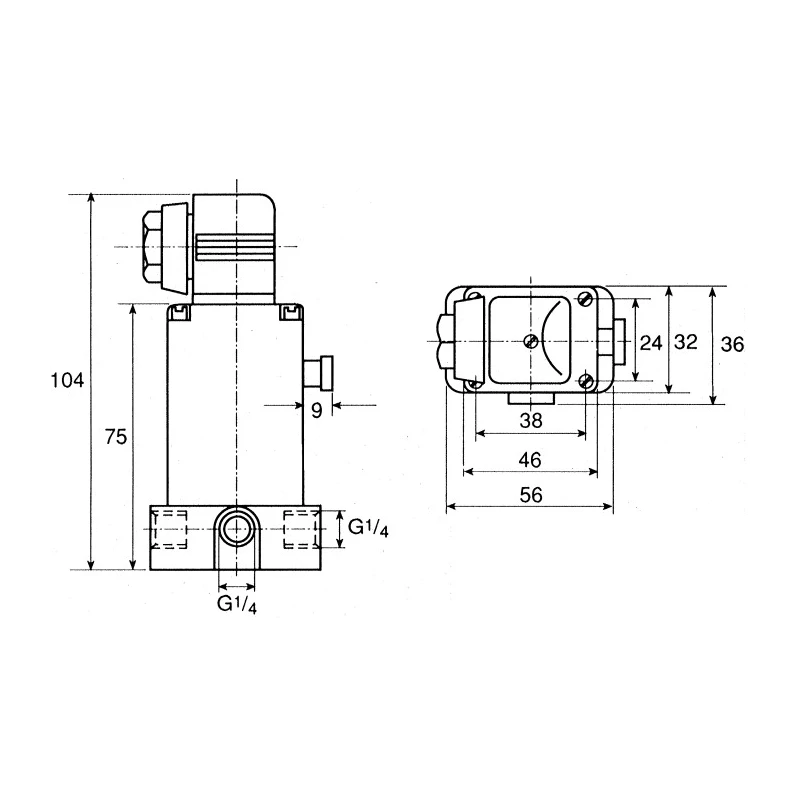

Burkert Solenoid Valve, 3 Port, NO/NC, 230V AC, 1/4 in G Threaded, 6.35 mm Outlet, Polypropylene Body, Model 078559

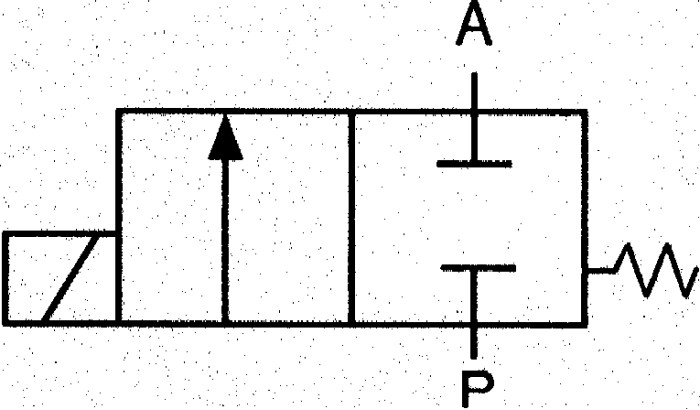

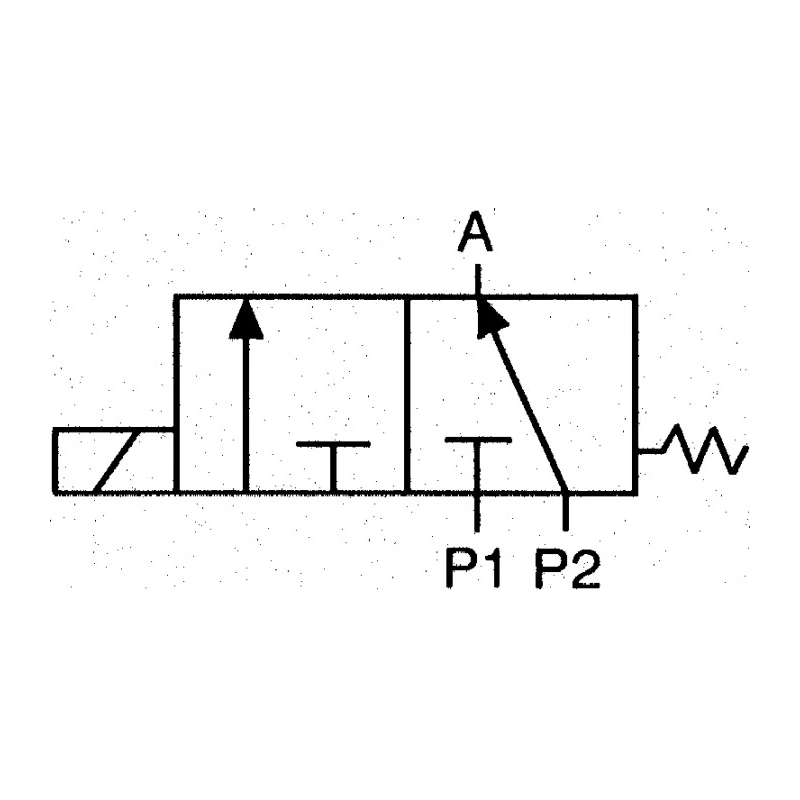

Burkert 078559 solenoid valve is a 3 port valve with both normally open and normally closed positions, delivering precise fluid control for engineering and industrial applications.

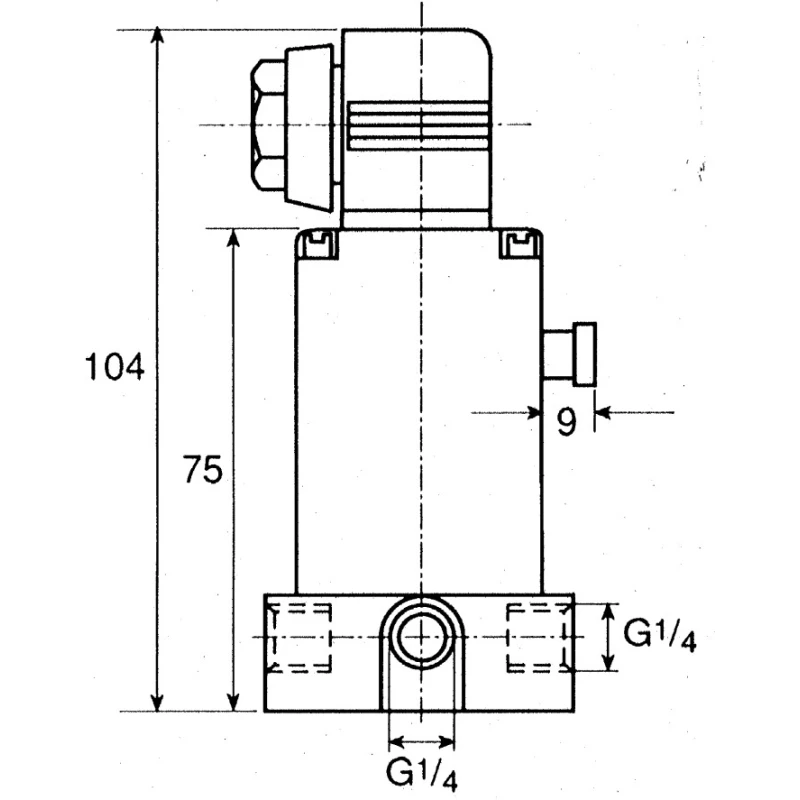

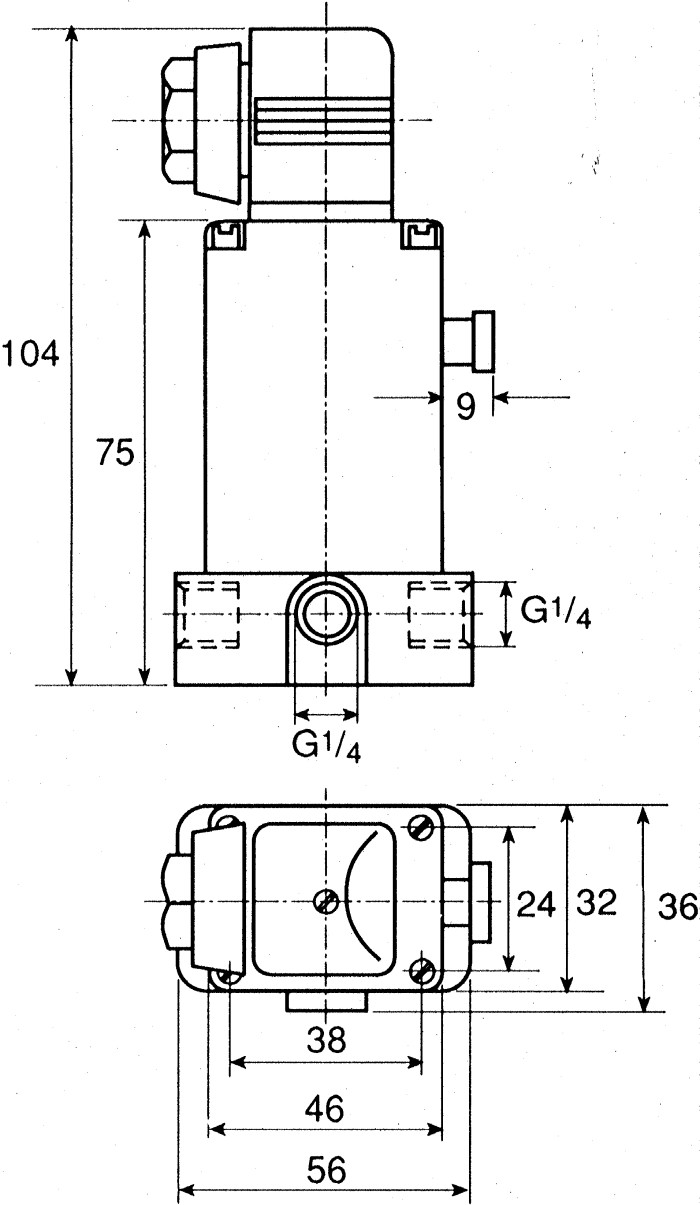

This valve operates on 230V AC supply and features a 1/4 inch G female threaded inlet port and a 6.35 mm threaded outlet port suitable for aggressive media handling. The valve body is engineered from polypropylene (PP) material, providing chemical resistance against alkalis, acids of medium concentration, and alkaline washing and bleaching agents.

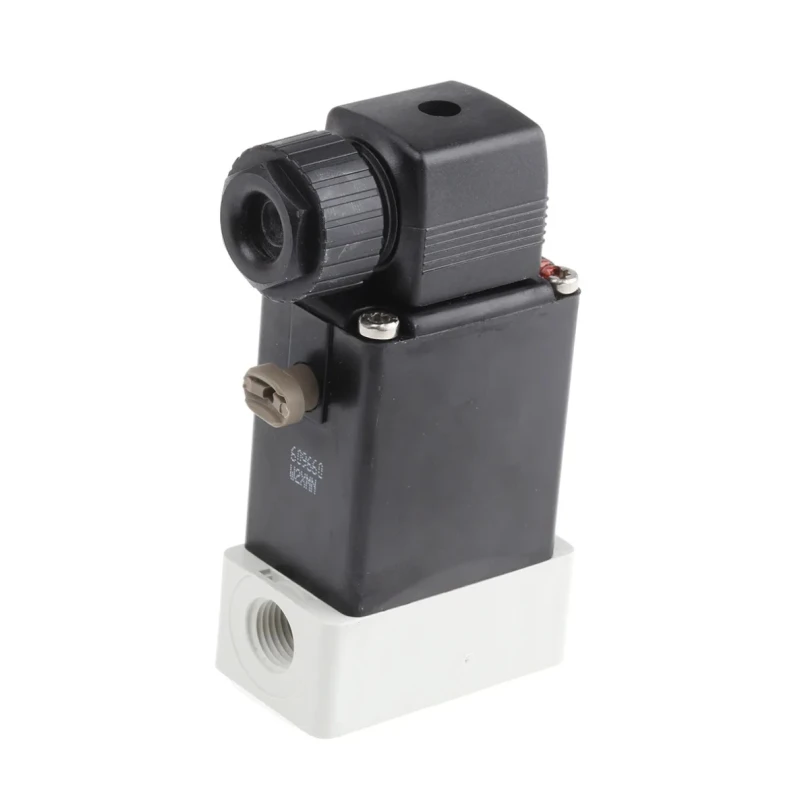

The solenoid valve is direct acting with a separating diaphragm and incorporates a pivoted armature with manual override functionality for easy operation and maintenance. It has a maximum operating pressure of 6 bar and can function reliably within a wide temperature range of -40°C to 55°C.

The maximum opening and closing times of 15 milliseconds enable rapid response, supported by a flow factor (Kv) of 0.25 m³/h, ensuring controlled flow rates in demanding environments. This product comes with a 3-pin DIN connector which can be positioned through 360° in 90° increments to suit installation needs. It supports an intermittent duty cycle of 40% within 30 minutes, suitable for applications requiring on-off cycling under moderate durations.

The vibration-proof, block screwed coil system enhances mechanical stability and long service life. The valve is IP65 rated, providing substantial protection against dust and water ingress. It is manufactured in Germany with high quality standards, not suitable for hazardous areas.

Common industry uses include fluid power controls in industrial automation, water treatment systems, chemical processing plants, and HVAC applications. The valve's robust construction and versatile operating parameters make it suitable for handling aggressive liquids in laboratory, manufacturing, and industrial sectors.

Polypropylene body for chemical resistance. 3-port solenoid design for versatile control. 230V AC supply voltage. Fast valve actuation times (15 ms opening and closing). Manual override functionality. Flow factor Kv of 0.25 m³/h.

Maximum operating pressure of 6 bar. Wide operating temperature range from -40°C to 55°C. Adjustable 3-pin DIN connector. Vibration-proof coil system. IP65 rated protection. Explore this product in the Industrial Valves & Valve Fittings category on EnvMart for expert-grade Solenoid Valves with reliable performance and robust materials.
