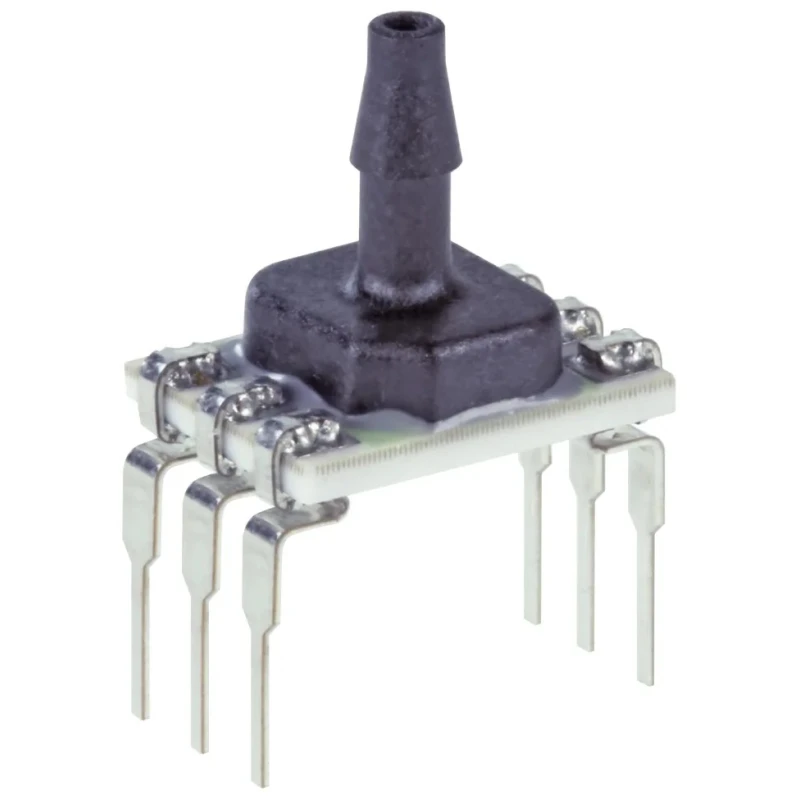

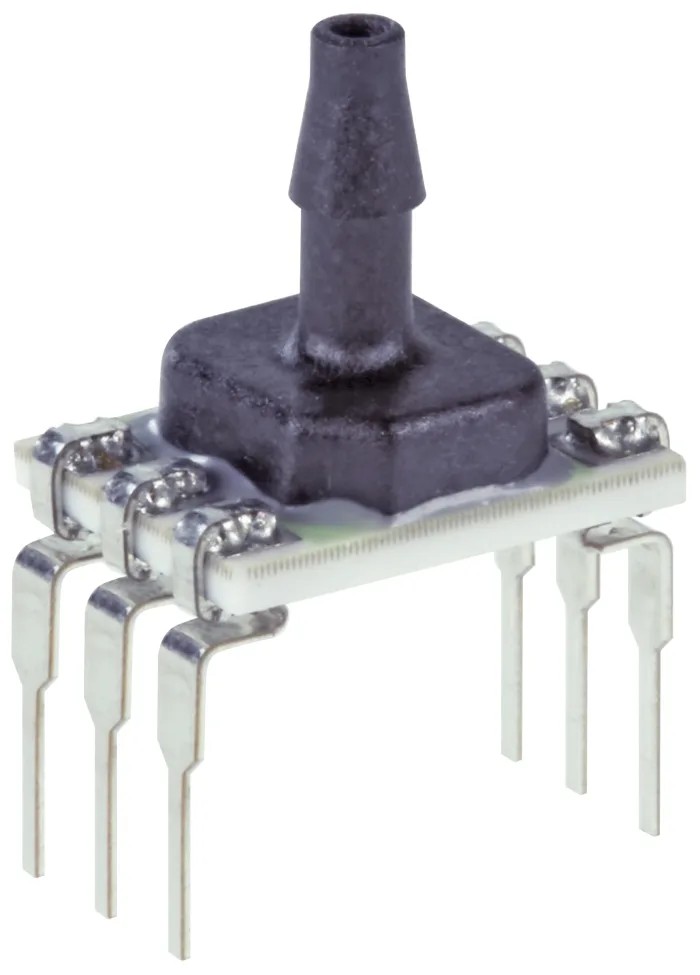

Honeywell Technologies ABP Series Piezoresistive Pressure Sensor Board 6 Pin DIP Package 150 psi, ±0.25% ABPDANV150PGSA3

Honeywell ABPDANV150PGSA3 is a high-accuracy piezoresistive pressure sensor board designed to measure gauge or differential pressure with excellent fidelity. It is housed in a 6 pin DIP package and engineered to operate robustly in demanding industrial and laboratory environments, supporting precision controlled pressure monitoring up to 150 psi with ±0.25% full scale span (FSS) accuracy.

This miniature sensor integrates a piezoresistive sensing element with onboard signal conditioning, enabling both ratiometric analogue and 12-bit digital output signals. The device operates on a single 3.3V or 5.0V power supply, simplifying integration and power design. Featuring a single axial barbed port, it is ready for fluid or gas pressure connections commonly required in automation and instrumentation systems.

The sensor supports an extensive operating temperature range from -40°C to +85°C to accommodate extreme temperature installations, with a maximum overload pressure of 1723 kPa. Certified to ISO 9001 standards, it uses BPA Free, LFGB, and NSF-169 certified materials making it suitable for safety-critical and food-contact applications.

Honeywell's ABP series sensor technology enables rapid digital pressure sampling at up to 2 kHz, allowing it to be effectively used in fast process control scenarios. Accuracy is maintained over long-term use with a ±0.25% drift specification over 1000 hours at 25°C, ensuring reliable continuous operation.

Typical industrial and laboratory uses include CPAP and ventilator pressure monitoring for medical devices, pneumatic actuator control and valve positioning, commercial coffee and washing machine fluid pressure regulation, and atmospheric or process gas monitoring in life science instruments. The sensor’s compact footprint of 7.3 mm length, 6.3 mm width, and 3.63 mm height enables integration into space-constrained electronic assemblies.

The pressure sensor provides miniature board-mounted gauge or differential pressure measurement for demanding environments. On-board signal conditioning delivers ratiometric analogue and 12-bit digital outputs for precise pressure monitoring.

Designed for continuous use with an operating temperature range of -40°C to +85°C. Features a single axial barbed port ensuring compatibility with various pneumatic systems. Constructed with BPA Free, LFGB, and NSF-169 certified materials suitable for food-contact applications.

Offers a maximum supply voltage of 5V and minimum supply voltage tolerance down to -0.3V. ISO 9001 automotive standard certified for quality and reliability. Supports rapid pressure sampling with a 2kHz digital update rate for fast-response processes.

Suited for applications in medical devices, industrial pneumatic controls, commercial appliance regulation, and life science process gas monitoring. Explore the extensive selection of Pressure Sensor ICs and electronics components on EnvMart for your industrial, laboratory, and commercial instrumentation needs.
