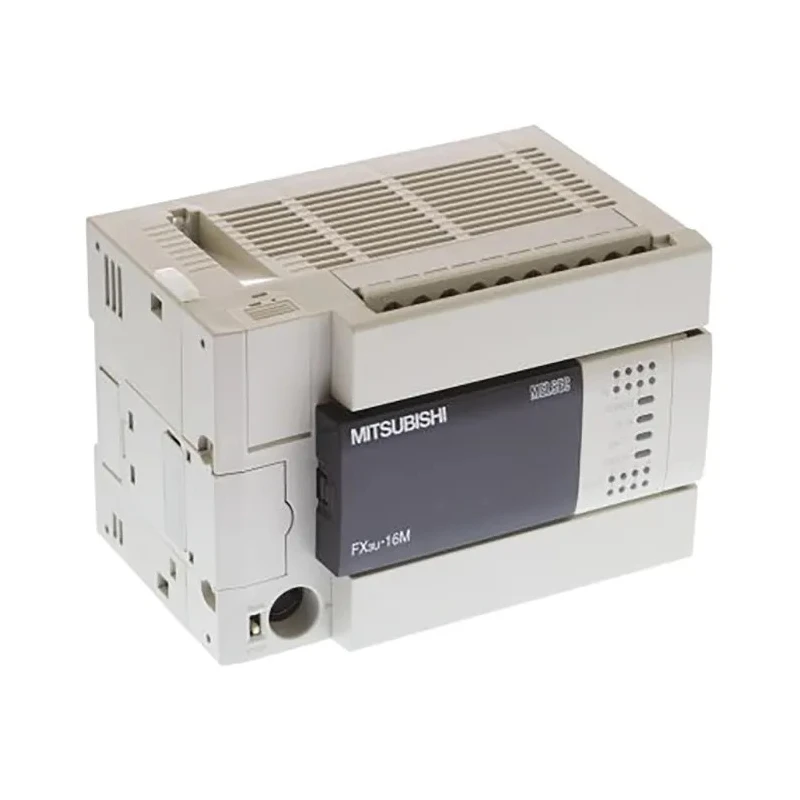

Mitsubishi Electric FX3U Series Logic Module, 8-Input, Sink Input, 8 Outputs, Relay Output
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Mitsubishi Electric |
| Length | 130mm |
| Model | FX3U |
| Depth | 86mm |
| Width | 90mm |
| Mount Type | DIN Rail |
| Number of inputs | 8 |
| Output type | Relay |
| Series | FX3U |
| Output Current | 8A |
| Input Type | Sink |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | 0°C |
| Interfaces | Ethernet |
| Number of outputs | 8 |
| Program Capacity | 64000Steps |
| Supply Voltage | 24V dc |
| Standards/Approvals | UL, CE |
| Communication Port Type | RS232C, RS422, RS485, USB |
| Programming Language Used | Ladder Logic |
Key Features
- The module supports sink type inputs with a total of 8 input channels.
- It includes 8 relay outputs capable of 8A output current each.
- Operating temperature ranges from 0°C to 50°C ensuring robust performance.
- Supply voltage is 24V DC with DIN rail mounting for convenient installation.
- Communication ports include RS232C, RS422, RS485, and USB for versatile connectivity.
- This logic module is programmable using ladder logic language and includes a display for status indication.
- Battery backup is included to safeguard program retention during power loss.
- Compact dimensions of 130mm length, 90mm width, and 86mm depth optimize space usage in control panels.
Product Description
The Mitsubishi Electric FX3U-16MR/DS logic module is a high-performance industrial automation component designed for advanced control systems. It features 8 sink type digital inputs and 8 relay outputs, each capable of switching up to 8A, making it suitable for controlling a variety of industrial devices and machinery. This module operates on 24V DC supply and supports multiple communication interfaces including RS232C, RS422, RS485, and USB, offering flexible networking and integration options.
Engineered to operate reliably within a temperature range of 0°C to 50°C, the module is constructed for durability and stable operation in demanding industrial environments. Its compact size (130mm x 90mm x 86mm) and DIN rail mounting capability facilitate easy installation in control cabinets.
The FX3U series CPU base units offer very fast processing times and support program capacities up to 64,000 steps, enabling complex control sequences. It includes a real-time clock and battery backup to maintain operation and program memory even during power interruptions.
This module supports ladder logic programming, widely used in industrial control for its simplicity and effectiveness. The built-in display provides real-time monitoring of input and output states via LEDs.
Compatible with existing FX2N expansion modules and new FX3U ADP expansion modules, the FX3U-16MR/DS can be seamlessly integrated or used to upgrade legacy systems. It is certified with UL and CE approvals ensuring compliance with international safety standards.
The module supports sink input type with 8 digital inputs. It has 8 relay outputs rated at 8A each for control applications. Includes communication ports for RS232C, RS422, RS485, and USB. Battery backup is provided for program retention and reliability.
Programming language supported is ladder logic for efficient automation programming. Dimensions enable compact deployment with DIN rail mount compatibility. Operating temperature range is 0°C to 50°C for industrial usage.
Complies with UL and CE international safety standards.
The Mitsubishi Electric FX3U-16MR/DS Logic Module is ideal for industrial, manufacturing, automation, and electrical control system applications requiring reliable and efficient programmable logic control. Explore more automation and control gear products on EnvMart to find compatible modules and accessories tailored to your industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features sink type inputs with a total of 8 input channels.
It includes 8 relay outputs, each capable of switching up to 8A.
The unit operates on a supply voltage of 24V DC.
It supports RS232C, RS422, RS485, and USB communication ports for versatile connectivity.
This logic module operates reliably within a temperature range of 0°C to 50°C.
It supports ladder logic programming, which is commonly used in industrial control systems.
The module has compact dimensions of 130mm in length, 90mm in width, and 86mm in depth.
It is designed for DIN rail mounting, facilitating easy installation in control cabinets.
The FX3U-16MR/DS has a program capacity of up to 64,000 steps.
Yes, it includes battery backup to safeguard program retention during power loss.
It is certified with UL and CE approvals, ensuring compliance with international safety standards.
Yes, it is compatible with existing FX2N expansion modules and new FX3U ADP expansion modules.
