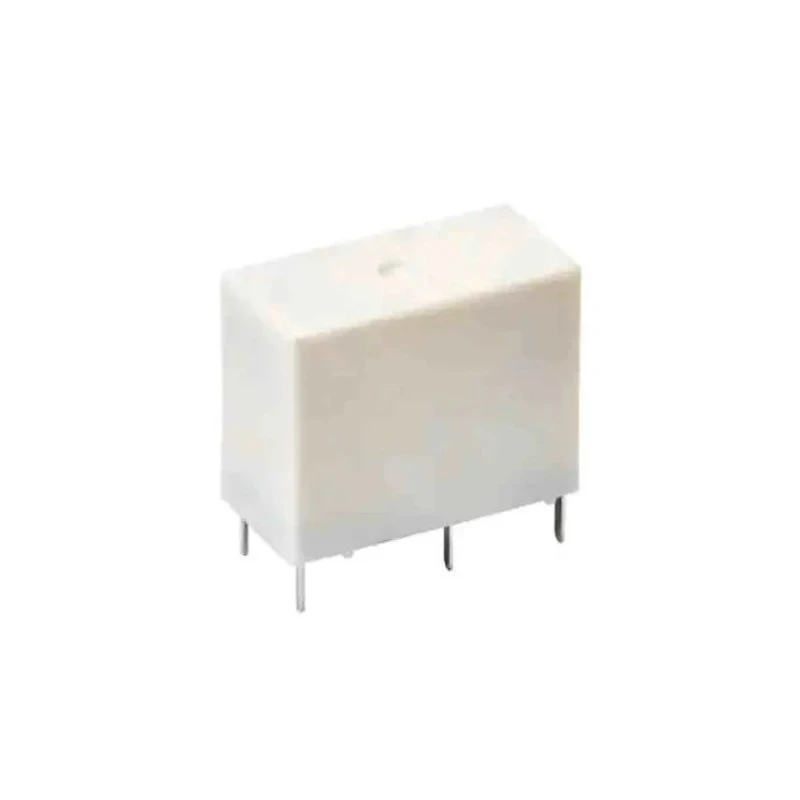

Omron PCB Power Relay SPST, 24V DC Coil Voltage, 10A Switching Current, Silver Alloy Contacts G5Q-1A4-EL3-HA DC24
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Height | 18.9mm |
| Length | 20mm |
| Model | G5Q-1A4-EL3-HA DC24 |
| Width | 10mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G5Q |
| Maximum Operating Temperature | 105°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |
| Terminal type | PCB Pin |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 1.4kΩ |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 277V ac |
| Coil Power | 200mW |
Key Features
- Designed with a PCB mount type for efficient integration into circuit boards.
- Supports switching of DC voltage up to 30V and AC voltage up to 277V providing versatile use cases.
- Equipped with silver alloy contacts ensuring reliable conductivity and durability.
- Coil resistance is 1.4 kΩ and coil power consumption is 200 mW for energy-efficient operation.
- Operates reliably in temperatures ranging from -40°C to 105°C for robust performance in harsh environments.
- Compact dimensions of 20mm length, 18.9mm height, and 10mm width fit standard space requirements.
- Contact resistance is low at 100 mΩ ensuring minimal voltage drop and power loss.
- Conforms to RoHS standards ensuring environmental compliance and safety.
Product Description
Omron G5Q-1A4-EL3-HA DC24 PCB Power Relay is a high-quality power relay designed for precise switching applications in automation, home appliances, lighting control, and industrial control systems.
With a coil voltage of 24V DC, this relay provides an excellent solution for electronic circuits requiring reliable and high inrush current handling, supporting motor switching up to 3A with inrush currents up to 30A.
The relay features a single-pole single-throw (SPST) contact design with silver alloy contacts ensuring long life and consistent electrical performance. The compact form factor (20mm x 18.9mm x 10mm) and PCB pin terminal type facilitate easy mounting on printed circuit boards, optimizing space on the assembly.
Operating temperature range between -40°C and 105°C allows for adaptability in various environmental conditions, suitable for industrial, automation, HVAC, and commercial equipment.
Additional features include a coil resistance of 1.4kΩ and a coil power rating of 200mW, offering efficient low power consumption for coil actuation. It meets environmental standards with RoHS compliance and is made in China, assuring quality manufacturing practices.
Designed with a PCB mount type for efficient integration into circuit boards. Supports switching of DC voltage up to 30V and AC voltage up to 277V providing versatile use cases. Equipped with silver alloy contacts ensuring reliable conductivity and durability.
Coil resistance is 1.4 kΩ and coil power consumption is 200 mW for energy-efficient operation. Operates reliably in temperatures ranging from -40°C to 105°C for robust performance in harsh environments. Compact dimensions of 20mm length, 18.9mm height, and 10mm width fit standard space requirements.
Contact resistance is low at 100 mΩ ensuring minimal voltage drop and power loss. Conforms to RoHS standards ensuring environmental compliance and safety.
Ideal for use in industrial automation, building control systems, electronics projects, and electrical circuit switching applications. Browse more reliable Power Relays and related components at EnvMart for your project requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this power relay is 24V DC.
This relay supports a maximum switching current of 10A.
The dimensions of this relay are 20mm in length, 18.9mm in height, and 10mm in width.
It features a single-pole single-throw (SPST) contact configuration.
The coil resistance is 1.4 kΩ.
The relay operates reliably in temperatures ranging from -40°C to 105°C.
The contact material is silver alloy, ensuring reliable conductivity.
It can switch DC voltage up to 30V.
This relay supports switching of AC voltage up to 277V.
The contact resistance is low at 100 mΩ, ensuring minimal voltage drop.
The coil power consumption is 200 mW.
Yes, it conforms to RoHS standards, ensuring environmental compliance.
