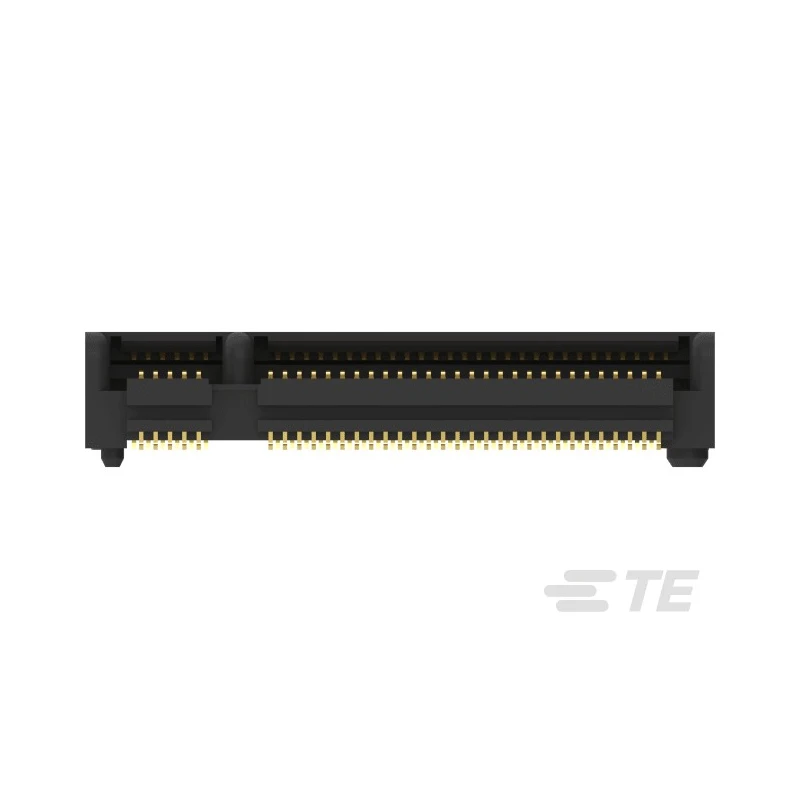

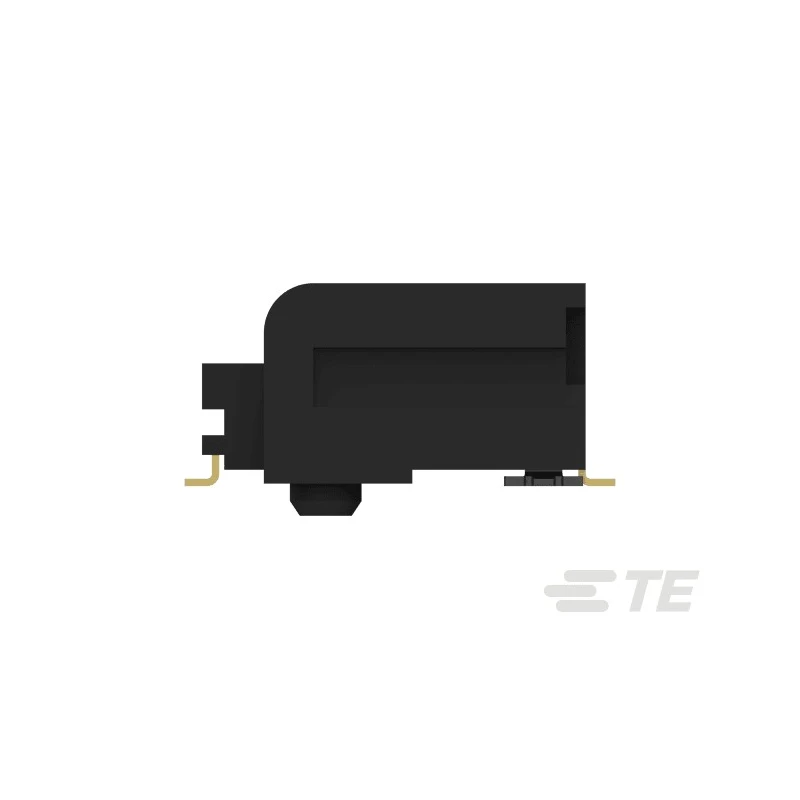

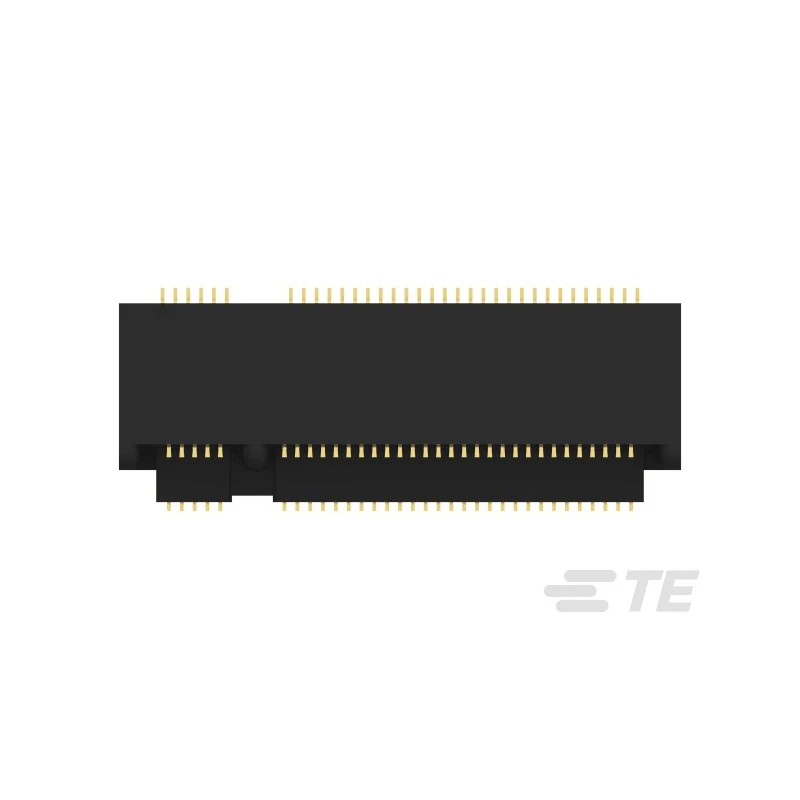

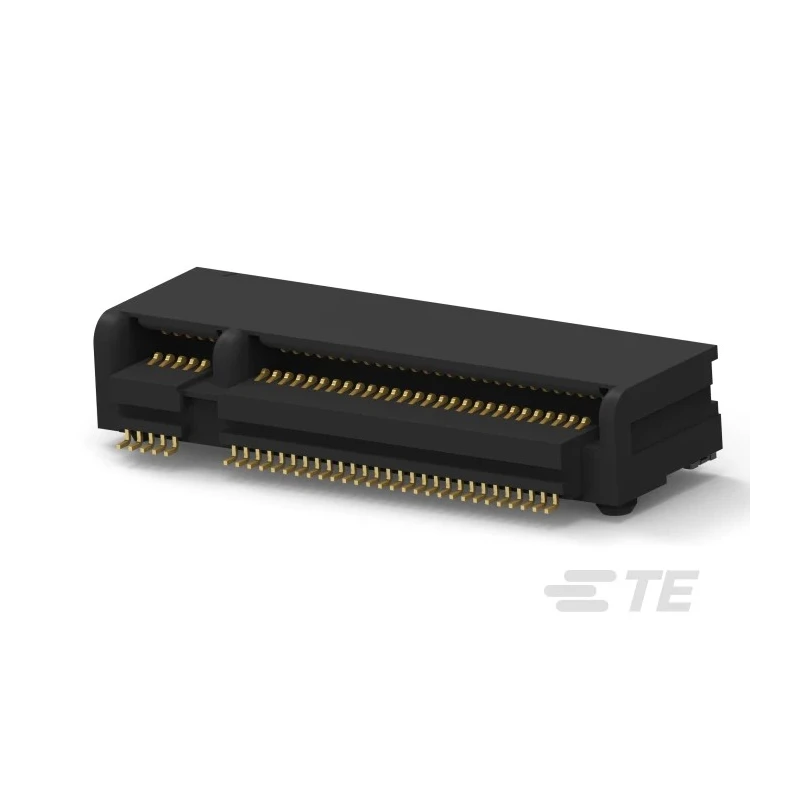

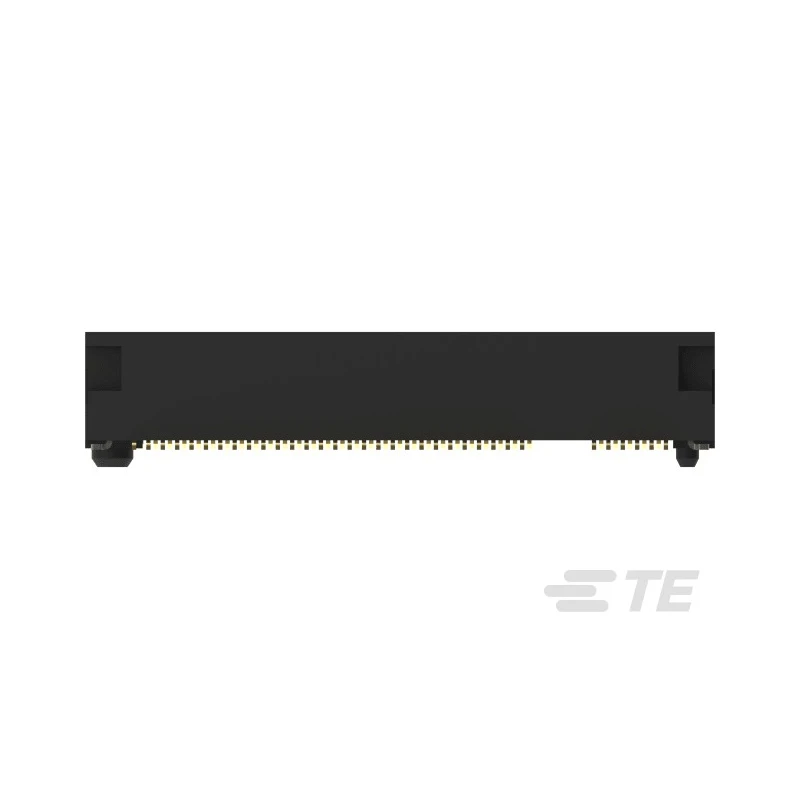

TE Connectivity M.2 NGFF Series Right Angle Edge Connector, PCB Mount, 67 Contacts, 0.5 mm Pitch, 2 Row 2199230-5
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 50V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 500mA |
| Mount Type | PCB |
| Housing Material | High Temperature Thermoplastic |
| Contact Material | Copper Alloy |
| Series | M.2 NGFF |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 0.5mm |
| Contact Plating | Gold |
| Number of Contacts | 67 |
| Contact Gender | Male |
| Card Type | Edge |
Key Features
- Features a right angle orientation suitable for compact PCB layouts.
- Equipped with 67 contact points ensuring reliable connectivity.
- Maintains a precise 0.5 mm pitch for high-density connections.
- Constructed with gold-plated copper alloy contacts for durability and conductivity.
- Housing made of high temperature thermoplastic for robust performance.
- Operates efficiently within a temperature range of -40°C to 80°C.
- Rated for a current of 500 mA and voltage up to 50 V.
- Incorporates keying for proper mating and to prevent misconnection.
Product Description
TE Connectivity 2199230-5 M.2 NGFF Series Right Angle Edge Connector is engineered for high-density, reliable PCB interconnections, featuring 67 contacts arranged in a 2-row configuration with a 0.5 mm pitch. Its right angle orientation enables efficient use of space in electronic assemblies.
The connector's gold-plated copper alloy contacts ensure excellent electrical conductivity and resistance to corrosion, while the black high temperature thermoplastic housing provides durability and stability in harsh conditions. It supports operating temperatures from -40°C up to 80°C, making it suitable for a variety of electronic applications.
Rated for 500 mA current and 50 V voltage, this connector ensures safe and effective signal transmission. The integrated keying mechanism prevents incorrect mating, enhancing system reliability. The male contact gender design is compatible with standard female connectors within the M.2 NGFF product line.
This connector is ideal for use in electronics manufacturing, industrial machinery, computing hardware, telecommunications equipment, and other commercial and industrial applications requiring compact, robust board-to-board connections.
Right angle orientation supporting compact PCB design. 67 gold-plated copper alloy contacts for reliable connection. 0.5 mm pitch suitable for high-density applications. High temperature thermoplastic housing for enhanced durability.
Operating temperature range from -40°C to 80°C. Current rating of 500 mA and voltage rating of 50 V. Keying feature to prevent misalignment during assembly. Male contact gender for compatibility with M.2 NGFF connectors.
Complies with modern Next Generation Form Factor standards.
Each unit represents a precision engineered connector from TE Connectivity, designed to meet demanding electrical and mechanical requirements in a variety of industrial and commercial sectors. For more Edge Connector solutions and electronic components, continue exploring our extensive EnvMart catalog.
