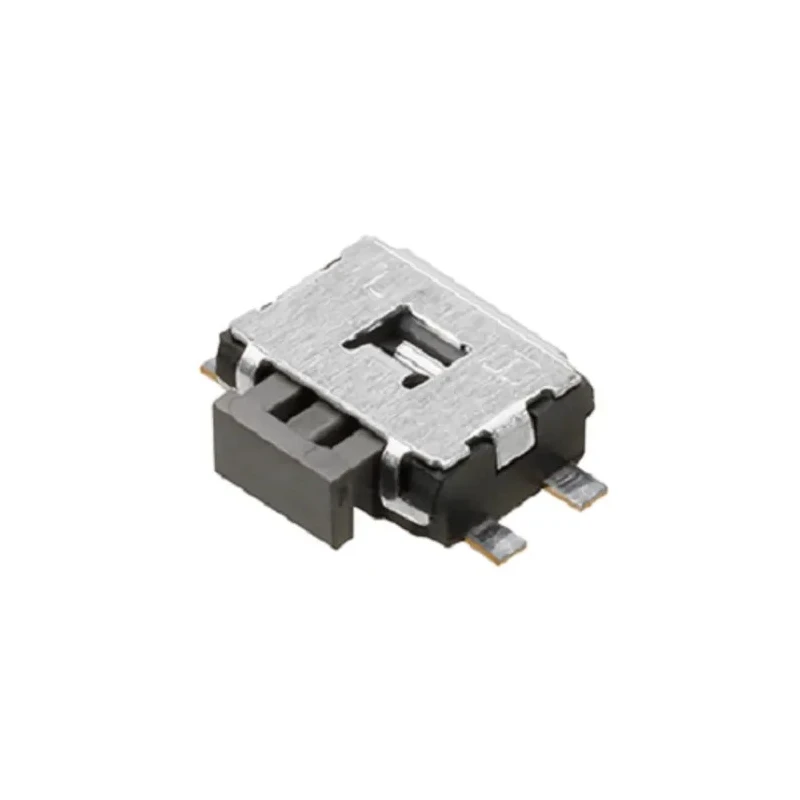

Panasonic Black Tactile Switch Push Plate SPST 50mA 12 V dc Surface EVQPUA02K
Specifications
| Country of Origin | China |
|---|---|
| Brand | Panasonic |
| Height | 1.66mm |
| Model | EVQPUA02K |
| Mount Type | Surface |
| Series | EVQP |
| Contact Configuration | SPST |
| Terminal type | Straight |
| Switch Operation | Push-On |
| Actuator Colour | Black |
| Contact DC Voltage | 12V dc |
| Actuator Style | Push Plate |
| Actuator Orientation | Straight |
| Switch Contact Current | 50mA |
| Operating Force | 2.2N |
| Mechanical Life | 100000Cycles |
Key Features
- Single pole single throw (SPST) contact configuration for simple on/off operation.
- Rated for 50mA contact current at 12 V dc, suitable for low power applications.
- Push plate actuator style with black colour and straight orientation for easy tactile feedback.
- Surface mount type with a compact height of 1.66 mm and 2.2N operating force.
- Mechanical life rated at 100,000 cycles ensuring long-term durability.
- Designed with straight terminal type enabling easy PCB mounting.
- Series EVQP with push-on switch operation for precise control.
- Operating temperature range suitable for general electronic device environments.
Product Description
Panasonic EVQPUA02K Black Tactile Switch Push Plate SPST 50mA 12 V dc Surface switch offers reliable momentary switching for electronic devices and applications. It is designed with a push-on operation and surface mount configuration, making it ideal for compact circuit designs in consumer electronics, communications, and automation equipment.
This tactile switch features a single pole single throw (SPST) contact arrangement, rated at 50 milliamps and 12 volts DC, suitable for controlling low-current circuits with precision. Its push plate actuator in black color provides a tactile feedback experience with an operating force of 2.2 Newtons ensuring ease of use and responsiveness.
The switch comes with a low profile height of just 1.66mm, supporting compact and space-efficient PCB layouts. Mechanical endurance is rated at 100,000 cycles, delivering extended reliability under frequent actuation.
The straight terminal design facilitates straightforward printed circuit board mounting and soldering, while the surface mount body allows easy integration into modern electronic assemblies.
Made in China, this unit belongs to Panasonic's EVQP series, emphasizing compact size and reliable performance in a broad range of industrial, laboratory, and consumer electronic applications.
Single pole single throw (SPST) configuration ensures reliable switching function. Compact dimensions of 4.7 mm x 3.5 mm by 1.66 mm height for space-saving layouts. Push plate actuator provides effective tactile feedback in black color.
Surface mount type supports modern PCB assembly processes. Operating contact current of 50mA at 12 V dc for low power circuits. Endurance life of 100,000 cycles enhances product longevity. Operating force of 2.2N for consistent user experience.
Straight terminal type simplifies circuit board installation. Suitable for electronics manufacturing, automation, and control systems.
This tactile switch is a suitable choice for engineers and manufacturers requiring a dependable, compact momentary switch with clear tactile operation. Browse our range of Tactile Switches and other control switches on EnvMart for comprehensive industrial and electronics component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch features a single pole single throw (SPST) contact configuration, allowing for simple on/off operation.
It is rated for a contact current of 50mA at a voltage of 12V DC, making it suitable for low power applications.
This model is designed for surface mounting, which facilitates easy integration into modern electronic assemblies.
The dimensions of this switch are 4.7 mm x 3.5 mm with a height of 1.66 mm, supporting compact PCB layouts.
The operating force for this switch is 2.2 Newtons, ensuring a consistent user experience when pressed.
The mechanical life of this switch is rated at 100,000 cycles, providing extended reliability under frequent use.
It features a push plate actuator style in black color, which provides effective tactile feedback.
The switch is designed with a straight terminal type, which simplifies installation on printed circuit boards.
This model is part of the Panasonic EVQP series, emphasizing compact size and reliable performance.
This tactile switch is suitable for use in consumer electronics, communications, and automation equipment due to its reliable momentary switching.
The switch is manufactured in China, as indicated in the product specifications.
The switch operates on a push-on mechanism, allowing for precise control in electronic devices.
