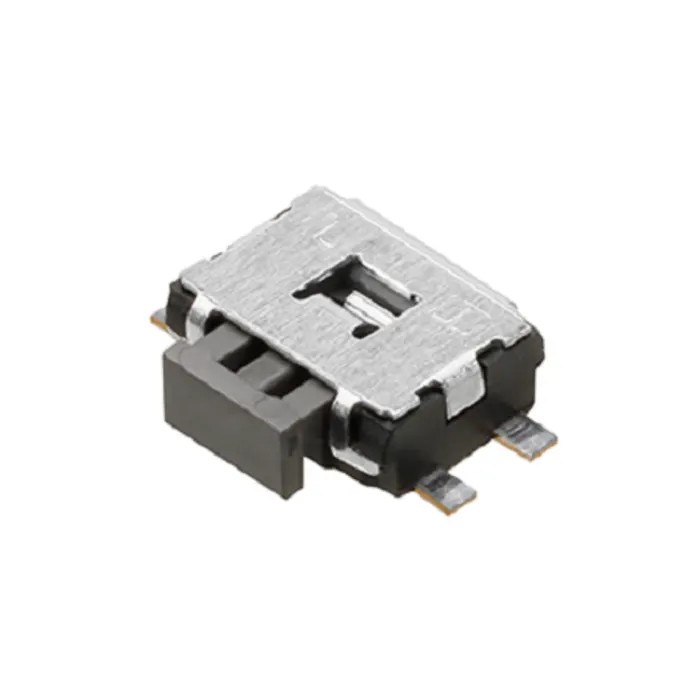

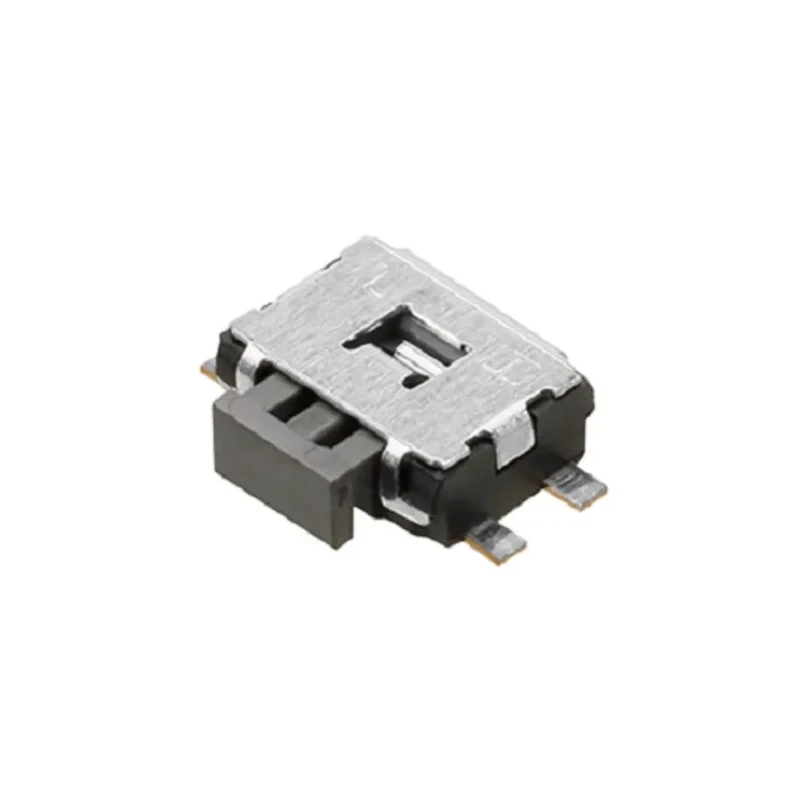

Panasonic Black Tactile Switch Push Plate SPST 50mA 12V dc Surface EVQPUA02K

Panasonic EVQPUA02K Black Tactile Switch Push Plate is a compact and reliable surface-mount tactile switch designed for applications requiring precise electrical switching. The push plate actuator in black color provides distinct tactile feedback, ideal for user interfaces in various electrical and automation devices.

This switch features a Single Pole Single Throw (SPST) contact configuration, supporting a contact current of 50mA at 12V DC, suitable for low-power switching applications. Its slender height of 1.66 mm and small footprint of 4.7 mm by 3.5 mm make it appropriate for space-constrained layouts.

The switch employs a push-on snap action operation with a straight terminal type, allowing for straightforward surface mounting and soldering procedures. Its robust mechanical life of 100,000 cycles ensures dependable performance over extended use.

With an operating force of 2.2N, the tactile feedback is firm yet comfortable for end-users. The device maintains operational stability within a temperature range from - 20°C to +70°C, suitable for typical industrial, commercial, and consumer electronic environments.

Single Pole Single Throw (SPST) contact configuration. Push plate actuator in black for clear tactile indication. Surface mount type with straight terminals. 50mA contact current at 12V DC. Compact size with 4.7 mm x 3.5 mm dimensions and 1.66 mm height.

Operating force of 2.2N for reliable tactile feel. Mechanical endurance of 100,000 cycles for long life. Operating temperature range from - 20°C to +70°C.

This tactile switch model EVQPUA02K by Panasonic is suited for diverse electrical applications including home automation, control panels, instrumentation, and other industries requiring reliable low-current switching components.
