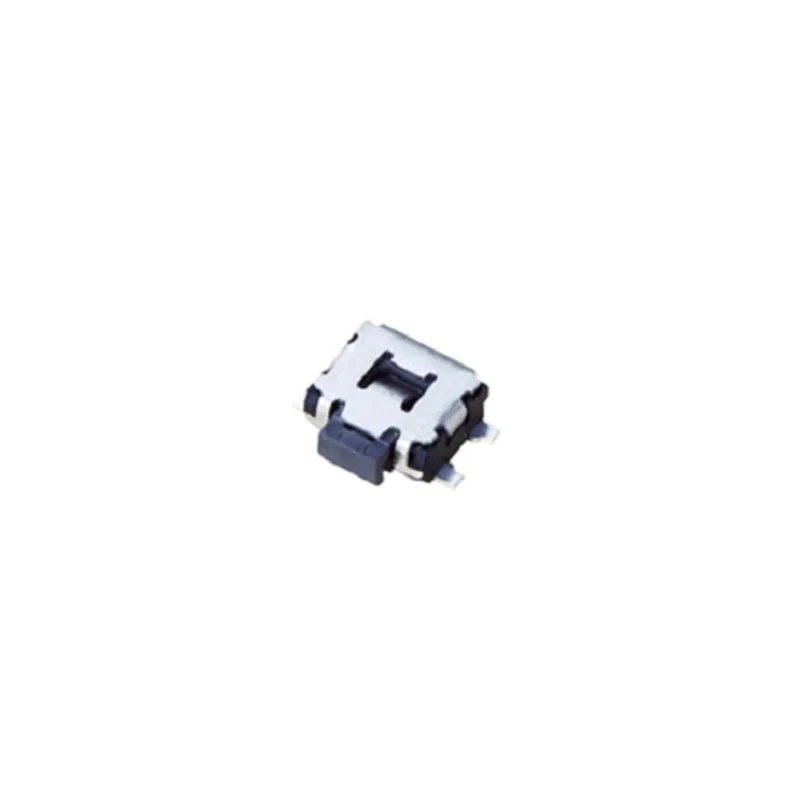

Panasonic Black Grey Surface Mount Tactile Switch Push Plate 1.7mm SPST 50mA 12V DC EVQP7K01P
Specifications
| Country of Origin | China |
|---|---|
| Brand | Panasonic |
| Height | 1.35mm |
| Model | EVQP7K01P |
| Mount Type | Surface |
| Series | EVQP |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Terminal type | Straight |
| Switch Operation | Push-On |
| Actuator Colour | Black, Grey |
| Actuator Length | 1.7mm |
| Contact DC Voltage | 12V dc |
| Actuator Style | Push Plate |
| Switch Contact Current | 50mA |
Key Features
- Surface mount design ensures easy installation and compatibility with various circuit boards.
- Black and grey push plate actuator provides tactile feedback and durability.
- Electrical rating supports resistive loads at 12 V DC and 50 mA current.
- Mechanical operating force options of 1.6 N and 2.2 N for reliable user operation.
- Maximum operating temperature up to 70°C suitable for a wide range of electronic applications.
- Compact dimensions with a height of 1.35 mm support space-saving designs.
- Non-illuminated switch suitable for portable electronic equipment and household controls.
- Side-operational SMD type with straight terminal configuration for flexible PCB mounting.
Product Description
Panasonic EVQP7K01P is a surface mount tactile switch featuring a black and grey push plate actuator with a 1.7 mm stroke. This SPST switch supports a contact current of 50 mA and DC voltage rating of 12 V, designed for reliable snap-action push-on operation.
It is engineered for use in applications requiring compact, low-profile switching solutions such as portable electronic equipment, household appliances, and automation controls. The switch has a maximum operating temperature of 70°C and offers mechanical operating forces of 1.6 N or 2.2 N, ensuring consistent tactile feedback.
The device incorporates a straight terminal type and surface mount package style, allowing easy integration on printed circuit boards (PCB) with enhanced production efficiency. The slim height of 1.35 mm enables installation in tight spaces without compromising performance.
This tactile switch series EVQP is non-illuminated and lacks specific standards or approvals, suitable for general electronic control purposes.
The black and grey actuator push plate provides durability and tactile clarity when used in user interface applications. Electrical ratings ensure safe operation within specified limits of 12 volts DC and 50 mA resistive current load, making it ideal for low power switching circuits.
Surface mount type for streamlined PCB assembly. Push-on snap action with SPST contact configuration. Non-illuminated black and grey actuator in push plate style. Supports 50 mA current continuous operation at 12 V DC. Compact dimensions and low profile with 1.35 mm height.
Operating temperature range suitable up to 70°C. Mechanical force options provide design flexibility for actuation feel. Manufactured in China with robust quality controls.
This Panasonic tactile switch is an excellent choice for electronics manufacturers and designers needing reliable, compact, and tactile user controls for a diverse set of industrial, household, and consumer electronic products.
Explore more Tactile Switches under the Electronics & Electricals category at EnvMart for compatible, high-quality components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The tactile switch supports a contact current of 50 mA and a DC voltage rating of 12 V.
The maximum operating temperature for this switch is 70°C, making it suitable for a wide range of electronic applications.
This model offers mechanical operating force options of 1.6 N and 2.2 N for reliable user operation.
It features a surface mount design, allowing for easy integration on printed circuit boards (PCB).
The switch has a compact height of 1.35 mm, supporting space-saving designs.
The actuator style is a push plate, available in black and grey colors, providing tactile feedback.
The switch features a SPST (Single Pole Single Throw) contact configuration for straightforward operation.
It has a straight terminal type, which facilitates flexible PCB mounting.
No, this tactile switch is non-illuminated, making it suitable for various electronic control applications.
It is designed for use in portable electronic equipment, household appliances, and automation controls.
The tactile switch is manufactured in China, adhering to robust quality controls.
This model belongs to the EVQP series, which is known for its compact and reliable switching solutions.
