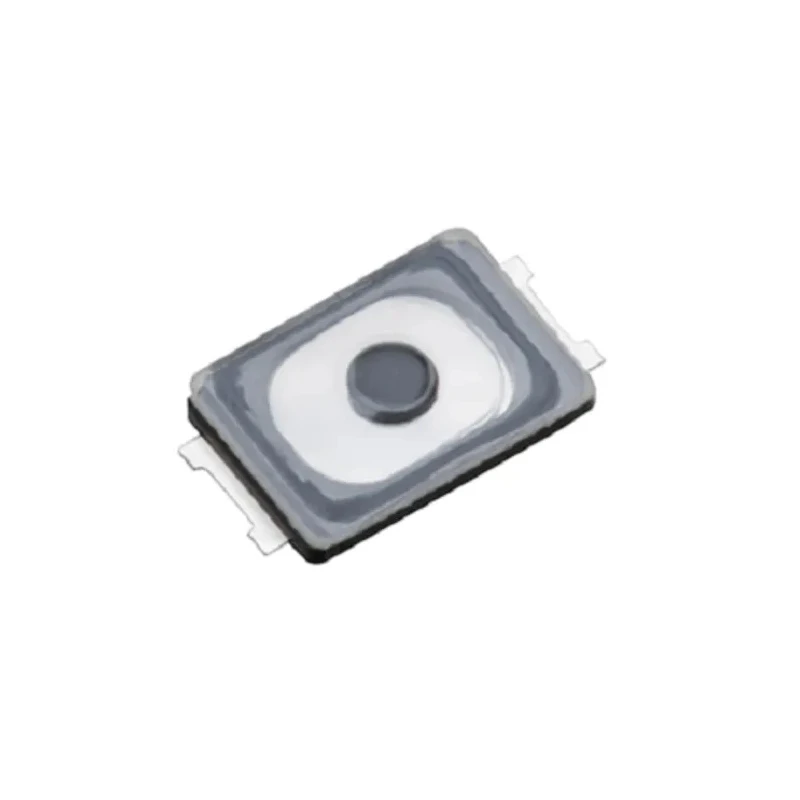

Panasonic Black Tactile Switch Push Plate IP67, 0.85 mm Actuator, SPST 20mA 15 V DC Surface Mount
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Height | 0.6mm |
| Model | IP67 |
| IP Rating | IP67 |
| Mount Type | Surface |
| Series | EVPAW |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Terminal type | Straight |
| Switch Operation | Push-On |
| Actuator Colour | Black |
| Actuator Length | 0.85mm |
| Contact DC Voltage | 15V dc |
| Actuator Style | Push Plate |
| Actuator Orientation | Straight |
| Switch Contact Current | 20mA |
| Operating Force | 1.6N |
| Mechanical Life | 500000Cycles |
Key Features
- The switch operates at a contact DC voltage of 15 V with a current rating of 20 mA.
- Features a push plate actuator style with straight orientation for precise operation.
- Designed for surface mount use with a maximum operating temperature of 85°C.
- Mechanical life of 500,000 cycles ensures durability and reliability.
- Operating force is 1.6 N for optimal tactile feedback.
- Complies with no specific standards or approvals but offers robust performance.
- Ideal for portable electronic equipment such as mobile phones and portable audio devices.
Product Description
Panasonic EVPAWBD40 is a Black Tactile Switch Push Plate with IP67 protection, designed for surface mounting applications. It features a compact 0.85 mm actuator length and SPST contact configuration suitable for low power circuits up to 20 mA and 15 V DC. The push-on switch provides reliable mechanical performance with an operating force of 1.6 N and mechanical life rated at 500,000 cycles.
This tactile switch is commonly used in portable electronic devices, including mobile phones and portable audio equipment, where robust and precise switching is required. The surface mount design with an IP67 rating ensures dust and water resistance, making it suitable for harsh environments.
The switch’s black actuator push plate with a straight orientation offers excellent tactile feedback and operational precision, ideal for various industrial, electrical, and consumer electronic applications.
Operating temperature ranges from -40°C to +85°C, ensuring wide usability across temperatures encountered in multiple industrial and consumer scenarios. The switch supports a contact DC voltage of 15 V and a current of 20 mA.
Offers an actuator style push plate and straight orientation for ease of use. Maximum operating temperature of 85°C ensures reliability in demanding environments. Mechanical life of 500,000 cycles demonstrates long-lasting durability.
IP67 rating guarantees protection against dust and water ingress.
This Panasonic tactile switch is essential in applications requiring consistent, reliable switching with a compact form factor and robust environmental protection. Browse Panasonic Tactile Switches and similar products on EnvMart for comprehensive industrial and consumer electronic switch solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The tactile switch operates at a contact DC voltage of 15 V and has a current rating of 20 mA.
It has a maximum operating temperature of 85°C, making it suitable for demanding environments.
This model features an SPST (Single Pole Single Throw) contact configuration, suitable for low power circuits.
The actuator length is 0.85 mm, designed for precise operation.
It has a mechanical life rated at 500,000 cycles, ensuring long-lasting performance.
The operating force for this tactile switch is 1.6 N, providing optimal tactile feedback.
This model has an IP67 rating, which ensures protection against dust and water ingress.
Yes, it is specifically designed for surface mount applications.
The actuator style is a push plate with a straight orientation for ease of use.
It is commonly used in portable electronic devices, such as mobile phones and portable audio equipment.
The country of origin for this tactile switch is India.
This model features straight terminals for connection.
