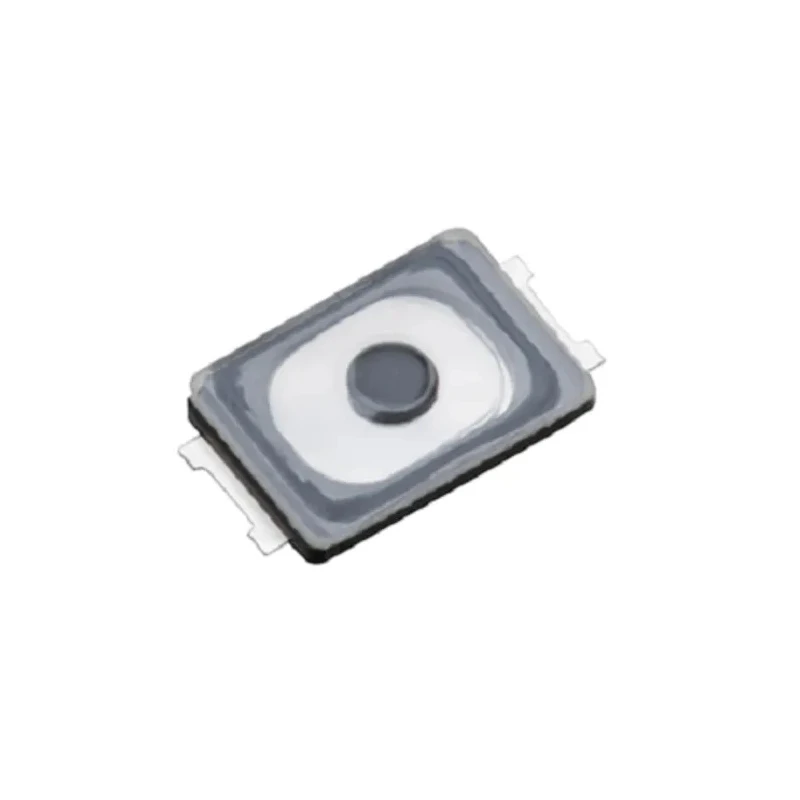

Panasonic Black Surface Mount IP67 Tactile Switch Push Plate 0.85 mm SPST 20mA 15 V dc IP67

Panasonic IP67 model EVPAWBD40 is a high-quality black tactile switch designed for surface mounting in electronic equipment. It features a push plate actuator with a compact 0.85 mm length, enabling precise and reliable switching in devices such as mobile phones and portable audio equipment.

This tactile switch operates using a Single Pole Single Throw (SPST) configuration with a rated contact DC voltage of 15 V at 20 mA current, suitable for low power electronic circuits. Its actuator is straight oriented and the terminal type is straight, making it compatible with various PCB layouts.

The switch is engineered to withstand harsh environments with an IP67 rating, providing complete dust ingress protection and resistance to water immersion. It can operate reliably within a temperature range from minus 40 degrees Celsius up to 85 degrees Celsius, ensuring durability across a wide variety of industrial and consumer applications.

The operating force required to actuate the switch is modest at 1.6 Newtons, allowing tactile feedback with minimal effort. The sleek design with a mechanical life of up to 500,000 cycles promises both longevity and consistency in performance.

Typical uses include integration in portable electronic devices, industrial control panels, automation systems, and other precision electronic assemblies demanding compact, reliable tactile input devices.

Black actuator color with straight orientation provides reliable push-on operation. Single Pole Single Throw (SPST) contact configuration supports up to 20mA at 15 V DC. Designed for use in portable electronic devices and offers surface mount convenience.

Operates at temperatures from -40°C to +85°C with a maximum operating temperature of 85°C. Mechanical life rated for 500,000 cycles ensuring durability. IP67 rated for dust-tight and water immersion protection. Low operating force of 1.6 Newtons for ease of actuation.

Compact height of 0.6 mm suits space-constrained applications. Explore more Tactile Switches and electronic components in the Electronics & Electricals category on EnvMart for your industrial, manufacturing, and engineering projects.
