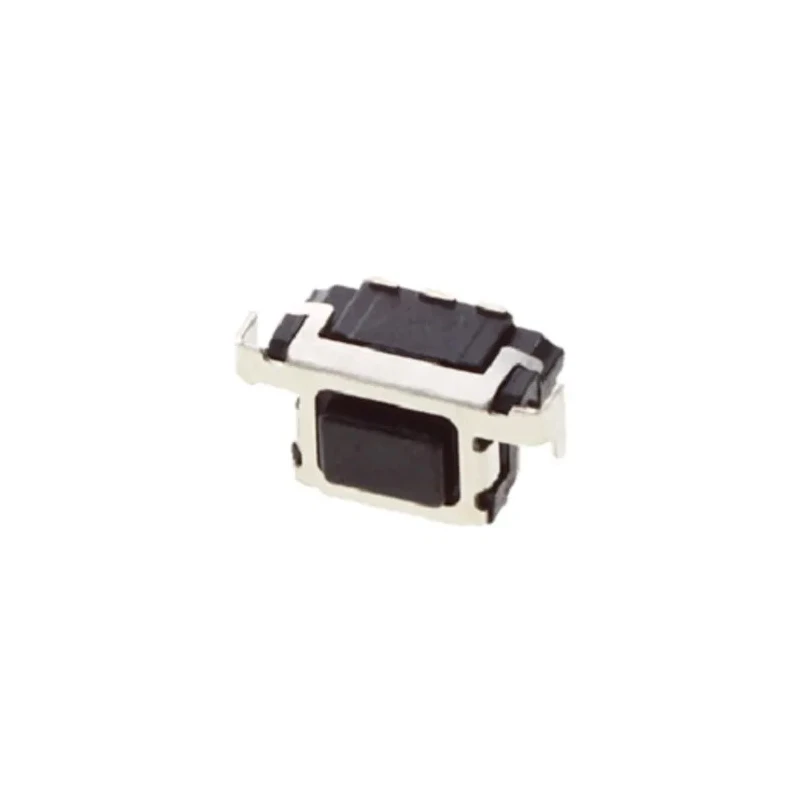

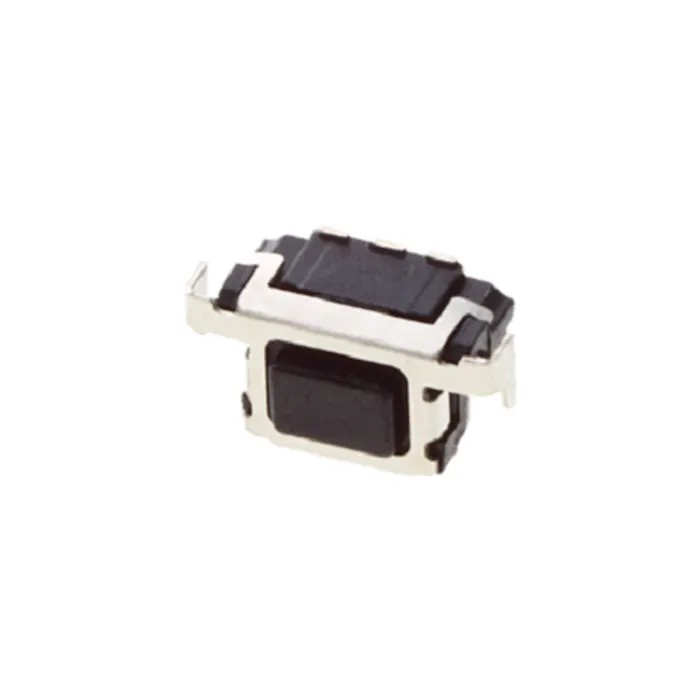

Panasonic Black, Grey Tactile Switch Push Plate 2.2 mm SPST 20mA 15 V dc Edge EVPAEGE2A
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 2.6mm |
| Model | EVPAEGE2A |
| Mount Type | Edge |
| Series | EVPAE |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Terminal type | Solder |
| Switch Operation | Push-On |
| Actuator Colour | Black, Grey |
| Actuator Length | 2.2mm |
| Contact DC Voltage | 15V dc |
| Actuator Style | Push Plate |
| Switch Contact Current | 20mA |
| Operating Force | 1.6N |
Key Features
- The switch features a black and grey push plate actuator for easy operation.
- Edge mount type with 1.6N operating force ensures precise snap action.
- Compact size of 4.5 mm x 2.2 mm with 2.6 mm height supports space-saving designs.
- Maximum operating temperature is 85°C with electrostatic discharge protection.
- Suitable for portable electronics like mobile phones and cameras.
- Non-illuminated design for low voltage DC circuit switching.
- SPST contact configuration provides reliable single pole single throw operation.
- Solder terminal type ensures secure PCB connections.
Product Description
Panasonic EVPAEGE2A tactile switch push plate is a high-quality SPST snap-action switch with a compact 2.2 mm actuator length and black, grey color actuator. It operates reliably at 20mA current and 15 V dc voltage, making it ideal for low power electronic circuits.
The edge mount design enhances soldering strength and durability, providing long operational life even under frequent use. This switch has a maximum operating temperature rating of 85°C and includes electrostatic discharge (ESD) protection, ensuring device safety.
With an operating force of 1.6N, this push-on switch offers precise tactile feedback and quick response for user control interfaces. It is non-illuminated and designed for push plate style actuation, suitable for integration in portable electronics such as mobile phones, digital still cameras, camcorders, and portable audio players.
The small footprint of 4.5 mm by 2.2 mm height of 2.6 mm facilitates space-efficient circuit designs. The switch contacts have a solder terminal type for secure PCB connections. The black and grey actuator offers visual distinction and ease of use.
SPST contact configuration provides single pole single throw switching suitable for on/off control. Edge mount type improves solder joint mechanical reliability in operating direction. Electrical rating supports resistive loads up to 20mA at 15 V dc.
Compliant with Panasonic’s EVPAE series ensuring quality and performance.
This tactile switch is manufactured in Japan and is ideal for industrial, commercial, and consumer electronic applications requiring reliable low current switching with compact dimensions and ergonomic actuator design.
EnvMart offers this Panasonic EVPAEGE2A Tactile Switch as a dependable component for electronics assembly and design projects. Browse related switch components and electronic parts in the Electronics & Electricals category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The tactile switch features an SPST (Single Pole Single Throw) contact configuration, suitable for on/off control applications.
This model has a maximum operating temperature of 85°C, ensuring it can function effectively in various environments.
The switch requires an operating force of 1.6N for actuation, providing tactile feedback during operation.
The actuator length of this switch is 2.2mm, with a compact overall size of 4.5mm x 2.2mm and a height of 2.6mm.
It utilizes a solder terminal type, which ensures secure connections to printed circuit boards (PCBs).
The switch supports a contact DC voltage of 15V and a current rating of 20mA, making it suitable for low power electronic circuits.
The actuator is designed in a push plate style, which allows for easy operation and user interaction.
This tactile switch is suitable for integration in portable electronics such as mobile phones, digital cameras, camcorders, and portable audio players.
This tactile switch is manufactured in Japan, ensuring adherence to quality standards.
Yes, the switch includes electrostatic discharge (ESD) protection, enhancing device safety during operation.
It belongs to the Panasonic EVPAE series, which is known for its reliable performance in electronic applications.
The switch features an edge mount type, which improves solder joint mechanical reliability in the operating direction.
