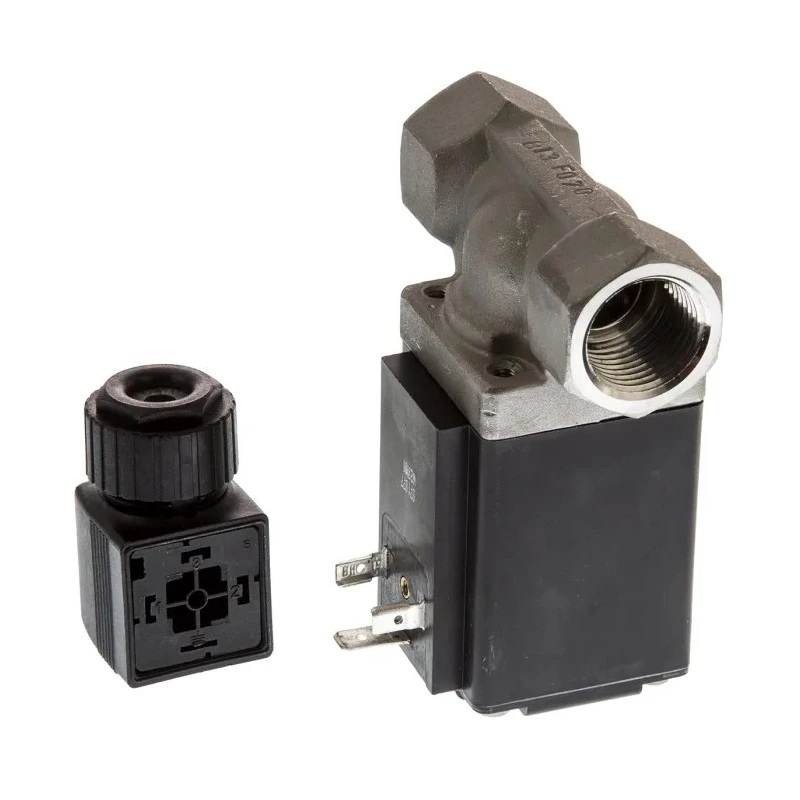

Burkert Stainless Steel 2-Port Normally Closed Solenoid Valve 24V ac/dc 12mm Orifice 048606
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Burkert |
| Body Material | Stainless Steel |
| Maximum Operating Pressure | 16 bar |
| Model | 048606 |
| Series | 0290 |
| Number Of Ports | 2 |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -30°C |
| Orifice Diameter | 12mm |
| Supply Voltage | 24V ac/dc |
| Standards/Approvals | UR, CSA, UL |
| Default Valve Position | NC |
| Maximum Opening Time | 250ms |
| Flow Factor Kv | 2.8m³/h |
| Maximum Closing Time | 2s |
| Burkert Solenoid Valve 078654, 2 Port, NC, 24V ac/dc, 1/2 inBrand | Burkert |
Key Features
- Operates at 24V AC/DC voltage for flexible power supply.
- Normally closed valve configuration ensures safety in default state.
- Orifice diameter of 12mm allows flow factor Kv of 2.8 m³/h.
- Maximum operating pressure of 16 bar enables robust industrial use.
- Extended operating temperature range from -30°C to +55°C.
- Durable stainless steel body material ensures corrosion resistance.
- Servo assist mechanism for efficient valve operation.
- 3 Pin DIN connector rated IP65, adjustable through 360° in 90° increments.
Product Description
Burkert 048606 stainless steel 2-Port Normally Closed (NC) Solenoid Valve operates at 24V AC/DC supply voltage, offering reliable flow control for various gases and liquids. This valve features a 12mm orifice diameter providing a flow factor of Kv 2.8 m³/h and supports a maximum operating pressure of 16 bar. It is engineered for an operating temperature range from -30°C to +55°C, suitable for many industrial applications including fluid power, mechanical systems, and automation.
The valve belongs to the Burkert Series 0290 and incorporates a servo assist mechanism to enhance valve operation efficiency. Its compact design includes a 3 Pin DIN connector rated to IP65 standards, allowing flexible mounting positions adjustable in 90° increments. The stainless steel body provides strong corrosion resistance, ensuring durability in harsh working environments.
Certified under UR, CSA, and UL standards, the valve complies with rigorous industrial safety and performance requirements. Although it lacks hazardous area certification, it is ideal for use in non-hazardous zones handling domestic water supplies, neutral oils, and various fluids and gases. The maximum opening time is 250ms, and the valve closes within 2 seconds, making it responsive for automated systems.
The valve's closed default position enhances safety by preventing flow when de-energized. Burkert's reputation for precision and reliability underpins this product's suitability for industrial, laboratory, HVAC, manufacturing, and water treatment plant applications.
Operates at 24V AC/DC voltage for flexibility. Normally closed configuration prevents flow in power-off state. 12mm orifice diameter supports effective flow management. Maximum pressure capacity of 16 bar for demanding conditions.
Temperature tolerance from -30°C to +55°C for versatile use. Robust stainless steel body for corrosion resistance. Servo assist technology for efficient operation. 3 Pin DIN connector with IP65 rating and adjustable mounting.
Certified to UR, CSA, and UL standards. Manufactured in Germany ensuring quality assurance.
Set your process controls with confidence using the Burkert 048606 Solenoid Valve, engineered to meet stringent performance parameters and diverse industrial demands. Explore related Burkert valves and industrial automation products at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this solenoid valve is 16 bar, making it suitable for demanding industrial applications.
This model features a 12mm orifice diameter with a flow factor of Kv 2.8 m³/h, allowing effective flow management.
The valve operates within a temperature range of -30°C to +55°C, accommodating various industrial environments.
It includes a 3 Pin DIN connector rated to IP65 standards, allowing for flexible mounting positions adjustable in 90° increments.
The valve is normally closed (NC), which prevents flow when it is not powered, enhancing safety.
The maximum opening time is 250ms, and it closes within 2 seconds, making it responsive for automated systems.
This valve is certified under UR, CSA, and UL standards, ensuring compliance with industrial safety and performance requirements.
The body of the valve is made from stainless steel, providing strong corrosion resistance for harsh environments.
It operates at a supply voltage of 24V AC/DC, allowing for flexible power supply options.
This model belongs to the Burkert Series 0290, indicating its design and application within their product line.
It is suitable for various industrial applications, including fluid power, mechanical systems, and automation, handling domestic water supplies and neutral oils.
The solenoid valve is manufactured in Germany, ensuring quality assurance in its production.
