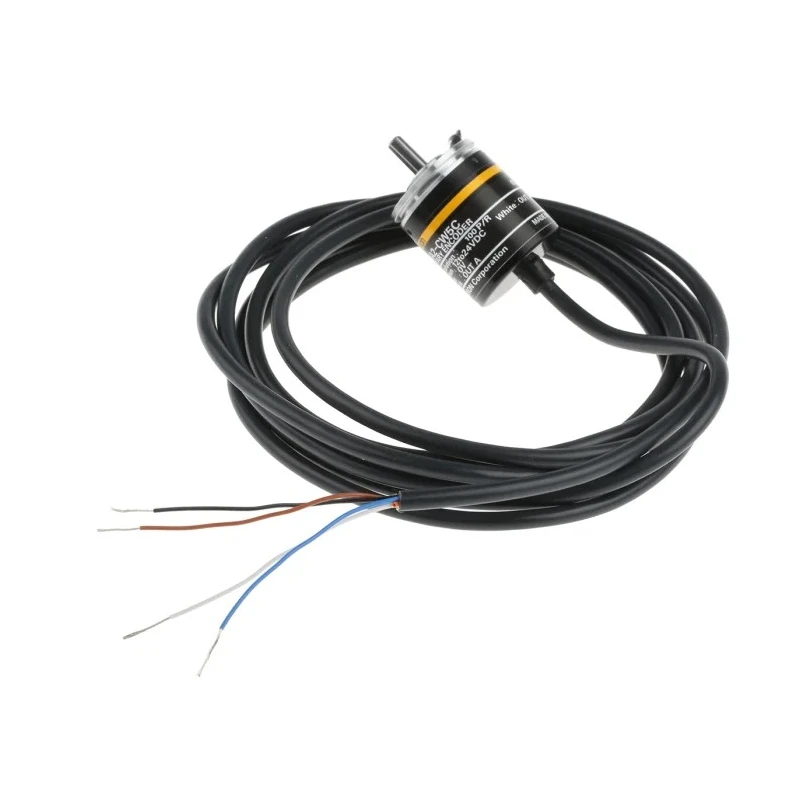

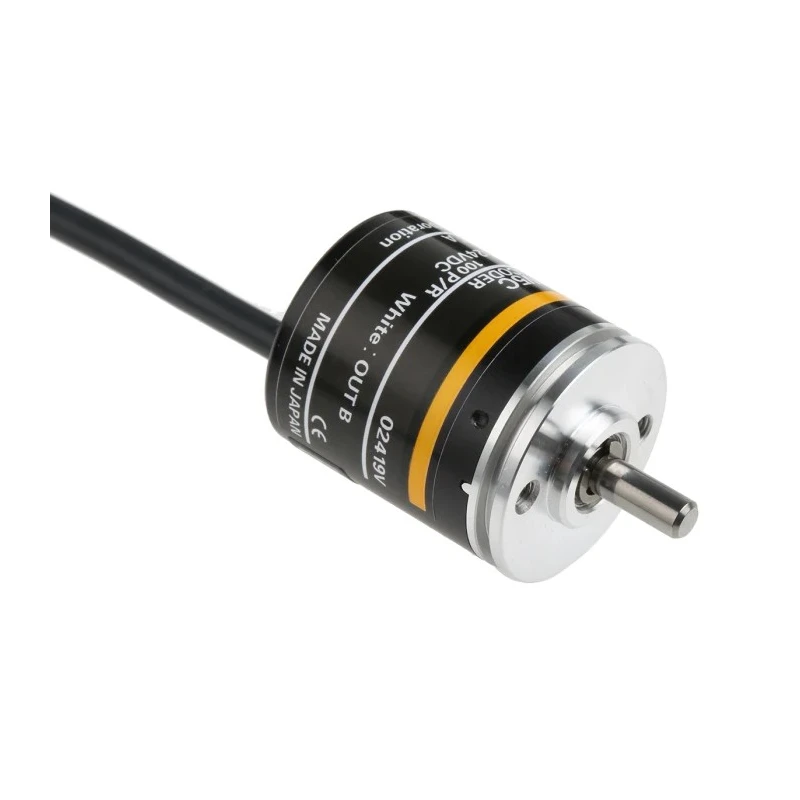

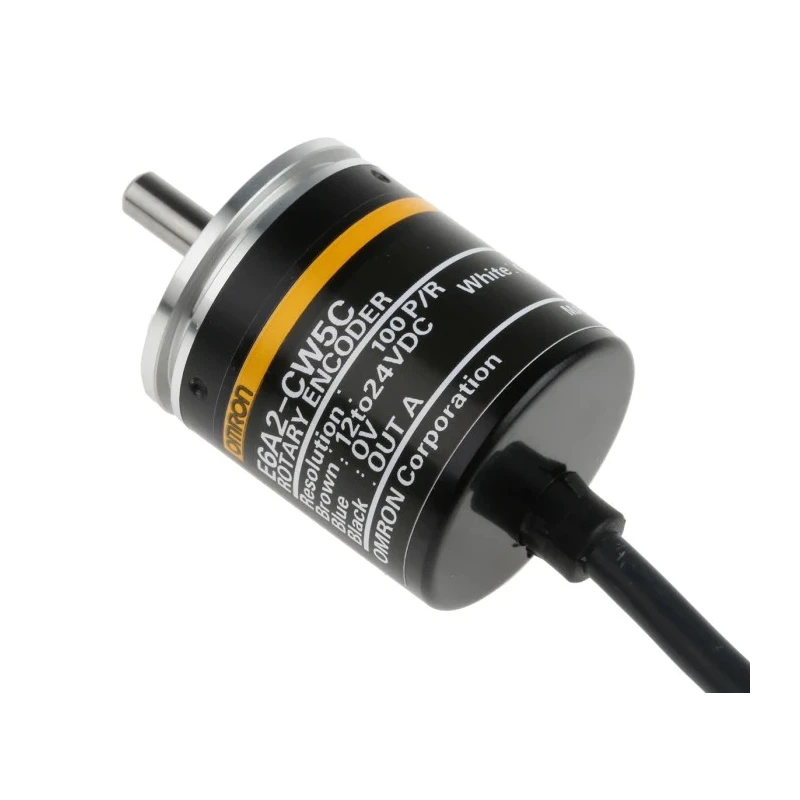

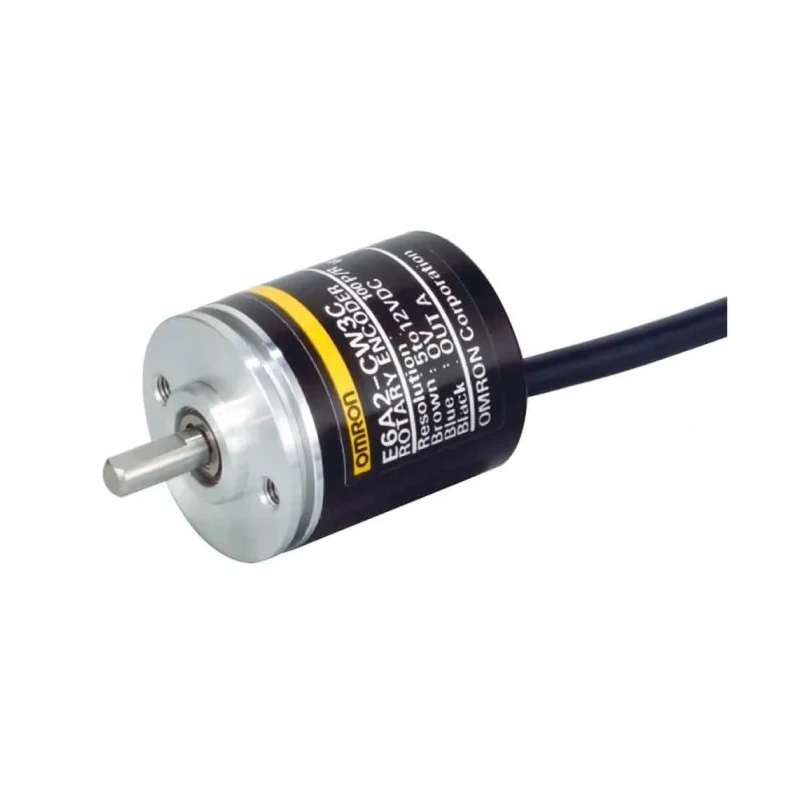

Omron Incremental Encoder 24V DC 100 PPR NPN Open Collector Signal Solid Shaft 4 mm E6A2-CW5C 100P/R 2M
Specifications
| Country of Origin | India |
|---|---|
| Brand | Omron |
| Model | E6A2-CW5C 100P/R 2M |
| IP Rating | IP50 |
| Mount Type | Chassis |
| Series | E6A2 |
| Overall Width | 22mm |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -10°C |
| Shaft Diameter | 4mm |
| Overall height | 46.5mm |
| Switching Frequency | 30kHz |
| Shaft Type | Solid |

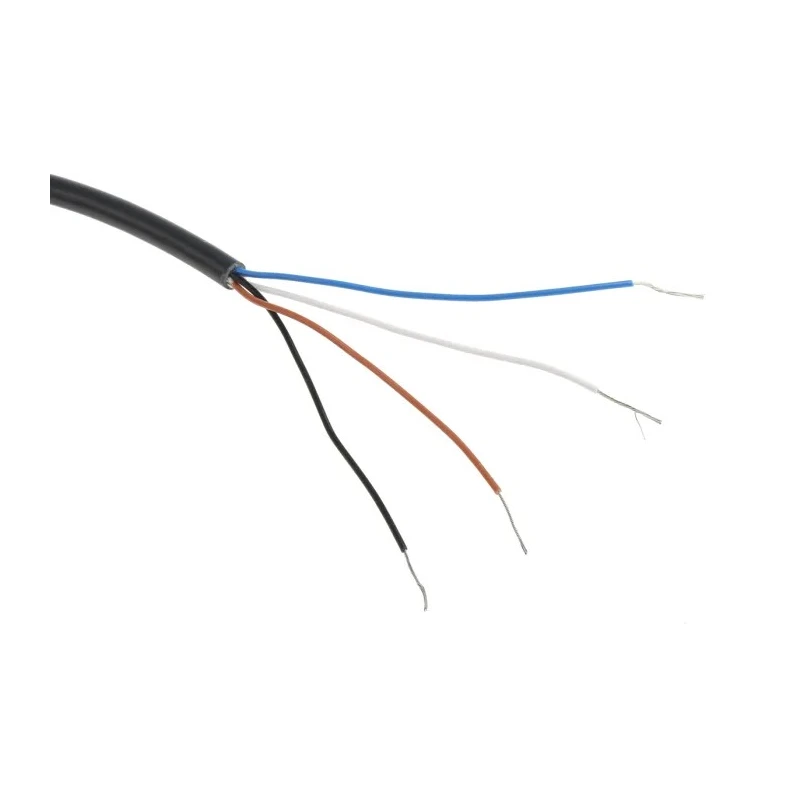

| Terminal type | Cable |
| Interface Type | Cable |
| Pulses per Revolution | 100ppr |
| Standards/Approvals | IEC |
| Maximum Supply Voltage | 24V dc |
| Overall Depth | 25mm |
| Encoder Technology | Incremental |
| Maximum Revolutions | 5000rpm |
| Output Signal Type | NPN Open Collector |
| External diameter E6A2 | 25 mm |
| External diameter E6B2 | 40 mm |
| External diameter E6C2 | 50 mm |
| External diameter E6FA | 60 mm |
Key Features
- Provides accurate rotational displacement measurement up to 5000 RPM.
- Features a solid 4 mm diameter shaft for robust performance.
- Equipped with a cable interface and chassis mount type for easy installation.
- Compliant with IEC standards and IP50 rated for environmental protection.
- Supports operating temperatures from -10°C to 55°C for versatile industrial use.
- Switching frequency up to 30 kHz ensures responsive signal output.
- Compact dimensions with overall height 46.5 mm and width 22 mm make it suitable for tight spaces.
Product Description
Omron E6A2-CW5C 100P/R 2M is a high-precision incremental encoder designed for industrial motion control applications. Running on 24V DC supply voltage, it outputs an NPN open collector signal suitable for pulse counting and rotational displacement detection.
This encoder features a robust solid shaft of 4 mm diameter that ensures reliable mechanical coupling in various machinery. With a pulse rate of 100 PPR, it effectively translates shaft rotations into electrical pulses, supporting rotational speeds of up to 5000 RPM with a switching frequency of 30 kHz.
The incremental encoder is designed to operate within a temperature range of -10°C to 55°C and is IP50 rated, providing protection against dust ingress in moderately harsh environments. Its chassis mounting type and cable interface simplify installation and wiring requirements in manufacturing, automation, and process control systems.
Compliant with IEC standards, this encoder is suitable for applications including industrial machinery, robotics, HVAC, packaging equipment, and more. Its compact form factor with dimensions of approximately 46.5 mm height, 22 mm width, and 25 mm depth allows flexible integration in constrained spaces.
Accurate pulse output suitable for precise motion control tasks. Durable solid shaft and IP50 rating for reliable operation. Wide operating temperature and robust switching frequency. IEC compliance ensures quality and safety standards.
Easy chassis mounting and cable interface enhance usability.
Omron Incremental Encoders belong to a trusted product family widely used in industrial automation and sensor applications. Browse EnvMart's Sensors and Automation & Control Gear categories for complementary components and related industrial equipment.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum rotational speed of 5000 RPM.
It outputs an NPN open collector signal suitable for pulse counting and rotational displacement detection.
The overall dimensions are approximately 46.5 mm in height, 22 mm in width, and 25 mm in depth.
It has an IP50 rating, providing protection against dust ingress in moderately harsh environments.
This encoder operates on a supply voltage of 24V DC.
It features a pulse rate of 100 pulses per revolution (PPR).
It can operate within a temperature range of -10°C to 55°C.
It is designed for chassis mounting, which simplifies installation and wiring.
The switching frequency is up to 30 kHz, ensuring responsive signal output.
It features a solid shaft with a diameter of 4 mm for reliable mechanical coupling.
It is compliant with IEC standards, ensuring quality and safety.
This encoder is suitable for applications in industrial machinery, robotics, HVAC, and packaging equipment.
