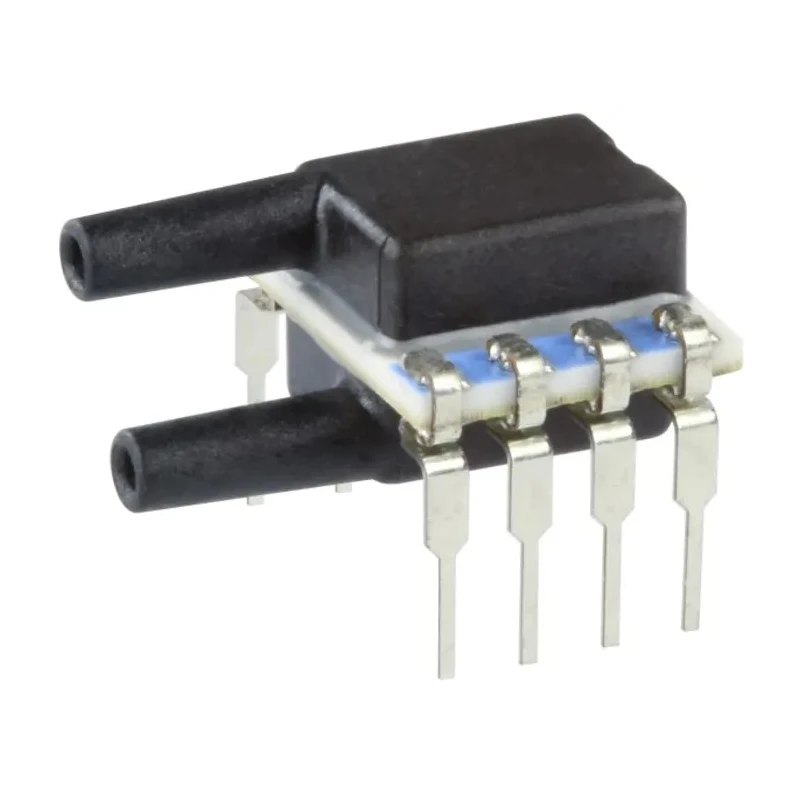

Honeywell Technologies Differential Pressure Sensor Through Hole DIP Package 8-Pin NSCDJJN005NDUNV

Honeywell NSCDJJN005NDUNV Differential Pressure Sensor is a precision piezoresistive silicon sensor designed with a through hole mount and DIP package containing 8 pins. It provides a ratiometric analog output and is uncompensated and unamplified, offering flexibility for users to perform their own calibration to meet specific application requirements.

This sensor supports a minimum supply voltage of 1.5V and a maximum supply voltage of 12V, ensuring compatibility with a broad range of electronic systems. It operates accurately within ±0.25% and accommodates pressures from -5 in/H2O to 2 in/H2O, making it suitable for sensitive differential pressure measurement tasks.

The device features dual radial barbless ports on the same side, facilitating easy connection and integration in compact setups. It operates reliably in ambient temperatures ranging from -40°C up to 85°C, making it suitable for various industrial and laboratory environments.

Dimensionally compact, with a length of 9.91 mm and height of 6.51 mm, the sensor can be mounted easily on printed circuit boards using its through hole DIP package. It is ideal for applications in electronics, instrumentation, HVAC, and process monitoring where accurate differential pressure measurement is required.

Accurate pressure sensing with ±0.25% precision. Wide operating pressure and temperature ranges for diverse environments. Flexible calibration due to uncompensated, unamplified output. Compact through hole DIP package design for easy PCB mounting.

Dual radial barbless ports enhance integration flexibility. Suitable for industrial, laboratory, and electronic components use. Explore Honeywell Pressure Sensor ICs at EnvMart for advanced sensing solutions tailored to modern industrial and technological demands.
